2. Long service life, anti-aging, and corrosion resistance
3. Simple installation, no fire, power outage construction time is short
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RUBNS-OLC
-
Color:
-
green, red, yellow
Quick Details
-
Material:
-
PE
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Volsun
-
Model Number:
-
RUBNS-OLC
-
Color:
-
green, red, yellow
Product Description

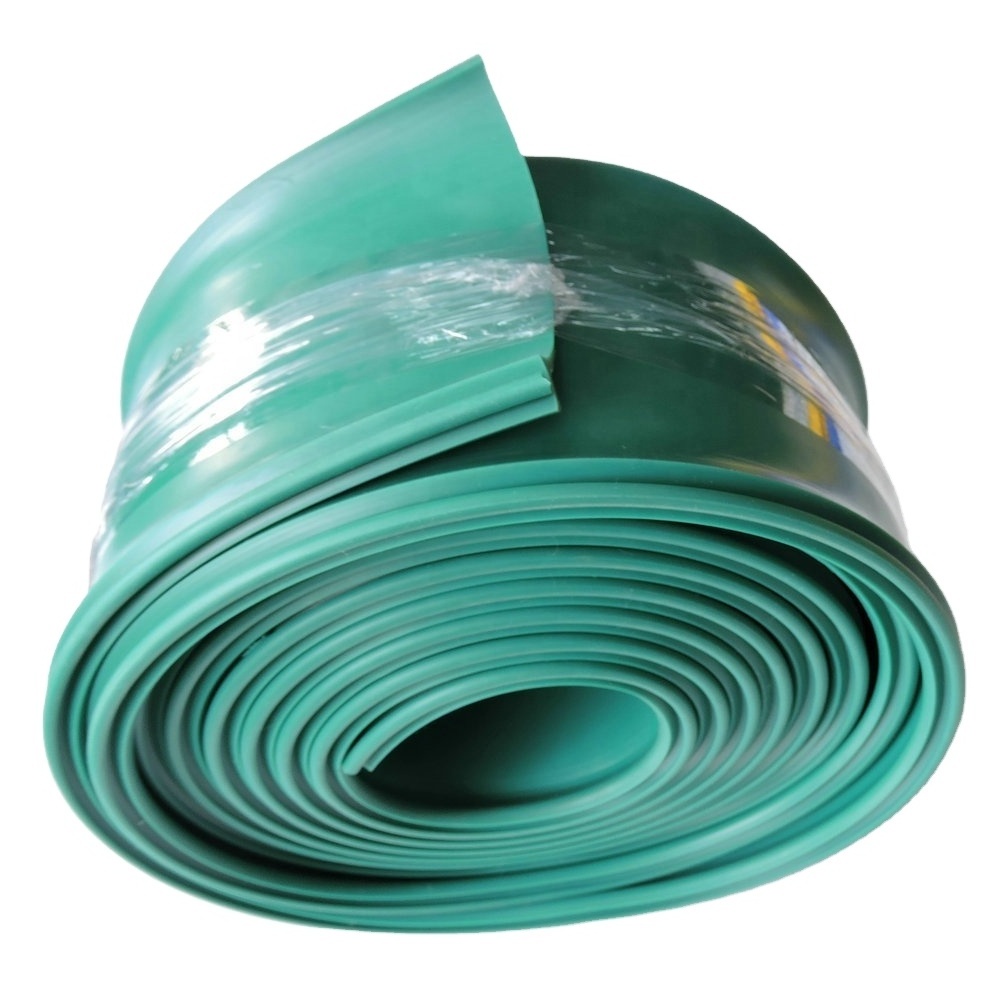

RUBNS-OLC Silicon Rubber Overhead Line Cover
DESCRIPTION
RUBNS-OLC The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system, a significant effect in the cross-lines.
Features:
1.
Soft and fold-resistant
2. Long service life, anti-aging, and corrosion resistance
3. Simple installation, no fire, power outage construction time is short
2. Long service life, anti-aging, and corrosion resistance
3. Simple installation, no fire, power outage construction time is short
Technical Performance
|
Properties
|
Unit
|
Standard Data
|
Test Results
|
Test Method
|
|
Electrical Strength Test
|
kV/mm
|
≥20
|
22
|
GB/T 1408.1-2006
|
|
Volume Resistivity
|
Ω·cm
|
≥1×1014
|
2×1014
|
GB/T 1410-2006
|
|
Dielectric Constant
|
|
2～3
|
2.3
|
GB/T 1409-2006
|
|
Shore Hardness
|
A
|
70±5
|
71
|
GB/T 531
|
|
Mechanical Properties
|
|
|
|
GB/T 528
|
|
Before heat ageing
|
|
|
|
|
|
Tensile Strength
|
MPa
|
≥4.0
|
5.5
|
|
|
Elongation at break
|
%
|
≥200
|
243
|
|
|
After Heat ageing(180℃, 7d)
|
%
|
±30
|
13
|
|
|
Tensile Strength Change(180℃, 7d)
|
%
|
±30
|
-22
|
|
|
Elongation Change
|
%
|
±30
|
-22
|
|
|
Low Temperature Elongation(-15℃, 2h)
|
%
|
≥20
|
190
|
GB/T 2951.4-1997
|
|
Low Temperature Flexibility(-50℃, 4h)
|
-
|
No cracks
|
No cracks
|
UL224-2004
|
|
High Temperature Crack Resistance(155℃, 2h)
|
-
|
No cracks
|
No cracks
|
GB/T2951.6-1997
|
Dimensions
|
LG tranded Wire Cross-sectional Area(mm2)
|
Silicone Rubber Sleeving Covers Models(mm)
|
|
50～70
|
Ф12
|
|
95～120
|
Ф17
|
|
150～185
|
Ф20
|
|
210～300
|
Ф24.2
|
|
400
|
Ф30
|
|
500
|
Ф32
|
|
630
|
Ф35
|
|
800
|
Ф39.8
|
|
LGJ、LGJF tranded Wire Cross-sectional Area(mm2)
|
Silicone Rubber Sleeving Covers Models(mm)
|
|
35
|
Ф12
|
|
50
|
Ф15.6
|
|
70～95
|
Ф17
|
|
120～150
|
Ф20
|
|
185～240
|
Ф24.2
|
|
400～500
|
Ф32
|
|
800～800
|
Ф39.8
|
Size is available to customize
Company Show
Suzhou Volsun Electronics Technology Co.,Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 17 years.
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications.
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication,Automobile, Power industry etc.
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications.
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication,Automobile, Power industry etc.
Packing & Delivery
|
Trade terms
|
FOB, EXW, CIF, DDU, DDP, CFR
|
|
Payment terms
|
T/T, L/C, Negotiable
|
|
MOQ
|
1
|
|
Supply capability
|
1,000,000 mts per month
|
|
Lead time
|
usually 2-3 working days
|
|
Shipment
|
Express, Air, Sea
|
|
Port
|
Shanghai, Ningbo, Shenzhen
|
|
Sample availability
|
Yes
|
|
Sample time
|
usually 1-2 days
|
|
Packaging
|
Normal: Plastic bag & Carton & Pallet
Special: Customized packing |
