Quick Details
-
Warranty:
-
12Years, 12years
-
Brand Name:
-
Lisai
-
Model Number:
-
LS72M410W
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
2002*1002*35mm
-
Application:
-
Solar Power System
-
Cell Type:
-
Monocrystalline Silicon Cells
-
Product name:
-
Mono Solar Panel 410w
-
Color:
-
Black
-
Weight:
-
23kg
-
Frame:
-
Anodized Aluminium Alloy
-
Max. Power:
-
410W
-
Dimension:
-
2070*1052*35mm
-
Certificate:
-
TUV
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, N-TYPE
-
Panel Efficiency:
-
20.44%
-
Warranty:
-
12Years, 12years
-
Brand Name:
-
Lisai
-
Model Number:
-
LS72M410W
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
2002*1002*35mm
-
Application:
-
Solar Power System
-
Cell Type:
-
Monocrystalline Silicon Cells
-
Product name:
-
Mono Solar Panel 410w
-
Color:
-
Black
-
Weight:
-
23kg
-
Frame:
-
Anodized Aluminium Alloy
-
Max. Power:
-
410W
-
Dimension:
-
2070*1052*35mm
-
Certificate:
-
TUV

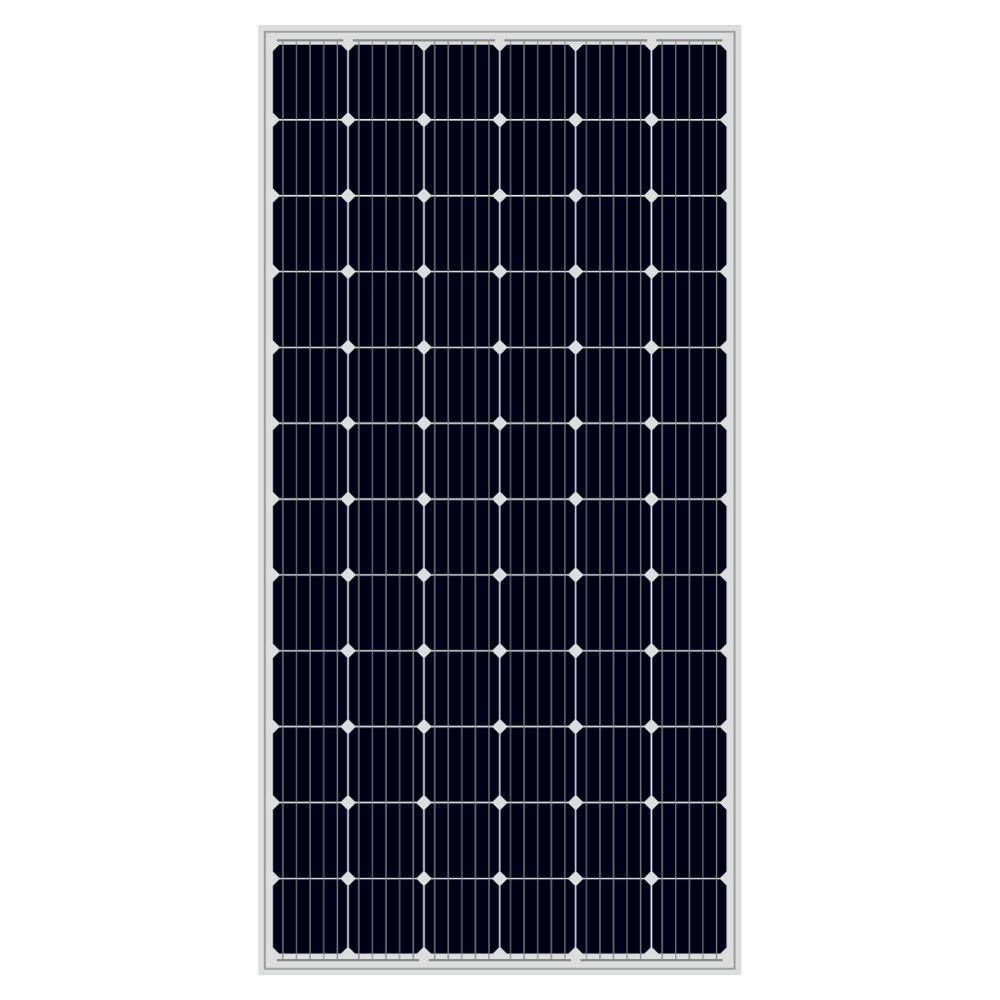

Mono Panneaux Solair 405w 410wp Solar Module JA Longi 410w PV Panels
ELECTRICAL CHARACTERISTICS AT STC
| Nominal Power(Pmax/) | 370W | 375W | 380W | 390W | 395W | 400w | 405W | 410W |
| Open Circuit Voltage(Voc) | 48.1V | 48.3V | 48.6V | 50.1V | 50.4V | 50.6V | 50.9V | 51.6V |
| Short Circuit Current(Isc) | 9.81A | 9.90A | 9.98A | 9.92A | 9.99A | 10.07A | 10.15A | 10.13A |
| Voltage at Nominal Power(Vmp) | 39.40V | 39.6V | 39.8V | 41.1V | 41.3V | 41.5V | 41.5V | 42.3V |
| Current at Nominal Power(Imp) | 9.39A | 9.47A | 9.55A | 9.49A | 9.56A | 9.64A | 9.71A | 9.69A |
| Module Efficiency(%) | 19.07% | 19.33% | 19.58% | 19.44% | 19.69% | 19.94% | 20.19% | 20.44% |
| Operating Temperature | -40ºC to +85ºC | |||||||
| Maximum System Voltage | 1000VDC (IEC) | |||||||
| Fire Resistance Rating | Type1(in accordance with 1703)/ Class C(IEC61730) | |||||||
| Maximum Series Fuse Rating | 20A | |||||||
Detail Images
1. Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
2. EVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells
From Vibration With Longer Durability
3. Solar Cells
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
4. Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
5. Jution Box,cables& MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
