Quick Details
-
Voltage:
-
380V-440V, 380V
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
N/A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BH
-
Model Number:
-
800C
-
Warranty:
-
1 years, One year
-
Color:
-
Optional
-
Heating system:
-
Diesel
-
Certificate:
-
CE Certificate
-
Brand:
-
Baohua
-
Product name:
-
Spray booth
-
Inner size:
-
6900*4000*2800
Quick Details
-
Power:
-
20kw, 20KW
-
External Size:
-
7000*5560*3610
-
Internal Size:
-
6900*4000*2800
-
Voltage:
-
380V-440V, 380V
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
N/A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BH
-
Model Number:
-
800C
-
Warranty:
-
1 years, One year
-
Color:
-
Optional
-
Heating system:
-
Diesel
-
Certificate:
-
CE Certificate
-
Brand:
-
Baohua
-
Product name:
-
Spray booth
-
Inner size:
-
6900*4000*2800

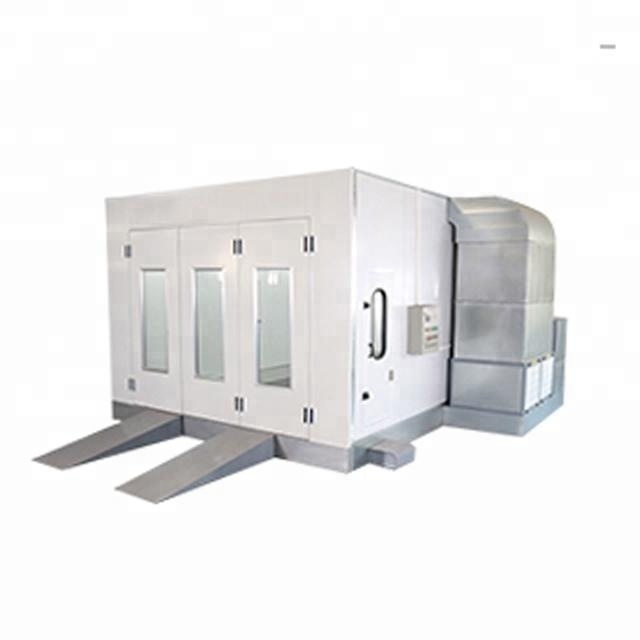

Baohua Spray Booth
We hereby Global Recruitment agents
Should any meet your interest, Please MAIL us.
Configuration Table
|
Model |
5010 |
|
Booth Dimensions |
|
|
Internal Size(L×B×H) |
6900 x 39 00 x 2630 mm |
|
External Size(L×B×H) |
7000 x 5120 x3330mm |
|
Foundation and Floor |
|
|
Loading Capacity of Galvanized Grating |
700Kg/ each wheel |
|
Surface Area of Rear Exhaust Box |
27.6M² Full grille |
|
Metal Basement |
350mm galvanize high metal basement |
|
Drive-in Ramps |
3 roll of 200* 1030 mm uphill stage,galvanize diamond plate |
|
Wall and Door |
|
|
Steel Wall |
Composite rock wool sandwich panel |
|
Roof Panal |
Anti-flame and heat-insulation, galvanized steel roof panel . |
|
3Folded Entrance Door With Safety GlassWindow |
3 Unit , 3200x2700 mm ( B x H ) |
|
Operator’s Door With Safety Glass Window |
1unit , 800x2000mm ( B x H ) |
|
M oveable hanger |
3M moveable system, special for spare parts painting.Power:3*1.1kw |
|
Lighting |
|
|
Ceiling Lightings |
8 group , each group 4 x 36 W , Total 1152W |
|
Side Lightings |
8 Group,each group 2 x 36 W , Total 576W |
|
Brightness |
≥ 100 0 LUX |
|
Filtration |
|
|
Prefilters |
G4 level + F7 belt press filtration |
|
Ceiling Filters |
EU5 high efficiency filters |
|
Exhaust Filters |
Glass fiber cotton barrier filter |
|
Ventilation System |
|
|
Direct Drive Motor (Fresh Air) |
1×7.5 kW, 970rpm, 380V, 50Hz , SIEMENS motor, German Reiz draught fan CE Certification |
|
Direct Drive Motor (Exhaust Air) |
2*4kw kW, 970rpm, 380V, 50Hz SIEMENS motor, German Reiz draught fan CE Certification |
|
duct configuration |
Total 5 section Exhaust Tube. |
|
Paint & Spray system |
Solenoid valve & pressure shift valve control by cylinder driving * Inner Circulation & Outer circulation transform |
|
Fan Capacity |
28000 m³/h |
|
Air Flow Speed |
No-lad Air Speed: 0.23m/s , On-load Air Speed 0.25 - 0.35m/s |
|
Heating System |
Install Position:Left side |
|
Heating Exchanger |
S310 stainless steel making high pressure & heating exchanger . ( Electric / CNG heating Optional ) |
|
Heating Exchange Capacity |
215KW(2500,000Kcal/H) |
|
Max. Drying Temperature |
80 °C |
|
Heating time |
3 - 6 (from 20℃to 60℃)Max tem.80℃ |
|
Heating Type |
Italy Riello G20 Diesel Burner |
|
Control Box |
|
|
Control system |
Siemens electrical components : the main circuit is equipped with multiple protection . Equipped with light switch ,temperature, time settings, painting, spray paint, paint up thermostat gateway, fault alarm ect. |
Details
1. steel keel frame with 80kg crock wool : sound-proof and insulation .
2. thickening toughened glass : shock resistance , and heat resistance .
3. door hinge adopt high-strength steel . The strength of the bolt is: 12 level .
4.anti-rust durable and skid resistance.
5. basement: 350mm(height) , inside have 40mm lead wind board.
6. steel keel frame with 80kg crock wool ,equipped with spring pressure lock
7.Siemens electrical components
8.anti-explosion fan , Large blade : Siemens high efficiency motor , German Reitz fan blade
9. with high strength steel plate with rock wool : sound-proof .
10. circuits of light :European design with exposed steel constitution ,simpler and easier installation of maintenance.
11. steel board with rock wool. With good temperature reservation
12. European design , unique air intake room , have good air intake flow .
13. with big air-admitting surface .
Heating system :Each group can independently controlled.
Equipped with safety protection system, when close the door of each group , the system automatically shut off power .
Lighting system :
Omron brand lamp. With stain steel less reflector lamp row.
