Quick Details
-
Brand Name:
-
GTRIC
-
Theory:
-
self-induction
-
Output:
-
NO/NC
-
Description:
-
capacitive sensor
-
Function:
-
Standard
-
Sensing distance:
-
5mm/10mm
-

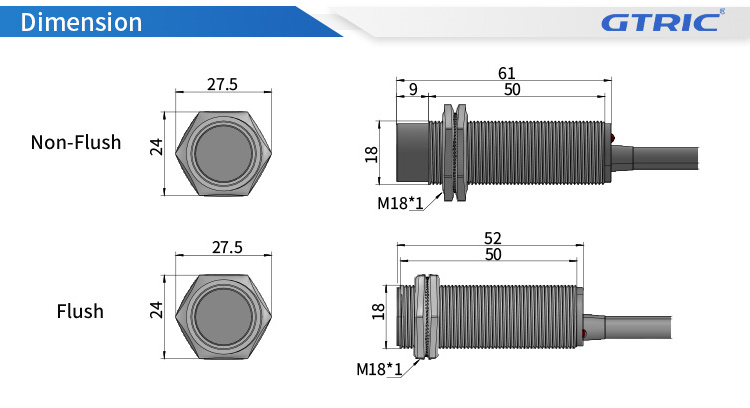

Mounting:
-
Non-flush/Flush
-
Assured distance:
-
0-5mm/0-10mm
-
Standard targe:
-
Ground metal plate 50*50*1mm
-
Residual voltage:
-
≤2.5V
-
Supply voltage:
-
90-250VDC 2 Wires
-
Switching frequency:
-
25Hz
-
Protection degree:
-
IP 65
-
Connection:
-
2m PVC Cable
Quick Details
-
Use:
-
positioning
-
Model Number:
-
CR18-10A1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GTRIC
-
Theory:
-
self-induction
-
Output:
-
NO/NC
-
Description:
-
capacitive sensor
-
Function:
-
Standard
-
Sensing distance:
-
5mm/10mm
-
Mounting:
-
Non-flush/Flush
-
Assured distance:
-
0-5mm/0-10mm
-
Standard targe:
-
Ground metal plate 50*50*1mm
-
Residual voltage:
-
≤2.5V
-
Supply voltage:
-
90-250VDC 2 Wires
-
Switching frequency:
-
25Hz
-
Protection degree:
-
IP 65
-
Connection:
-
2m PVC Cable
|
Specififications
|
|
|
|
|||
|

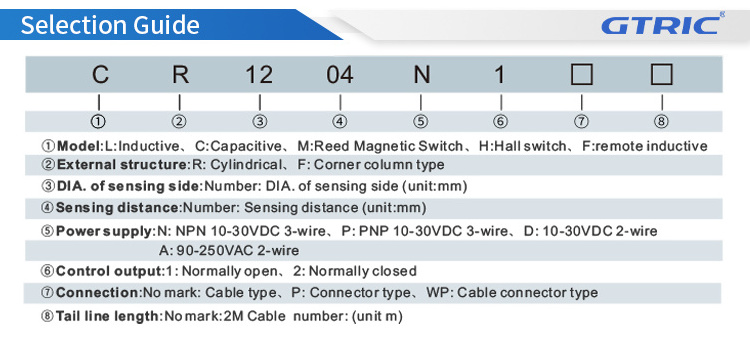

MODEL
|
DC3-wireNPN.NO
|
CR18-05N1
|
CR18-10N1
|
|||
|
|
DC3-wireNPN.NC
|
CR18-05N2
|
CR18-10N2
|
|||
|
|
NPN.NO+NC
|
CR18-05N3
|
CR18-10N3
|
|||
|
|
DC3-wirePNP.NO
|
CR18-05P1
|
CR18-10P1
|
|||
|
|
DC3-wirePNP.NC
|
CR18-05P2
|
CR18-10P2
|
|||
|
|
PNP.NO+NC
|
CR18-05P3
|
CR18-10P3
|
|||
|
|
AC2-wire NO
|
CR18-05A1
|
CR18-10PA1
|
|||
|
|
AC2-wire NC
|
CR18-05A2
|
CR18-10PA2
|
|||
|
|
AC3-wire NO+NC
|
CR18-05A3
|
CR18-10PA3
|
|||
|
Sensingdistance
|
|
5mm±20%
|
10mm±20%
|
|||
|
Hysteresis
|
|
≤20%
|
≤20%
|
|||
|
Detect objects
|
|
Conductors and Dielectrics
|
|
|||
|
Standardsensingtarget
|
|
Ground metal plate 50*50*1mm
|
|
|||
|
Supplyvoltage
|
|
DC:10-30VDC
|
|
|||
|
Response frequency(F)
|
|
500Hz（DC）25Hz (AC)
|
|
|||
|
Load current
|
|
200mA
|
|
|||
|
Voltagedrop
|
|
≤2.5V
|
|
|||
|
Circuitprotection
|
|
Short-circuit,overload,reversepolarityprotection
|
|
|||
|
Outputindicator
|
|
Red LED
|
|
|||
|
Ambienttemperature
|
|
-20~+70℃
|
|
|||
|
Shock
|
|
500m/s(50G)ineachX,Y,Z directionfor 3 times
|
|
|||
|
Vibration
|
|
1mm amplitudeatfre quenc y10~55Hz(for1min）
ineach X.Y.Z direction for 2hours
|
|
|||
|
Protectiondegree
|
|
IP65
|
|
|||
|
Connection
|
|
2m PVC cable
|
|
|||
|
Meterial
|
|
Nickel-copperalloy
|
|
|||
|
Sensingside
|
|
PBT
|
|
|||
About Us
Wenzhou Gtric Technology Co., Ltd. is located in Yueqing IoT sensors Park, which covers 5,000 square meters, with over 100 employees. We are focuses on intelligent manufacturing and industrial automation, our main businesses are sensors, encoders, button switch, coupling, expansion set and other industrial automation products, providing standard and individual products and solutions for customers.
Our products cover over 20 series, 1000specificatison, which have passed CCC, CE, UL, ISO9001 certification as well as EU RoHS Environmental Directives. Based on our technical advantages, Gtric can provide industrial automation solution according to customers’ requirements.
Q: Can I customize a special sensor?
A: Sure, we also offer customized services.
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quatation.
Q: If I need a sample for pretest, do you sale sample for this inquiry?
A: Yes, we can sale sample for pretest. If you need, please contact us.
Q : When will you ship my order?
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
