Quick Details
-
Product name:
-
Fire Hose
-
Certificate:
-
CCCF /ISO9001/ISO14001/ISO45001
-
Working Pressure:
-
16bar
-
Color:
-
Red
-
Test Pressure:
-
30bar(435 psi)
-
Material:
-
Cast Iron to BS 1452
-
Inlet:
-
4inch/6inch
-

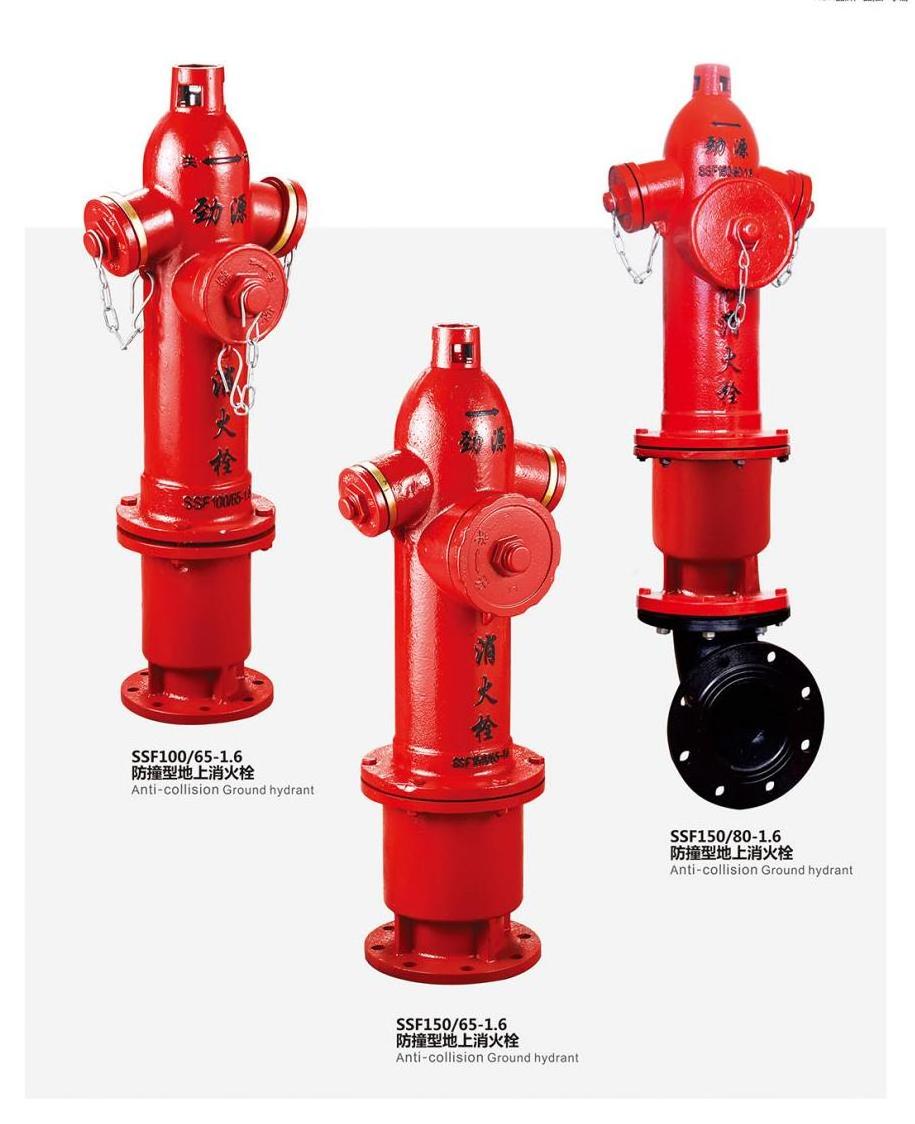

Fire Hydrant Type:
-
Outdoor Ground Fire Hydrant
-
Application:
-
Clean water
-
Packing:
-
Wooden Pallet
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Jinyuan
-
Model Number:
-
Hydrant
-
Product name:
-
Fire Hose
-
Certificate:
-
CCCF /ISO9001/ISO14001/ISO45001
-
Working Pressure:
-
16bar
-
Color:
-
Red
-
Test Pressure:
-
30bar(435 psi)
-
Material:
-
Cast Iron to BS 1452
-
Inlet:
-
4inch/6inch
-
Fire Hydrant Type:
-
Outdoor Ground Fire Hydrant
-
Application:
-
Clean water
-
Packing:
-
Wooden Pallet
Specification
|
Technical Parameter
|
|
|
|
|
||||
|
Body Material
|
Cast Iron to BS 1452
|
|
|
|
||||
|
Working pressure
|
1.6Mpa
|
|
|
|
||||
|
Test Pressure
|
3.0Mpa（435 psi）
|
|
|
|
||||
|
Inlet
|
4Inch
|
|
|
|
||||
|
Color
|
Red & Yellow Epoxy Coated
|
|
|
|
||||
|
Product Keywords
|
Ground hydrant
|
|
|
|
||||
|
Applicable Medium
|
Clean water
|
|
|
|
||||
Product Description
INSTALL AND USE
1.It must be designed and installed in accordance with the "Water Supply and Drainage Standard Atlas"of the State Construction Commission.Inactual installation,connect the hydrant flange elbow to the underground pipe as needed,or remove the flange elbow and install it directly on the pipe tee;
2.The installation height should be where the fire hydrant red paint is partially exposed to the ground.If it does not affect the traffic,it should beplaced in a prominent place.The main water outlet should face the road;
3.The silt and debris in the elbow of the fire hydrant must be removed before installation;
4.When in use,use a special wrench to open the plug of the water outlet,connect the hose or suction pipe,and then use the special wrench to openthe valve flap to start water supply.After use,the valve disc should be closed,and the water outlet should be closed.
Packing & Delivery
PP bags or cartons. They would be packed by carton or polybay or according to customer's requirement.
