Quick Details
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.20(1000C)
-
Width:
-
10-150mm
-
Length:
-
30000mm
-
Shrinkage (1800℉, 3h):
-
3%~3.5%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robert
-
Model Number:
-
ROBERT-Ceramic Fiber Tape
-
Thickness:
-
2/2.5/3/5/6/8/10mm
-
Reinforcement:
-
Glass Fiber/Stainless Steel
-
Package:
-
Woven Bag
-
Sample:
-
Available
-
Shipping Port:
-
Qingdao/Tianjin/Shanghai
-
Al2O3(%):
-
46.60%
-
Al2O3+Sio2:
-
99.40%
-
Classification Temperature(℃):
-
1260℃
-
Melting Point(℃):
-
1760℃
-
Color:
-
Pure White
Quick Details
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.03~0.05
-
Working Temperature:
-
1050~1400℃
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.20(1000C)
-
Width:
-
10-150mm
-
Length:
-
30000mm
-
Shrinkage (1800℉, 3h):
-
3%~3.5%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robert
-
Model Number:
-
ROBERT-Ceramic Fiber Tape
-
Thickness:
-
2/2.5/3/5/6/8/10mm
-
Reinforcement:
-
Glass Fiber/Stainless Steel
-
Package:
-
Woven Bag
-
Sample:
-
Available
-
Shipping Port:
-
Qingdao/Tianjin/Shanghai
-
Al2O3(%):
-
46.60%
-
Al2O3+Sio2:
-
99.40%
-
Classification Temperature(℃):
-
1260℃
-
Melting Point(℃):
-
1760℃
-
Color:
-
Pure White
Product Description
Ceramic fiber textiles
include yarn, cloth, tape, twisted ropes, packing and other products. They are made of ceramic fiber cotton, alkali-free glass filament or high-temperature resistant stainless steel alloy wire through special processes.
Classification:
Stainless steel wire reinforced/Glass filament reinforced ceramic fiber
Features
1. No asbestos
2. Low thermal conductivity, low heat storage, heat shock resistance
3. High temperature resistance, chemical corrosion resistance
4. Easy to construct
5. High mechanical strength
Details Images
Ceramic Fiber Yarn
Ceramic Fiber Cloth

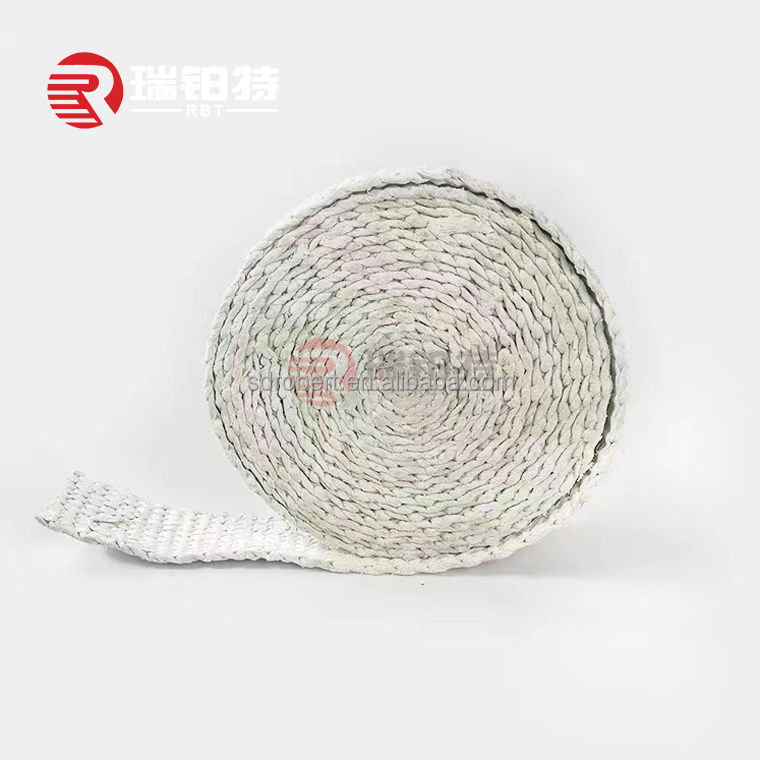

Ceramic Fiber Tape
Ceramic Fiber Rope
Ceramic Fiber Packing
Creamic Fiber Sleeve
Product Index
|
INDEX
|
Stainless Steel Wire Reinforced
|
Glass Filament Reinforced
|
||
|
Classification Temperature(℃)
|
1260
|
1260
|
||
|
Melting Point(℃)
|
1760
|
1760
|
||
|
Bulk Density(kg/m3)
|
350-600
|
350-600
|
||
|
Thermal Conductivity(W/m.k)
|
0.17
|
0.17
|
||
|
Lgnition Loss(%)
|
5-10
|
5-10
|
||
|
Chemical Composition
|
|
|
||
|
Al2O3(%)
|
46.6
|
46.6
|
||
|
Al2O3+Sio2
|
99.4
|
99.4
|
||
|
Standard Size(mm)
|
|
|
||
|
Fiber Cloth
|
Width: 1000-1500, Thickness: 2,3,5,6
|
|
||
|
Fiber Tape
|
Width: 10-150, Thickness: 2,2.5,3,5,6,8,10
|
|
||
|
Fiber Twisted Rope
|
Diameter: 3,4,5,6,8,10,12,14,15,16,18,20,25,30,35,40,50
|
|
||
|
Fiber Round Rope
|
Diameter: 5,6,8,10,12,14,15,16,18,20,25,30,35,40,45,50
|
|
||
|
Fiber Square Rope
|
5*5,6*6,8*8,10*10,12*12,14*14,15*15,16*16,18*18,20*20,25*25,
30*30,35*35,40*40,45*45,50*50
|
|
||
|
Fiber Sleeve
|
Diameter: 10,12,14,15,16,18,20,25mm
|
|
||
|
Fiber Yarn
|
Tex: 330,420,525,630,700,830,1000,2000,2500
|
|
||
Applications
1. Sealing and heat insulation of various high-temperature furnaces and boilers;
2. Fire and high temperature insulation curtain;
3. Heat insulation and sealing of kiln flue;
4. High temperature valve and pump seal;
5. Sealing of burners and heat exchangers;
6. High temperature resistant insulated wire and cable surface wrap;
7. Sealing of furnace door and furnace car; Surface wrapping of high temperature pipes.
