Quick Details
-
Brand Name:
-
xingcha
-
Fork Length:
-
1220mm
-
Fork Width:
-
100
-
Overall Dimensions:
-
2350
-
Weight (KG):
-
2600 kg
-

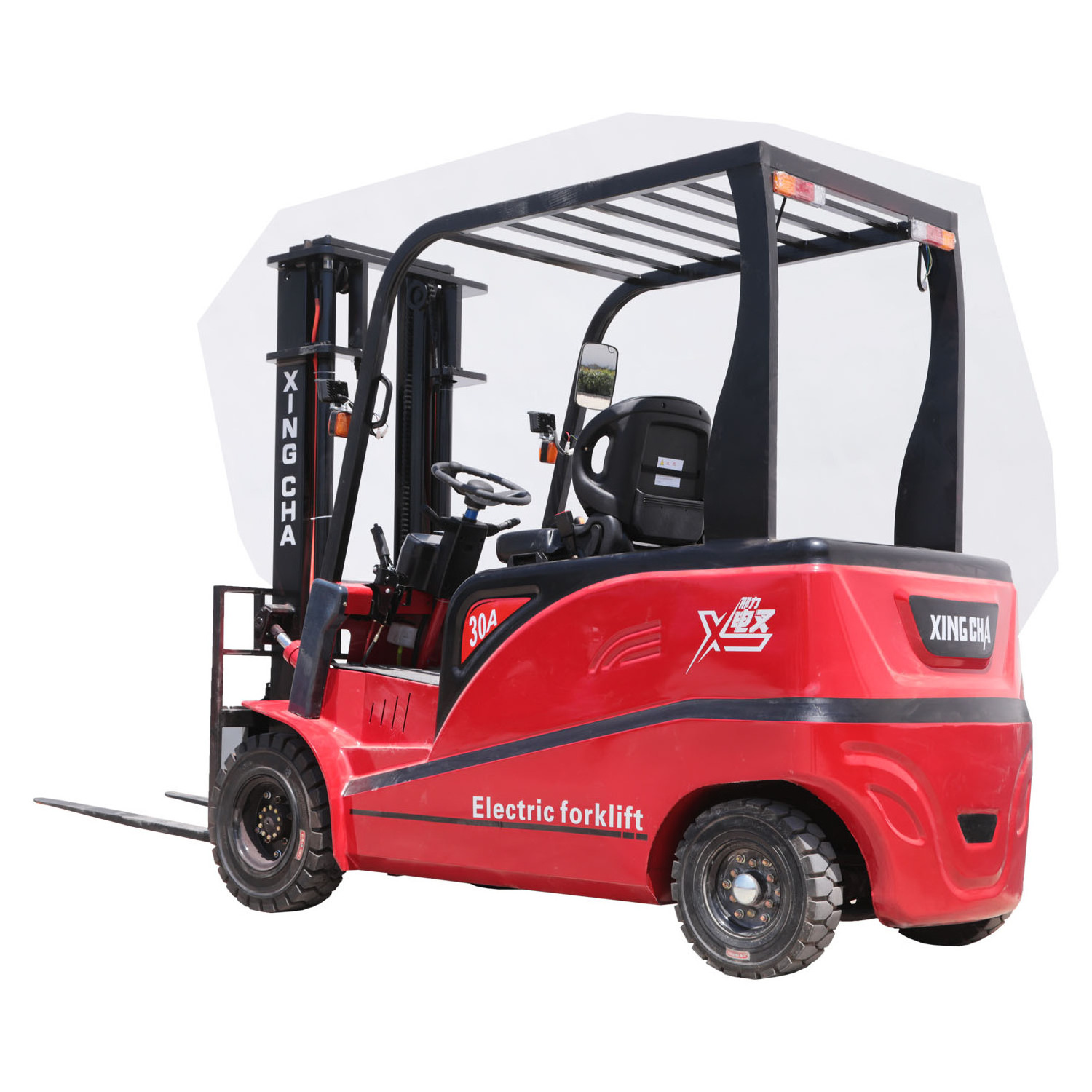

Product Name:
-
Electric Forklift
-
Customizable:
-
Colour
-
Model:
-
CPD
-
Tire Type:
-
Solid Tire
-
Fork Type:
-
Forging Fork
Quick Details
-
Min. Lifting Height:
-
100
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
xingcha
-
Fork Length:
-
1220mm
-
Fork Width:
-
100
-
Overall Dimensions:
-
2350
-
Weight (KG):
-
2600 kg
-
Product Name:
-
Electric Forklift
-
Customizable:
-
Colour
-
Model:
-
CPD
-
Tire Type:
-
Solid Tire
-
Fork Type:
-
Forging Fork
Products Description
Details Images
Product Paramenters
|
model
|
CPD-20
|
CPD-30
|
CPD-40
|
CPD-50
|
|
Rated lifting weight
|
2000kg
|
3000kg
|
4000kg
|
5000kg
|
|
Load center distance
|
500mm
|
500mm
|
500mm
|
500mm
|
|
Dynamic way
|
battery
|
battery
|
battery
|
battery
|
|
Driving way
|
Car type
|
Car type
|
Car type
|
Car type
|
|
The wheelbase
|
1430mm
|
1480mm
|
1550mm
|
1550mm
|
|
Tire type
|
Elastic solid tire
|
Elastic solid tire
|
Elastic solid tire
|
Elastic solid tire
|
|
Number of wheels (front/rear)
|
2/2
|
2/2
|
2/2
|
2/2
|
|
Before the wheel track
|
1050mm
|
1050mm
|
1050mm
|
1050mm
|
|
After the wheel track
|
950mm
|
950mm
|
950mm
|
950mm
|
|
Height of door frame when retracting
|
2150mm
|
2150mm
|
2150mm
|
2200mm
|
|
Maximum lifting height
|
3000mm
|
3000mm
|
3000mm
|
3000mm
|
|
Maximum height during operation
|
4100mm
|
4100mm
|
4100mm
|
4200mm
|
|
Height of roof guard
|
2020mm
|
2020mm
|
2020mm
|
2100mm
|
|
The goods fork length
|
1220mm
|
1220mm
|
1220mm
|
1220mm
|
|
Body length (excluding fork)
|
2200mm
|
2450mm
|
2750mm
|
3250mm
|
|
Body width
|
1200mm
|
1200mm
|
1200mm
|
1250mm
|
|
Turning radius
|
2300mm
|
2500mm
|
2800mm
|
3300mm
|
|
Minimum ground clearance
|
150mm
|
150mm
|
150mm
|
150mm
|
|
The whole weight of
|
2800kg
|
3500kg
|
4700kg
|
5700kg
|
|
Drive motor
|
5.5KW
|
8.5KW
|
13.5KW
|
16.5KW
|
|
The oil pump motor
|
5.5KW
|
8.5KW
|
13.5KW
|
16.5KW
|
|
Drive motor control mode
|
AC
|
AC
|
AC
|
AC
|
|
Oil pump motor control mode
|
AC
|
AC
|
AC
|
AC
|
|
Turned to the way
|
Hydraulic booster
|
Hydraulic booster
|
Hydraulic booster
|
Hydraulic booster
|
