Quick Details
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
600*300
-
Year:
-
new
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HMSK
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2080*1850*2195
-
Weight (KG):
-
2210
-
Power (kW):
-
4
-
Type:
-
Surface Grinding Machine
-
After-sales Service Provided:
-
Engineers Available to Service Machinery Overseas
-
Accuracy:
-
High precision
-
Grinding machine price:
-
M1224AHD Surface grinding machine with tool cutter
-
Distance from table to spindle center:
-
520mm
-
Grind Wheel Size:
-
355*40*127mm
-
Spindle speed:
-
50Hz: 1450rpm
-
Spindle Motor:
-
4kw
-
Hydraulic Motor:
-
1.5kw
-
Color:
-
Customizable
Quick Details
-
Grinding Length(mm):
-
520
-
Table Travel (X) (mm):
-
660
-
Table Travel (Y) (mm):
-
300
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
600*300
-
Year:
-
new
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HMSK
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2080*1850*2195
-
Weight (KG):
-
2210
-
Power (kW):
-
4
-
Type:
-
Surface Grinding Machine
-
After-sales Service Provided:
-
Engineers Available to Service Machinery Overseas
-
Accuracy:
-
High precision
-
Grinding machine price:
-
M1224AHD Surface grinding machine with tool cutter
-
Distance from table to spindle center:
-
520mm
-
Grind Wheel Size:
-
355*40*127mm
-
Spindle speed:
-
50Hz: 1450rpm
-
Spindle Motor:
-
4kw
-
Hydraulic Motor:
-
1.5kw
-
Color:
-
Customizable
Related Products
Products Description

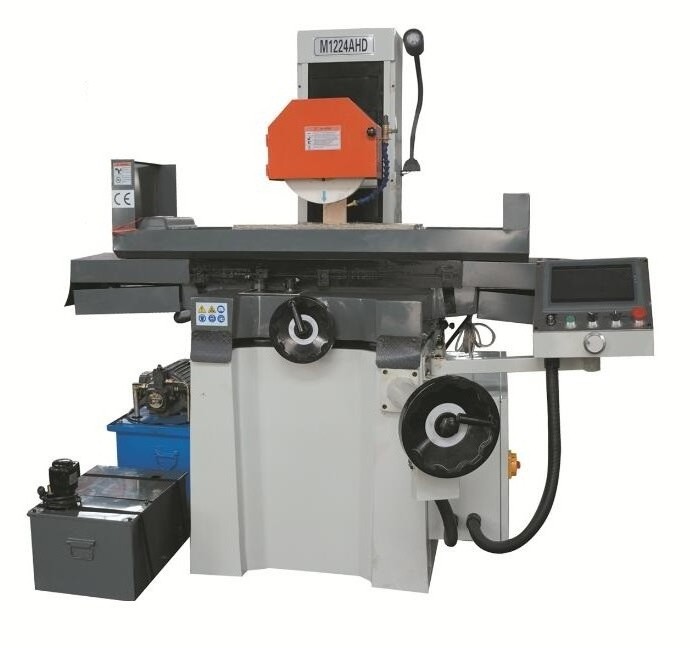

Automatic cnc surface grinding machine M1224AHD
1.X axis is Hydraulic (Cross).
2.Y axis is electrical (Longitudinal).
3.Z axis is PLC control,servo motor.
3.Z axis is PLC control,servo motor.
|
Specification
|
UNIT
|
M1224AHD
|
|
Worktable Size (L×W)
|
mm
|
600×300
|
|
Max. Longitudinal table travel
|
mm
|
660
|
|
Max. Cross table travel
|
mm
|
340
|
|
Distance between spindle center and table surface
|
mm
|
520
|
|
Worktable max. loading
|
kg
|
420
|
|
T-Solt ( Number×Width )
|
|
1×14
|
|
Worktable speed
|
m/min
|
5-25
|
|
Crossfeed Handwheel
|
mm/gard
|
0.02
|
|
Crossfeed Handwheel
|
mm/rev
|
5
|
|
Automatic Crossfeed of Saddle
|
mm
|
0.5-12
|
|
Power Cross Feed
|
mm/min
|
50Hz: 790
|
|
Power Cross Feed
|
|
60Hz: 950
|
|
Grinding Wheel Dimensions
|
mm
|
355×40×127
|
|
Spindle Speed
|
rpm
|
50Hz: 1450rpm
|
|
Spindle Speed
|
|
60Hz: 1740rpm
|
|
Vertical Handwheel
|
mm/gard
|
0.001
|
|
Vertical Handwheel
|
mm/rev
|
0.5
|
|
Automatic Down Feed Rate
|
mm
|
0.005-0.025
|
|
Power head increment
|
mm/min
|
230
|
|
Spindle Motor
|
kw
|
4
|
|
Vertical Motor
|
w
|
90
|
|
Hydraulic Motor
|
kw
|
1.5
|
|
Dust Collection Motor
|
w
|
550
|
|
Coolant Motor
|
w
|
90
|
|
Crossfeed Motor
|
w
|
90
|
|
Packing Dimensions (L×W×H)
|
mm
|
2080×1850×2195
|
|
Net Weigth
|
kg
|
1910
|
|
Gross Weigth
|
kg
|
2210
|
