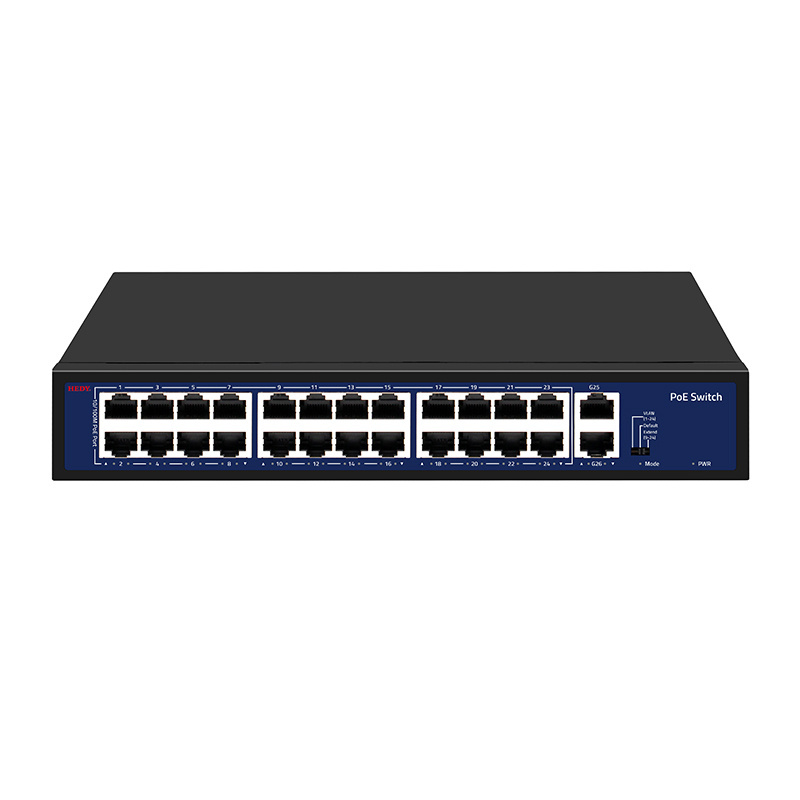

Quick Details
-
Brand Name:
-
HEDY
-
Model Number:
-
HN24H2G-300
-
Place of Origin:
-
China
-
port:
-
24+2 ports
-
PoE Power Budget:
-
300
-
Network Protocol:
-
IEEE802.3i/802.3u/802.3x/802.3ab
-
Packet Forwarding Rate:
-
Down-link: 0.1488Mpps/port; Up-link: 1.488Mpps/port
-
Forwarding Mode:
-
Store-and-forward
-
MAC Address Table:
-
2k
-
PoE Standard:
-
IEEE802.3af, IEEE802.3at
-
PoE Power Supply:
-
1/2(+),3/6(-)
-
Transmission Distance:
-
0-100m/100Mbps; Max. 250m/10Mbps
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
8.8 Gbps
-
Brand Name:
-
HEDY
-
Model Number:
-
HN24H2G-300
-
Place of Origin:
-
China
-
port:
-
24+2 ports
-
PoE Power Budget:
-
300
-
Network Protocol:
-
IEEE802.3i/802.3u/802.3x/802.3ab
-
Packet Forwarding Rate:
-
Down-link: 0.1488Mpps/port; Up-link: 1.488Mpps/port
-
Forwarding Mode:
-
Store-and-forward
-
MAC Address Table:
-
2k
-
PoE Standard:
-
IEEE802.3af, IEEE802.3at
-
PoE Power Supply:
-
1/2(+),3/6(-)
-
Transmission Distance:
-
0-100m/100Mbps; Max. 250m/10Mbps
Products Description
|
I/O Interface
|
|
|
|
Power
|
AC 100~240V 50/60Hz
|
|
|
Ethernet
|
24*10/100M PoE Port
2*Gigabit uplink RJ45 Port |
|
|
Hardware parameters
|
|
|
|
Bandwidth
|
8.8 Gbps
|
|
|
Packet Forwarding Rate
|
6.54 Mpps
|
|
|
Packet Cache
|
1.5Mbit
|
|
|
MAC Address
|
2K
|
|
|
Forwarding Mode
|
Store and forward
|
|
|
Protocol Standards
|
|
|
|
Network Standard
|
IEEE 802.3
IEEE 802.3u IEEE 802.3ab IEEE 802.3x |
|
|
PoE Standard
|
IEEE802.3af （15.4 W）
IEEE802.3at （30 W） POE port output voltage: DC 52V POE power supply core: 1/2+; 3/6- |
|
|
Optical Medium
|
10BASE-T: Cat 3、4、5 UTP(≤100 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)) |
|
|
Environment Standard
|
|
|
|
Working Environment
|
Working Temperature：-10~50°C
Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
|
|
Indicator
|
|
|
|
Indicator
|
PWR（POWER），Mode（DIP），1-26 Green Light（Link&Data）
|
|
|
PWR
|
Lighting：Powered
Un-Light：Default（General mode） |
|
|
Mode
|
Linghting：VLAN（Port Isolation）
Un-Light：Default（General mode） Flash：Extend（Extend） |
|
|
1-26 Green
|
Lighting：Connecting
Un-Light：Disconnect Flashing：Data Transmit |
|
|
DIP
|
VLAN、Default、Extend
|
|
|
VLAN
|
Port isolation mode. In this mode, the PoE ports (1-24) of the switch cannot
communicate with each other, and can only communicate with the UP-link port. |
|
|
Default
|
OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate
is 10M / 100M adaptive; |
|
|
Extend
|
Extend : Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, the
transmission rate becomes 10M |
|
|
Physical Specification
|
|
|
|
Structure Size
|
Product Dimensions: 268*181*44mm
Package Dimensions：312*262*84mm Product N.W：1.44KG Product G.W：1.92KG |
|
|
Pakcing Infomation
|
Carton Dimensions：540*435*332mm
Packing Quantity：10 pcs Packing Weight：20.2KG |
|
|
Power Voltage
|
Input Voltage ：AC 100-240 V
Power supply： 300W |
|
|
Package List
|
Switch 1 pc, Power cord 1 pc, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair
|
|
|
Ordering infomation
|
|
|
|
HN24H2G-300
|
18 Port 10/100M PoE Switch
|
|
