Quick Details
-
Model Number:
-
E3F-DS30C4
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
custom-souring
-
Theory:
-
Photoelectric Sensorr
-
Output:
-
Photoelectric Sensor
-
Color:
-
Quality class A
Quick Details
-
Usage:
-
Photoelectric Sensor
-
Mounting Type:
-
see details
-
Description:
-
see details, Photoelectric Sensor
-
Model Number:
-
E3F-DS30C4
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
custom-souring
-
Theory:
-
Photoelectric Sensorr
-
Output:
-
Photoelectric Sensor
-
Color:
-
Quality class A

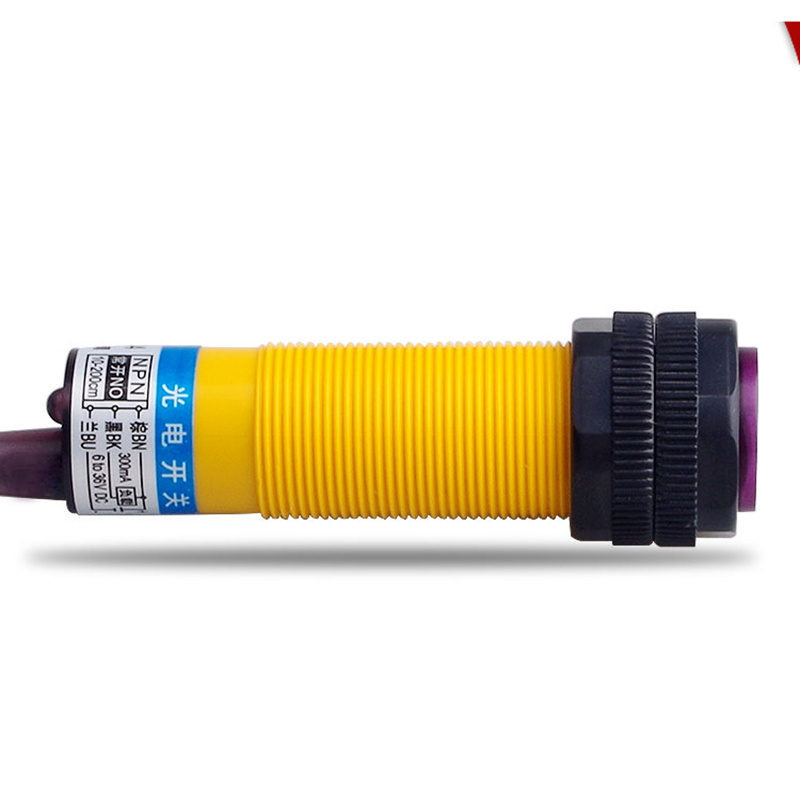

Product Description
product specification
Transistor form: NPN
Action state: normally open NO
Voltage: DC6-36V
Reflection form: Infrared diffuse reflection type
Line display: DC three-wire (brown positive; blue negative; black signal)
Sensing distance: 7-30 CM
Response time: below 2MS (milliseconds)
Standard detection object: non-transparent objects above 2MM (such as colorless glass)
Diffusion angle: projection angle: 3-5°
Current consumption per hour: <=20-35ma no load
Maximum output current: 300MA
LED indicator status: red light is on when power is on
Light source (wavelength): infrared light (950)
Circuit Protection: Reverse Polarity Protection Short Circuit Protection Surge Protection
Service life: 2 million times
Sensitivity adjustment method: Tail knob adjustment (clockwise: farther counterclockwise: closer)
Ambient illuminance: Affected by incandescent lamps on light surfaces, distance attenuation
(Incandescent lamp below 3000lx, sunlight below 11000lx)
Ambient temperature range: Working: -25~80° Storage: -40~80°
Environmental humidity range: Working: 35~80% Storage: 35~95%
Insulation resistance: 20MΩ or more
Vibration: 10~55HZ double amplitude 15MMX, YZ each direction 2H
Protection structure: IEC standard IP65
Connection method: lead-out type (wire length 1 meter 2)
Specification
