1. AI Intelligent Operating System
2. Custom Industrial Grade Print heads
3. Automatic Obstacle Avoidance for Print Heads
4. Precise Color Management System
5. Ink Stock Management System
6. Multiple language, customized System Languages
7. Extended Battery Life Function
8. Achieves 8 m
2
/h High Speed Printing
9. Achieves 2880dpi Printing Precision
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Baiketech
-
Voltage:
-
220V/380V
-
Dimensions(L*W*H):
-
70*30*260cm
-
Weight:
-
55 KG
-
Print resolution:
-
360*720/720*1440/1440*2880dpi
-
Ink:
-
CMYK 4 color Water-based ink
-
Print head:
-
Single H16 print head
-
Fast printing speed:
-
8 square meter per hour(360*720pix)
-
Display screen:
-
Built-in 11.6-inch touchscreen display
-
Support picture:
-
Photos taken by mobile phone / camera and online pictures
-
Construction noise:
-
Standby<20dB, drawing<70dB
-
Nozzle Cleaning:
-
One-click automatic
-
UV lamp:
-
No
-
Ink shortage alarm:
-
YES
Quick Details
-
Print Dimension:
-
2000mm*3000mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Baiketech
-
Voltage:
-
220V/380V
-
Dimensions(L*W*H):
-
70*30*260cm
-
Weight:
-
55 KG
-
Print resolution:
-
360*720/720*1440/1440*2880dpi
-
Ink:
-
CMYK 4 color Water-based ink
-
Print head:
-
Single H16 print head
-
Fast printing speed:
-
8 square meter per hour(360*720pix)
-
Display screen:
-
Built-in 11.6-inch touchscreen display
-
Support picture:
-
Photos taken by mobile phone / camera and online pictures
-
Construction noise:
-
Standby<20dB, drawing<70dB
-
Nozzle Cleaning:
-
One-click automatic
-
UV lamp:
-
No
-
Ink shortage alarm:
-
YES

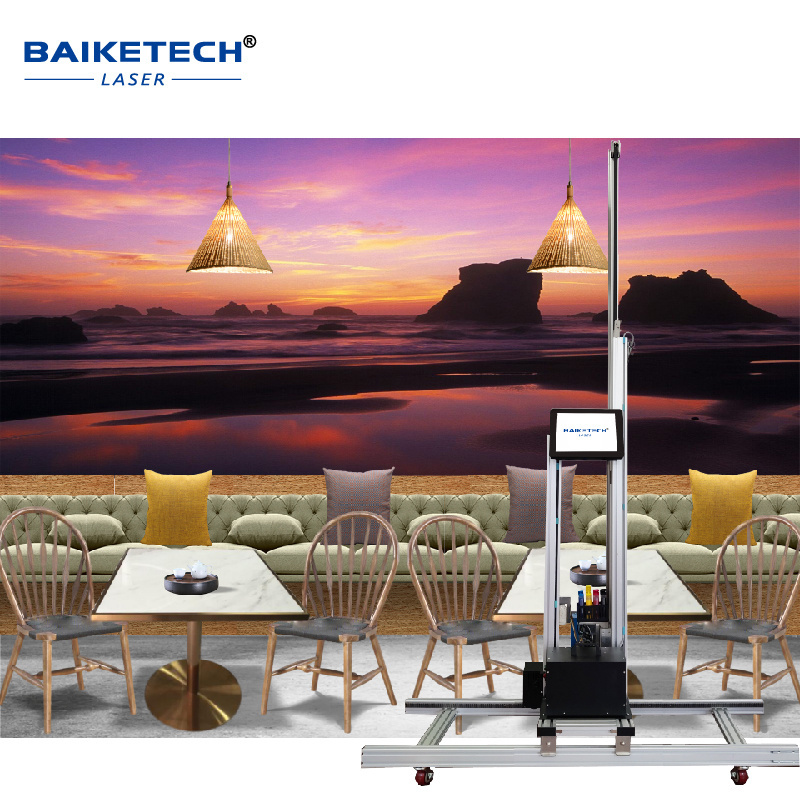

AI 3D Mural Printer Wall Painting Machine TH-GW12
9 Innovative Core Technologies
Applications
Product Parameters
|
Equipment model
|
TH-GW12
|
|
|
|
Printing software
|
Genuine professional
|
|
|
|
Use ink
|
Water-based ink
|
|
|
|
Control mode
|
Wired / wireless printing
|
|
|
|
Transportation carrying
|
Folding
|
|
|
|
Power consumption
|
No load 20W, maximum 250W
|
|
|
|
Surface tracking
|
Hyperboloid banner sensor, up-down bidirectional induction
|
|
|
|
Ink supply system
|
Positive pressure system ink supply
|
|
|
|
Print size
|
2 meters high × Any width, more than 2 m, can be seamlessly spliced
|
|
|
|
Construction noise
|
Standby < 20dBA, drawing < 70dba
|
|
|
|
Support picture
|
Photos taken by mobile phone / camera and online pictures
|
|
|
|
Power requirements
|
Household power 220VAC or 380VAC
|
|
|
|
Applicable media
|
White wall, putty wall, ceramic tile, glass, acrylic, metal plate, brick wall, etc
|
|
|
|
National film format
|
Including psd.cdr, JPG, JPEG, PNG, BMP, tiff, EPS, AI, PDF and other formats
|
|
|
|
Color painting technology
|
Micro piezoelectric jet technology, variable ink drop, high fault tolerance feathering technology, automatic memory recovery technology after construction interruption
|
|
|
|
Print Resolution
|
max 2880 dpi
|
|
|
|
Operating environment
|
-20°C-50°C(-4F-122F), 10%-70% Relative humidity, non condensing state
|
|
|
|
Storage environment
|
-21C-50°C(-22F-140°F), 10%-70% Relative humidity, non condensing state
|
|
|
|
Nozzle advantages
|
You can work all day or choose any nozzle
|
|
|
|
Certification qualification
|
Green environmental protection certification, national standard inspection qualification (gb18582-2001, gbt9756-2001), CE certification
|
|
|
|
Overall dimension
|
Machine(mm) : 700L x 300W x height 2600H
|
Package size(mm): 800L x 460W x 2700H
|
|
|
Machine weight
|
Machine 55kg (4 guide rails)
|
Packed in wooden cases, weighing 150kg
|
|
Products Description
AUTOMATIC OBSTACLE AVOIDANCE FOR PRINT HEADS
Equipped with Japanese professional print heads
Equipped with dual ultrasonic intelligent sensors automatically dectets and avoids obstacles
Prevents accidental collisions during printing
Ensures easy, smooth, and efficient printing
Extends the lifespan of print heads
4 CMYK WATER-BASED INK PRECISE COLOR MANAGEMENT SYSTEM
Use CMYK 4-color water-based ink.
Real-time monitoring of ink volume, automatic color calibration.
CUSTOMOZABLE SYSTEM LANGUAGE
Equipped with 11.6 inch touch screen, easy to operate.
Support multiple language, such as English, Chinese, Russian, French, Arabic, also support multilingual customization.
ULTRA-LONG 8-10 HOURS BATTERY LIFE
Suitable for outdoor large-Area printing automatically switches to battery power in case of power loss,
offers strong flexibility and durability.
SEAMLESS SPLICING PRINTING
When the image height exceeds 2 meters and the length can be extended indefinitely, and partitioned printing is necessary, the image can be divided into N zones (1, 2, 3...8, etc.). The Baike AI Intelligent Printer can automatically seamlessly stitch the N zones together, achieving an automated, efficient, and complete printing result.
Samples
Live Printing Show
TH-GW12 Printing Surface
The TH-GW12 printer can be widely used for indoor and outdoor printing, flat surfaces of cars, trucks and buses, various materials of glass, tile, iron, PVC, putty wall, p
ainting wall, brick wall, diatom mud wall, shell powder, paper, wood.
Our Advantages
TH-GW12 wall printer advantages:
* AI Intelligent Operating System: Automatically, independently, no need for external computer
* Automatic Obstacle Avoidance for Print Heads: Automatically detects and avoids obstacles
* Precise Color Management:Auto-calibrates colors using AI algorithms, high-quality printed results.
* Ink Stock Management: Prevents ink depletion emergencies
* Ultra-Long 8-10 Hour battery life
* Customized System Languages: English, Chinese, Russian, French, Arabic and more
* Highest speed: 8 square meter per hour, under 360*720 pix printing speed.
* UV lamp
* H16 heads for clear printing
* High Resolution: up to 2880 dpi
* Foldable disassembly: 40 cm*32 cm*163 cm after folding, easy for transportation
* Detection function with 1 mm accuracy
* Easy operation with pre-installed software
* Power failure recovery system
* Automatic Obstacle Avoidance for Print Heads: Automatically detects and avoids obstacles
* Precise Color Management:Auto-calibrates colors using AI algorithms, high-quality printed results.
* Ink Stock Management: Prevents ink depletion emergencies
* Ultra-Long 8-10 Hour battery life
* Customized System Languages: English, Chinese, Russian, French, Arabic and more
* Highest speed: 8 square meter per hour, under 360*720 pix printing speed.
* UV lamp
* H16 heads for clear printing
* High Resolution: up to 2880 dpi
* Foldable disassembly: 40 cm*32 cm*163 cm after folding, easy for transportation
* Detection function with 1 mm accuracy
* Easy operation with pre-installed software
* Power failure recovery system
Product packaging
Durable Wooden Package for Shipment
We will pack every machine in a wooden box, insure every customer receive a perfect machine.
