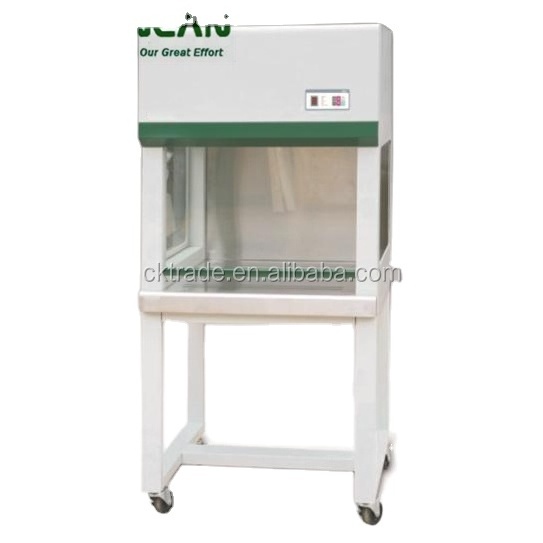

CHINCAN ZHJH-C1106B ZHJH-C1109B Economic Laminar Vertical Flow Clean Benth laminar flow hood laminar flow cabinet
CHINCAN ZHJH-C1106B ZHJH-C1109B Economic Laminar Vertical Flow Clean Benth laminar flow hood laminar flow cabinet
CHINCAN ZHJH-C1106B ZHJH-C1109B Economic Laminar Vertical Flow Clean Benth laminar flow hood laminar flow cabinet
CHINCAN ZHJH-C1106B ZHJH-C1109B Economic Laminar Vertical Flow Clean Benth laminar flow hood laminar flow cabinet
CHINCAN ZHJH-C1106B ZHJH-C1109B Economic Laminar Vertical Flow Clean Benth laminar flow hood laminar flow cabinet
CHINCAN ZHJH-C1106B ZHJH-C1109B Economic Laminar Vertical Flow Clean Benth laminar flow hood laminar flow cabinet

CHINCAN ZHJH-C1106B ZHJH-C1109B Economic Laminar Vertical Flow Clean Benth laminar flow hood laminar flow cabinet

FOB Reference Price: Get Latest Price
≥1 Pieces
US $800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
work side:
single

Quick Details

Warranty:
1year
Brand Name:
CHINCAN
Model Number:
ZHJH-C1106B/ZHJH-C1109B
Place of Origin:
Zhejiang, China
work side:
single
Product Description

Economic Laminar Vertical Flow Clean Benth

Description:
Economic vertical flow clean bench is the basic models of the premium units, which are designed for a particle-free, bacteria-free clean-air environment which is used for laboratory work, testing, manufacturing, inspection or pharmaceutical procedures under ISO Class 5 conditions to prevent airborne contaminations. They are economical lightweight and are available in a variety of sizes.
During operation, room air is drawn through a pre filter in the top of the cabinet to trap large particles. Air flows through a HEPA filter and is projected vertically over the work area. The positive pressure laminar airflow provides product protection within the work area. The HEPA-filtered air prevents contaminants from entering the work area and provides a particulate-free work environment that minimizes cross contamination.

Features:
1. LED digital indicator with touch pad controller.
2. HEPA filter tested to a typical efficiency of >99.97% for contaminants at 0.3 microns in size.
3. Class 100 ISO 5 air cleanliness within the work zone as per Fed Std 209E.
4. A disposable pre-filter traps large particles to extend the life of the HEPA filter.
5. A quiet and with 7 steps adjustable speed internal blower provides air velocity control.
6. Glare free fluorescent lamp.
7. Standard with UV-light.
8. Stainless steel work surface.
9. Combined base stand with castors.
10.Glass windows on left/right side.
11. Front sash window easy for random positioning

*Warning: Clean benches do not provide user protection, so they should not be used in conjunction with biohazardous material, toxins or radio nuclides.

Specifications:

Model ZHJH-C1106B ZHJH-C1109B ZHJH-C1112B ZHJH-C1115B ZHJH-C1118B ZHJH-C1209B ZHJH-C1214B
Work Side (mm) Single Single Single Single Single Double Double
Work Area Width 600 900 1200 1500 1800 900 1400
(mm)
Filter Monitoring No
System
Filter Efficiency Fed Std 209E Class100 ISO 5
Workroom Air 0.3-0.6 m/s (7 steps adjustable)
Velocity
Velocity Precision ±0.05 m/s
Illumination Fluorescent light ≥ 300Lx
UV-light Standard
HEPA Differential 0-500 Pa
Pressure

Work Area

Dimensions

(mm) (WxDxH)

600x625x545 900x625x545 1200x625x545 1500x625x545 1800x625x545 900x650x545 1400x650x545

Exterior

Dimensions

(mm) (WxDxH)

720x740x1600 1020x740x1600 1320x740x1600 1620x740x1600 1920x740x1600 1020x790x1600 1520x790x1600

Packing

Dimensions

(mm) (WxDxH)

840x860x1770 1140x860x1770 1440x860x1770 1740x860x1770 2040x860x1770 1140x910x1770 1640x910x1770
Net Weight (kg) 118 153 215 250 310 162 225
Power (W) 380 380 680 680 680 380 680
Electricity 220/230 Volt, 220/230 Volt, 220/230 Volt, 220/230 Volt, 220/230 Volt, 220/230 Volt, 220/230 Volt,
50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60Hz
Approval CE, ISO CE, ISO CE, ISO CE, ISO CE, ISO CE, ISO CE, ISO
Certifications

Packaging & Shipping

Packing Details: Standard export packing and neutral packing if needed, carton box, wooden case or upon request, packing carefully.

Shipping Method: Air / Sea / Express .

This year Shipping shows:
