wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M
adjustment in 4 directions and to be
able to adjust the direction of freedom
- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
HID
-
Product Weight（kg）:
-
9.6
-
Input Voltage(V):
-
220
-
Lamp Luminous Flux(lm):
-
10000
-
CRI (Ra>):
-
90
-
Beam Angle(°):
-
3
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Sinso
-
Model Number:
-
SN-2305-B dc xenon searchlight
-
Name:
-
hot joystick control high intensity durable waterproof searchlight hid
-
Type:
-
keyboard control outdoor searchlight
-
Usage:
-
border,jail,maritime,reservoir,ship,search and rescue and farm
-
Rotation speed:
-
pan:0-16°/sec,tilt:0-7°/sec
-
Feature:
-
energy saving,high lumen,water-resistant,brightness,high efficiency
-
Control mode:
-
wireless remote,wired keyboard(joystick),software(RS485)
-
Rotation angle:
-
pan:0~355°,tilt±45°
-
Keyword 1:
-
keyboard controller long range spotlight
-
Keyword 2:
-
variable speed rs485 keyboard controller long range spotlight
-
Keywords:
-
searchlight,search light,spot light,spotlight,projector,outdoor light
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Warranty(Year):
-
1-Year
-
Lamp Body Material:
-
Aluminum
-
Light Source:
-
HID
-
Product Weight（kg）:
-
9.6
-
Input Voltage(V):
-
220
-
Lamp Luminous Flux(lm):
-
10000
-
CRI (Ra>):
-
90
-
Beam Angle(°):
-
3
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Sinso
-
Model Number:
-
SN-2305-B dc xenon searchlight
-
Name:
-
hot joystick control high intensity durable waterproof searchlight hid
-
Type:
-
keyboard control outdoor searchlight
-
Usage:
-
border,jail,maritime,reservoir,ship,search and rescue and farm
-
Rotation speed:
-
pan:0-16°/sec,tilt:0-7°/sec
-
Feature:
-
energy saving,high lumen,water-resistant,brightness,high efficiency
-
Control mode:
-
wireless remote,wired keyboard(joystick),software(RS485)
-
Rotation angle:
-
pan:0~355°,tilt±45°
-
Keyword 1:
-
keyboard controller long range spotlight
-
Keyword 2:
-
variable speed rs485 keyboard controller long range spotlight
-
Keywords:
-
searchlight,search light,spot light,spotlight,projector,outdoor light
Product Paramenters
1. Easy to install and replace the bulbs.
2.The lamp body adopts good quality aluminium alloy, the weight is light and super bright
3.Good quality toughened glass lampshade,with the feature of excellent corrosion and shock resitance.
4.Light source adopts HID xenon bulbs, High light efficiency, and long service life.
5.The lamp can bend for ±45°, adjust 355°horizontally.automatic reciprocating motion
6.Spot beam,higher intensity, long effective range.
7.Three cruise modes and three speeds adjustment for choice。
8.wireless remote +keyboard+software control,can be connect with timmer ,achieve unattended.
|
Item model
|
SN-2305-B
|
|
|
||
|
Control mode
|
wireless remote,wired keyboard and software(RS485)
|
|
|
||
|
Control distance
|
remote:50~100 meters,keyboard/software:0~1200 meters
|
|
|
||
|
Power
|
150W
|
|
|
||
|
Input voltage
|
12VDC,24VDC,220VAC, can be customized
|
|
|
||
|
Luminous Flux
|
10000lm
|
|
|
||
|
Visibility distance
|
1000M
|
|
|
||
|
Tempreature(CCT)
|
3000K,6000K,8000K
|
|
|
||
|
Rotation angle
|
Pan:0~355°,Tilt:±45°
|
|
|
||
|
Rotation speed
|
Pan:0-16°/s,Tilt:0-7°/s
|
|
|
||
|
Work temperature
|
Normal version:-10℃~+45℃,Low temperature version: -30℃~+45℃,
|
|
|
||
|
Material
|
Cast Aluminum
|
IP grade
|
IP65
|
||
|
Beam Angle
|
3°
|
CRI(Ra>)
|
Ra>95
|
||
|
Lamp Dia
|
20cm
|
Color
|
Silver-Gray
|
||
|
Weight
|
13Kg
|
Dimension
|
239*224*516mm(L*W*H)
|
||

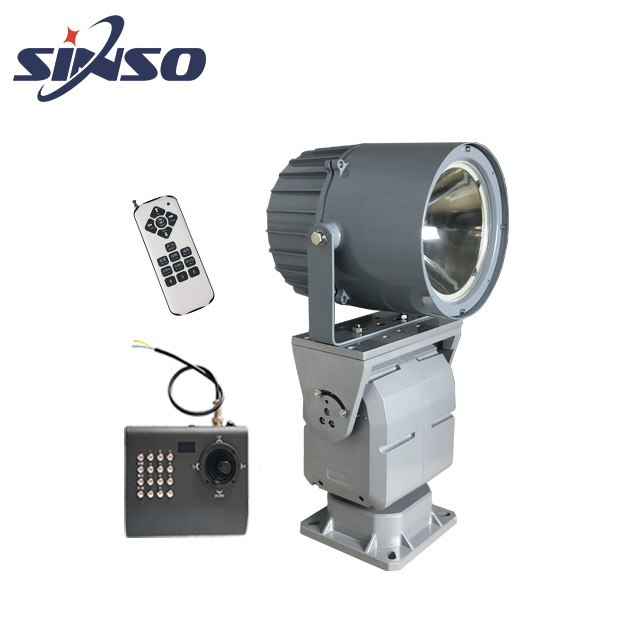

Products Description
Wireless remote
Wired keyboard
RS485 interface,signal transmission distance up to 1200M,keyboard with battery inside,do not need to permanently power
8 directions adjustment:Right,Left,UP,Down,
Top Right,Top Left,Bottom Right,Bottom Left,searchlight can turn to any angle within limit
One keyboard can be control up to 10 searchlights, One/multiple keyboard for one /multiple searchlight
Software control (RS485 interface)
Auto Cruise/Variable Speed Function
Autocruise Function:there are three cruise modes for auto cruise function :horizontal mode,vertical mode,horizontal vertical mode.
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed.
H:pan:16°/sec, tilt:7°/s,
M:pan:13°/sec,tilt:5°/s,
L:pan:7°/sec, tilt: 3°/s
Preset/Auto Scan/Guard Function
Guard Function:searchlight automatically to guard protected position after power on
Preset function:One-click Move to main area,
quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control
Auto Scan(keyboard):stop and cruise between the presets ,residence time can be set
Material
IP66 protection grade,waterproof and dustproof,No fear of sun and rain;Aluminum material,stable and durable
both limits in horizontal and vertical are mechanical limit,So the rotation range are adjustable
both limits in horizontal and vertical are mechanical limit,So the rotation range are adjustable
Application
Application:Homeland&Border Security,Prison Facilities&Prison Security, Maritime Water &Electric Power, Aquaculture, Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform,especially Border Security and Prison Security project,like guard tower
