Quick Details
-
Weight (KG):
-
3.5 kg
-
Color:
-
White/Blue/Clear
-
Size:
-
5" 10" 20"
-
Material:
-
PP
-
Inlet/Outlet:
-
1/2" 1/4" 3/4"
-
Maximum pressure:
-
115 psi
-
Failure test pressure:
-
435 psi
-
Cycle test pressure:
-
100,000cycles (0-115psi)
-
temperature:
-
100 degrees F (37.8 degrees C)
-
Port material:
-
Plastic/Brass
-
type:
-
Drinking Water
Quick Details
-
Core Components:
-
ABS
-
Place of Origin:
-
China
-
Brand Name:
-
JK water
-
Weight (KG):
-
3.5 kg
-
Color:
-
White/Blue/Clear
-
Size:
-
5" 10" 20"
-
Material:
-
PP
-
Inlet/Outlet:
-
1/2" 1/4" 3/4"
-
Maximum pressure:
-
115 psi
-
Failure test pressure:
-
435 psi
-
Cycle test pressure:
-
100,000cycles (0-115psi)
-
temperature:
-
100 degrees F (37.8 degrees C)
-
Port material:
-
Plastic/Brass
-
type:
-
Drinking Water

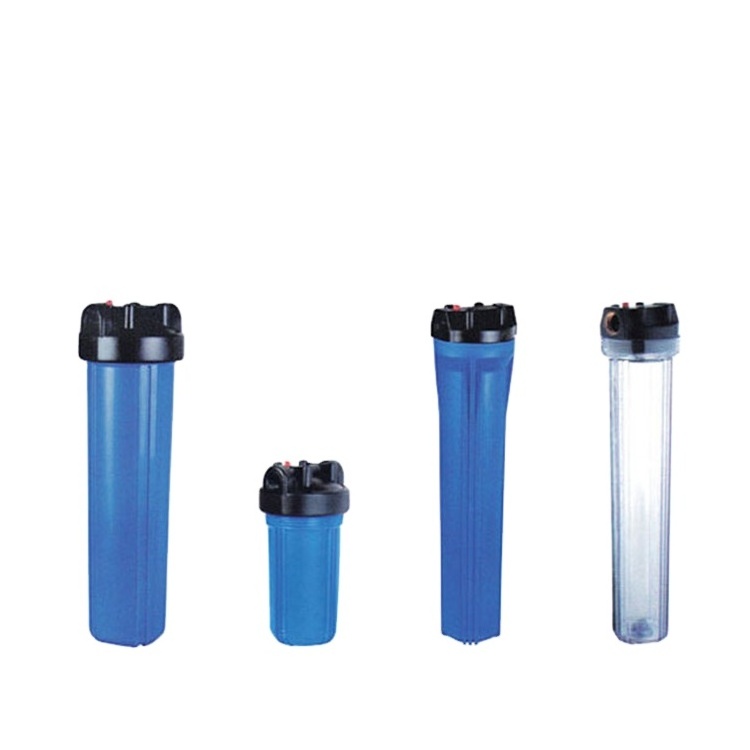

Plastic Precision Filter Housing/Big Blue Cartridge Water Filter Housing In Water Treatment
Household Plastic Filter Housing
Features & Benefits
A. High quality PP and AS material in conformity
B. Thicker housing and rib design can withstand more pressure
C. Opener,air release button,brass thread fitting and more options
Technical Specifications
A. MAX.Pressure:8 Bar (115psi)
B. Failure test pressure:30 Bar (435psi)
C. Cycle test pressure:0-115psi,100000cycles
D. Recommended pressure:<6 Bar (88psi),25℃
E. MAX.Temperature:50℃
F. Flow rate and pressure loss depend on filter elements type
Warning:Do not expose filter housing to sunshine!!!
Our factory is a professional manufacturer of water filtration products
1. RO membrane element
2. UF module(PVDF, PP, PAN,PS)
3. Nano filter membrane
4. membrane housing(staineless steel &FRP)
5. filter cartridge series (pp sediment, string wound,CTO,GAC,T33,pleated cartridges, quick fitting filter cartridge, high flow pleated filter cartridge)
6. filter housing series(10” 20” length,2.5”,4.5” diameter)
7. UV water sterilizer
www.ppmfilter.com is our web. Any inquiries, please feel free to contact us for more details. Thanks in advance.
