Quick Details
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BEIWEI
-
Model Number:
-
AWG16
-
Conductor:
-
Aluminum Conductor
-
Standard:
-
IEC NEMA GB JIS
-
Rated Temperature:
-
120/130/155/180/200/240
-
Size:
-
AWG9
-
MOQ:
-
300KG
-
Diameter:
-
AWG16 SWG18 1.29 mm
Quick Details
-
Application:
-
transformers
-
Conductor Material:
-
Aluminum
-
Conductor Type:
-
Solid
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BEIWEI
-
Model Number:
-
AWG16
-
Conductor:
-
Aluminum Conductor
-
Standard:
-
IEC NEMA GB JIS
-
Rated Temperature:
-
120/130/155/180/200/240
-
Size:
-
AWG9
-
MOQ:
-
300KG
-
Diameter:
-
AWG16 SWG18 1.29 mm
Products Description

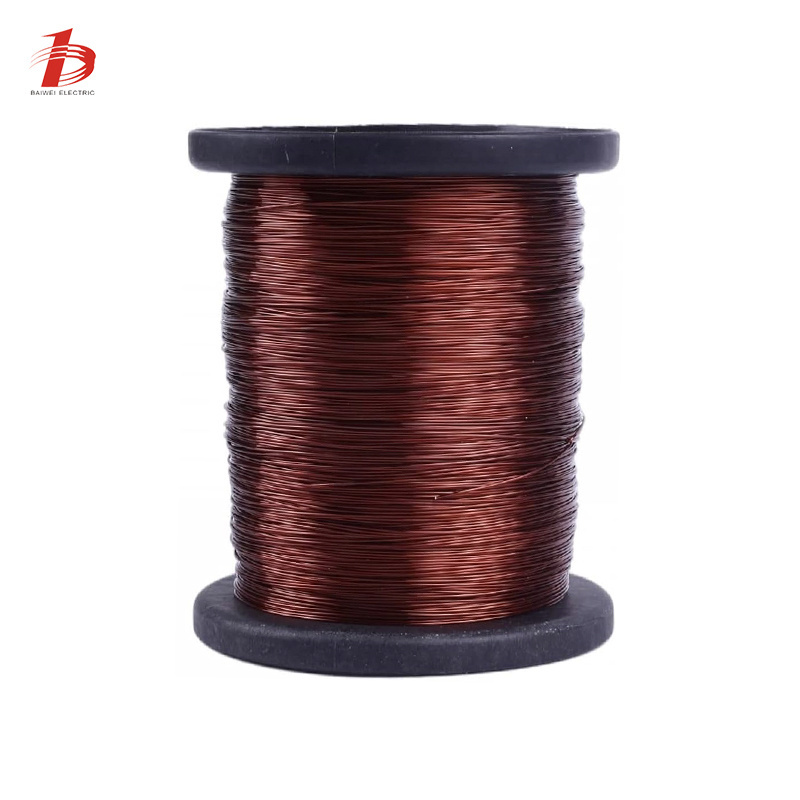

Enameled Round Wire（Coper/Aluminum）
Enameled round wire is one of main kinds of winding wires, Which is made of Copper/Aluminum Conductor with many kinds of insulation varnish with different temperature resistance levels ,including 120℃ /PVF - Polyvinyl Acetal, B130℃/F155/H180℃/UEW- Polyurethane, B130℃/F155℃/PEW- Polyester, H180℃/EIW- Polyester-imide,
SEIW- Solderable Polyester-imide,
C200℃/ EI/AIW- Polyesterimide / Polyamideimide,
C220℃/AIW- Polyamideimide,
C240℃/PIW-Polyimide.Enameled wire
are widely used for Transformers ,generators ,motors ,reactors and many other electrial equipments winding coils .
There are 3 grades of insulation thickness of enameled round wire :Grade 1,2 and 3.
Size Range
Copper Enameled Round Wire: 0.1-6.5mm
Aluminum Enameled Round Wire: 0.8-6.5mm
Please Contact Us :
If the Specifications are not in the above range .
|
Name
|
Enameled Rond Wire( Copper/Aluminum)
|
|
Size Range
|
Copper (OD:0.1mm-6.5mm),2-54AWG,3-50SWG
Aluminum (OD:0.8mm-6.5mm) ,
Customize Available
|
|
Thermal Class (℃)
|
120(Class E);130(ClassB),155(Class F),180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
|
|
Insulation Material
|
E120℃ /PVF - Polyvinyl Acetal
B130℃/F155/H180℃/UEW- Polyurethane
B130℃/F155℃/PEW- Polyester/Modified Polyester
H180℃/EIW- Polyester-imide
C200℃/ EI/AIW- Topcoat:Polyesterimide /Undecoat:Polyamideimide
C220℃/AIW- Polyamideimide
C240℃/PIW-Polyimide
|
|
Insulation thickness
|
Grade 1,2 and 3
|
|
Certificate
|
UL,ISO,CE,SGS,REACH,RoHs
|
|
Standard
|
IEC,NEMA,GB,JIS
|
|
Package
|
PT-4,PT-10,PT-15,PT-25,PT-45,PT-60,PT-90,PT-200,Wooden Spool ,Customize available
|
Manufacturing Technique
Certifications
Now We Have
CE /UL/REACH/Rohs/ISO 9001:2015
,
And Can Apply All Certificates you need.
