- Product Details
- {{item.text}}
Quick Details
-
Rated Loading Capacity:
-
1200kg
-
Max. Lifting Height:
-
5m
-
Span:
-
5.8m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tonlita
-
Showroom Location:
-
United States, Spain, Australia, Canada
-
Max working radius:
-
5m*0.3t
-
Max ground lifting height:
-
5.8mX0.8t
-
Hook speed:
-
0-8m/min
-
Rope type:
-
8mm*35m
-
Boom length:
-
4.5-5.8m
-
Boom angle/time:
-
0-75°/13sec
-
Gyratory angle/time:
-
0-360°(continuous)/60sec
-
Max extended dimensions (mm):
-
Length 6300 Front/back4600
-
Walking speed:
-
0-2.5km/h
-
Gradeability:
-
20°(36%)
Quick Details
-
Weight (KG):
-
1200
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
Narrow Space
-
Rated Loading Capacity:
-
1200kg
-
Max. Lifting Height:
-
5m
-
Span:
-
5.8m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tonlita
-
Showroom Location:
-
United States, Spain, Australia, Canada
-
Max working radius:
-
5m*0.3t
-
Max ground lifting height:
-
5.8mX0.8t
-
Hook speed:
-
0-8m/min
-
Rope type:
-
8mm*35m
-
Boom length:
-
4.5-5.8m
-
Boom angle/time:
-
0-75°/13sec
-
Gyratory angle/time:
-
0-360°(continuous)/60sec
-
Max extended dimensions (mm):
-
Length 6300 Front/back4600
-
Walking speed:
-
0-2.5km/h
-
Gradeability:
-
20°(36%)

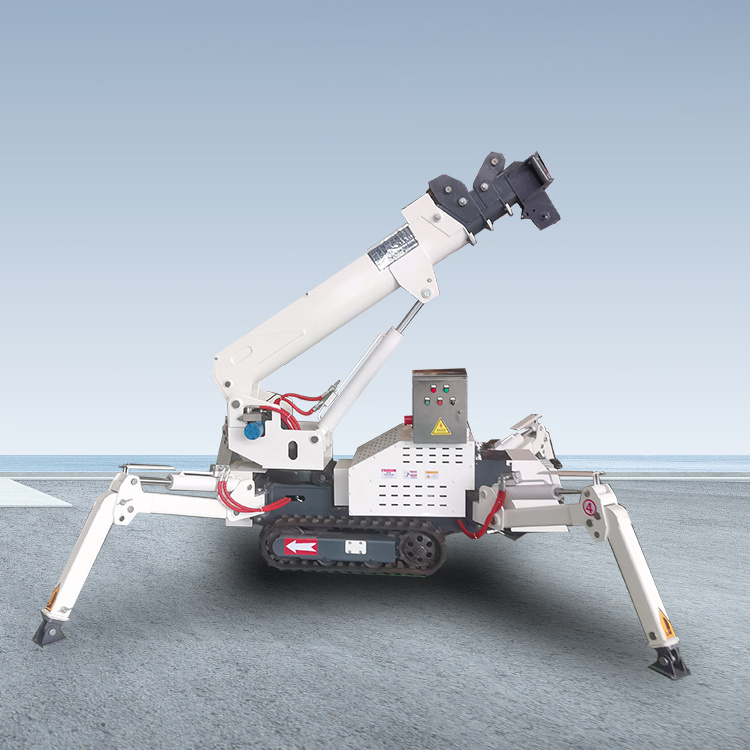

crawler spider crane is a powerful heavy-lifting machine that is designed to operate in difficult terrain and confined spaces. It is a versatile piece of equipment that can perform a wide range of lifting tasks, from building construction to infrastructure maintenance, and from wind turbine installation to shipyard operations
.
Product Advantages:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
|
Specification
|
|
1.2T
|
|
|
Maximum working radius
|
|
5m×0.3t
|
|
|
Maximum ground lift
|
|
5.8mX0.8t
|
|
|
|
Hook speed
|
0-8m/min
|
|
|
walking device
|
way of walking
|
Hydraulic motor drive, two-speed
|
|
|
|
Walking speed
|
0-2.5km/h
|
|
|
|
Gradeability
|
20°(36%)
|
|
|
motor
|
Voltage
|
AC380V
|
|
|
engine
|
Producer
|
YARMAR
|
|
|
|
Fuel /capacity
|
Diesel /8L
|
|
|
|
Start method
|
Electric start
|
|
|
The standard configuration
|
Diesel engine and electric motor (dual power)
|
|
|
|
Battery capacity
|
12v 45AH
|
|
|
|
Craftsmanship
|
Paint assembly process
|
|
|
Our Company and factory
Why Choose Us
Reliable quality
Tonlita spider crane is widely used, mainly for workshop equipment inspection and maintenance, electric power inspection and maintenance,
building curtain wall installation, steel structure installation, airport and high-speed railway station construction, and
mausoleum stone industry and other occasions where space is small.
building curtain wall installation, steel structure installation, airport and high-speed railway station construction, and
mausoleum stone industry and other occasions where space is small.
Customer satisfaction feedback
The spider crane with its "long legs" retracted is flexible enough to go up to the sky and down to the ground. Its chassis has the flexibility of a crawler crane and the super stability of a car crane. In places where the road is narrow, the slope is high, the ground is muddy and other large cranes cannot enter, only the spider crane can be used for construction.
Are you a manufacturer or Trader ?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term ?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation ?
Generally, our price is valid within 15 days from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service ?
Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Do you have CE certificate ?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing ?
We will provide professional installation video to illustrate.Also provide manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year.
