Quick Details
-
Model Number:
-
IP-E4010
-
Dimension:
-
215 * 170 * 150 mm
-
Output Power:
-
25w/30w
-
Shell Material:
-
ABS
-
The body material:
-
ABS
-
Product Name:
-
IP POE Ceiling Speaker
-
Speaker unit:
-
5.25"
-
Network interface:
-
Standard RJ45
-
Support agreements:
-
RTP, UDP, TCP/IP, FTP
-
Audio format:
-
MP3/WAV
-
Audio mode:
-
16-bit stereo CD sound quality
-
Frequency Response:
-
80Hz to 16KHz
-
Power Supply:
-
POE/DC12V
-
Keyword:
-
ip poe ceiling speaker
-
Application:
-
IP PA System
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ARVOX
-
Model Number:
-
IP-E4010
-
Dimension:
-
215 * 170 * 150 mm
-
Output Power:
-
25w/30w
-
Shell Material:
-
ABS
-
The body material:
-
ABS
-
Product Name:
-
IP POE Ceiling Speaker
-
Speaker unit:
-
5.25"
-
Network interface:
-
Standard RJ45
-
Support agreements:
-
RTP, UDP, TCP/IP, FTP
-
Audio format:
-
MP3/WAV
-
Audio mode:
-
16-bit stereo CD sound quality
-
Frequency Response:
-
80Hz to 16KHz
-
Power Supply:
-
POE/DC12V
-
Keyword:
-
ip poe ceiling speaker
-
Application:
-
IP PA System

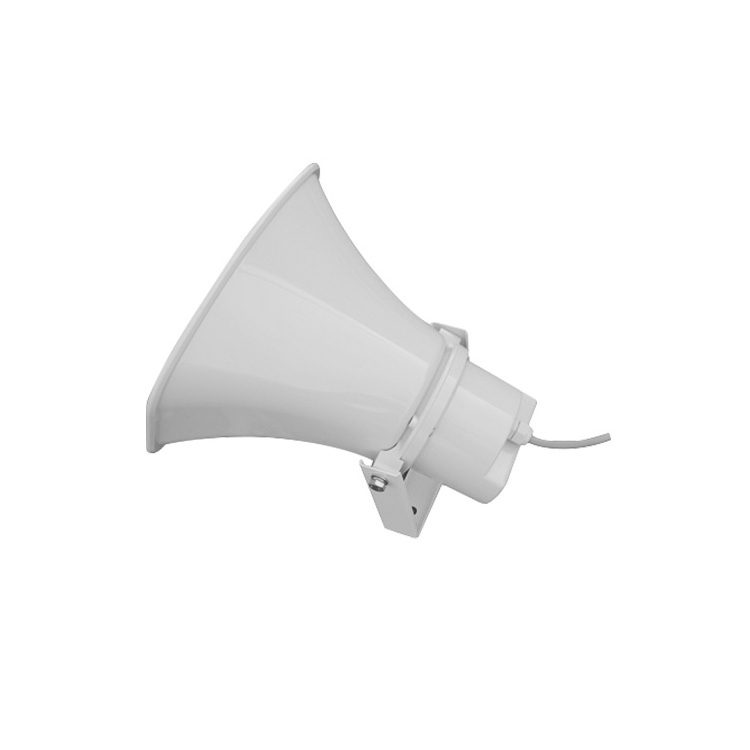

IP-E4010 waterproof outdoor ip 65 loudspeaker pa system active network ip poe horn speaker
Our Advantages
Products Description
Descriptions
* ABS housing, iron mesh cover, waterproof and dust-proof grade in accordance with IP55 standard design, digital decoding terminal and active treble horn integration;
* The equipment is designed with embedded computer technology and DSP audio processing technology.
* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol; Support international standard IEEE 802.3at protocol
* Built-in Class D 30W amplifier circuit, fine sound quality, strong power;
* When equipped with POE-powered POE switch, only one network cable is required to connect, the construction is simple and the cost is low;
* POE switch supply power up to 25W, if using ordinary switch, then the external DC12V power adapter power up to 30W;
* With a one-way linkage output interface (short-circuit signal), easy to extend with other systems;
* Support DHCP, compatible with routers, switches, bridge gateways, the Internet, multicast, unicast and other arbitrary network structures;
* Built-in network isolation lightning treatment circuit
* ABS housing, iron mesh cover, waterproof and dust-proof grade in accordance with IP55 standard design, digital decoding terminal and active treble horn integration;
* The equipment is designed with embedded computer technology and DSP audio processing technology.
* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol; Support international standard IEEE 802.3at protocol
* Built-in Class D 30W amplifier circuit, fine sound quality, strong power;
* When equipped with POE-powered POE switch, only one network cable is required to connect, the construction is simple and the cost is low;
* POE switch supply power up to 25W, if using ordinary switch, then the external DC12V power adapter power up to 30W;
* With a one-way linkage output interface (short-circuit signal), easy to extend with other systems;
* Support DHCP, compatible with routers, switches, bridge gateways, the Internet, multicast, unicast and other arbitrary network structures;
* Built-in network isolation lightning treatment circuit
|

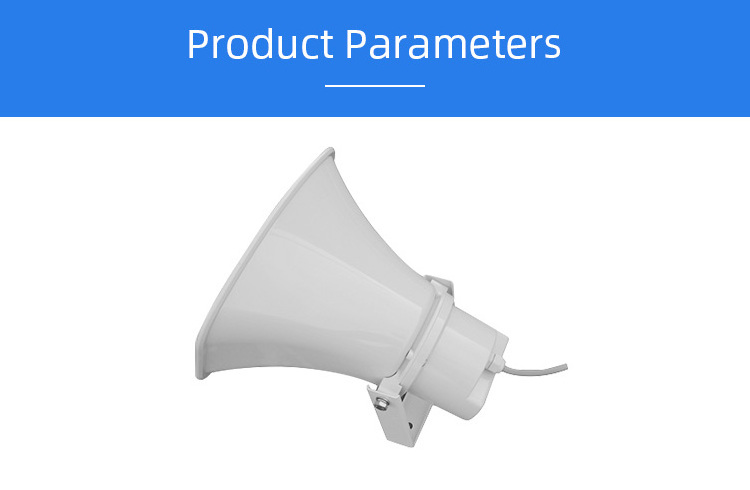

Item NO.
|
IP-E4010
|
|
Network interface
|
Standard RJ45
|
|
Support agreements
|
RTP, UDP, TCP/IP, FTP
|
|
Audio format
|
MP3/WAV
|
|
Sample rate
|
8K to 48KHz
|
|
Network transmission rate
|
100Mbps
|
|
Audio mode
|
16-bit stereo CD sound quality
|
|
The horn unit specification
|
5.25″
|
|
Output frequency
|
80Hz to 16KHz
|
|
Harmonic distortion
|
≤1%
|
|
The signal-to-noise ratio
|
≥80dB
|
|
Rated power
|
25W (when POE is powered)
|
|
The ambient temperature
|
-20°C to 70°C
|
|
Ambient humidity
|
20% to 80% relative humidity
|
|
Power consumption
|
24W
|
|
Input power supply
|
POE/DC12V
|
|
Installation form
|
Wall-mounted
|
|
Material
|
ABS material
|
|
The size of the product
|
215 x 170 x 150 mm
|
|
Weight
|
2.3kg
|
