Quick Details
-
Brand Name:
-
HHH-FEC
-
Rated torque:
-
2800NM
-
Holding Torque:
-
6800NM
-
Weight:
-
52kg
-
TEMPERATURE RANGE:
-
-20℃-70℃
-
MAXIMUM BACKLASH:
-
0.46°
Quick Details
-
Weight (KG):
-
52
-
Core Components:
-
rotating gear
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HHH-FEC
-
Rated torque:
-
2800NM
-
Holding Torque:
-
6800NM
-
Weight:
-
52kg
-
TEMPERATURE RANGE:
-
-20℃-70℃
-
MAXIMUM BACKLASH:
-
0.46°
Products Description

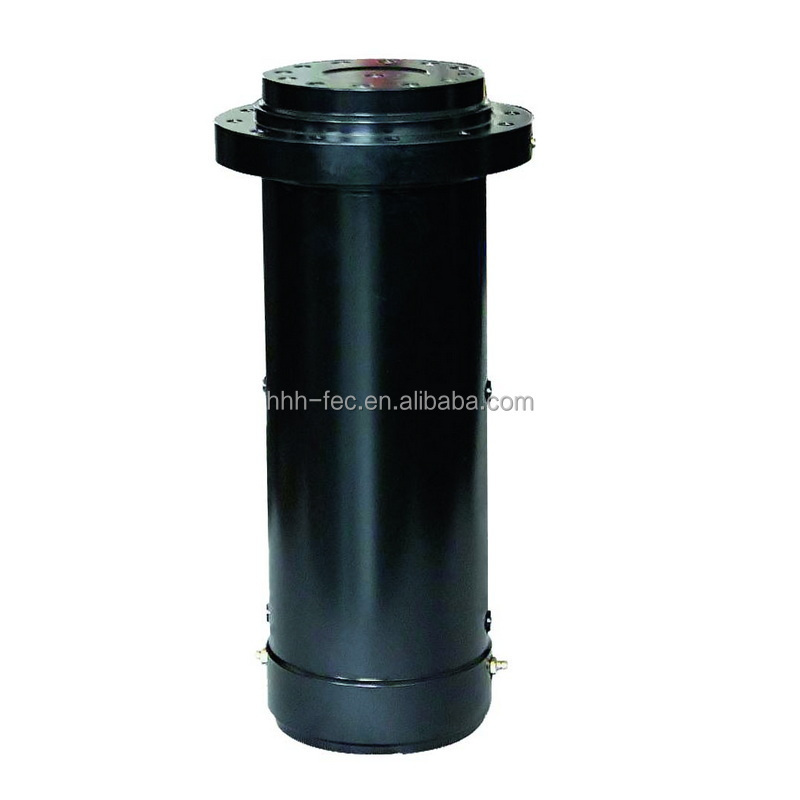

swing cylinder high quality for drill jumbo
|
Model
|
H3-28-180-FT
|
|
Rated Torque
|
2800NM
|
|
Holding Torque
|
6800NM
|
|
Rotation degress
|
180°
|
|
Displacemant
|
688
|
|
Temperature range
|
-20°-70°
|
|
Rated Pressure
|
3050PSI/210bar
|
|
Max test pressure
|
4500PSI/310bar
|
|
Maximum backlash
|
0.46°
|
|
Weight
|
52kg
|
Product design 2
The maximum backlash in gearset is 0.46°。 Seal movement, seal compression, and fluid compression may result in additional rotation.
Product design 3
Outside the surface of the cylinder, spray epoxy magnetic curing paint within 2h after treatment and dry naturally.
