Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
3.2
-
Lamp Luminous Flux(lm):
-
11000
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
longlux
-
Model Number:
-
High Bay Light
-
Product Name:
-

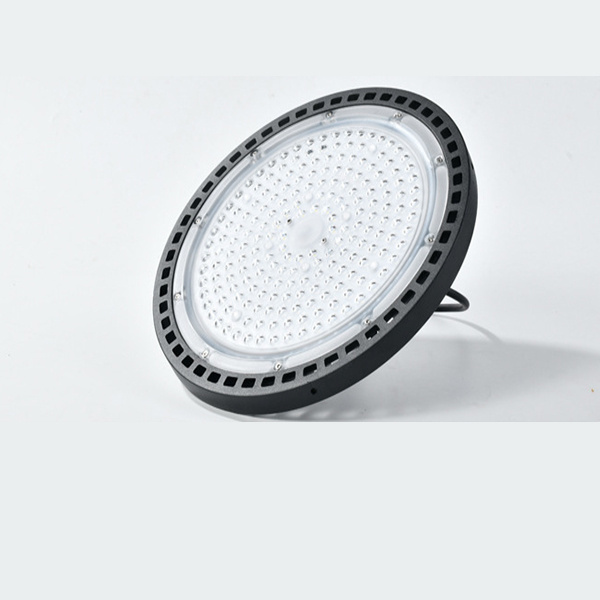

UFO LED High Bay Light
-
Power:
-
100W/150W/200W
-
Keyword:
-
LED Industrial Hig Bay Lighting
-
Material:
-
Aluminum+PC
-
Power Factor:
-
0.95
-
Beam angle:
-
60/90/120 Degree
-
IP Grade:
-
IP 66
-
LED Chip:
-
SMD3030 Led Chips
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
120
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
3.2
-
Lamp Luminous Flux(lm):
-
11000
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
longlux
-
Model Number:
-
High Bay Light
-
Product Name:
-
UFO LED High Bay Light
-
Power:
-
100W/150W/200W
-
Keyword:
-
LED Industrial Hig Bay Lighting
-
Material:
-
Aluminum+PC
-
Power Factor:
-
0.95
-
Beam angle:
-
60/90/120 Degree
-
IP Grade:
-
IP 66
-
LED Chip:
-
SMD3030 Led Chips
Product Description
Product Presentation
Features
1. 5050 high brightness lamp bead, 210lm/w, higher brightness and lower power consumption.
2. LED light source, low heat, good color rendering, uniform light emission.
3. Thickened lamp body, sufficient materials, good thermal conductivity, high temperature resistance, corrosion resistance, suitable for various harsh working environments.
4. High quality insulating wire, high strength, good flexibility, no fear of extreme weather, reduce the risk of electric shock.
5. Pure aluminum integrated molding, fast heat conduction, good heat dissipation ability.
6. Various configurations are available, supporting round power supply, ceiling bracket and power box.
7. Professional light distribution, lens with 30 °/60 °/90 °/120 ° and other multi-angle options.
Specific parameters
|
Model No.
|
LLX-HB-SL100
|
LLX-HB-SL150
|
LLX-HB-SL200
|
|
Power(W)
|
100
|
150
|
200
|
|
Voltage
|
AC85-265V 50/60HZ
|
AC85-265V 50/60HZ
|
AC85-265V 50/60HZ
|
|
LED chip
|
3030 1W 120pcs
|
3030 1W 210pcs
|
3030 1W 280pcs
|
|
CCT(K)
|
3000-6500
|
3000-6500
|
3000-6500
|
|
Ra
|
>70
|
>70
|
>70
|
|
Material
|
Aluminum + PC
|
Aluminum + PC
|
Aluminum + PC
|
|
IP
|
IP66
|
IP66
|
IP66
|
|
Surge protection
|
4000V
|
4000V
|
4000V
|
|
P.F.
|
>0.95
|
>0.95
|
>0.95
|
|
Luminous flux
|
≥11000
|
≥11000
|
≥11000
|
|
Net weight(KG)
|
1.8
|
2.3
|
3.2
|
|
Product size(MM)
|
Φ275*115
|
Φ310*120
|
Φ345*125
|
|
Carton size(CM)
|
29.5*29.5*13.5
|
32*32*14
|
35.5*35.5*14.5
|
