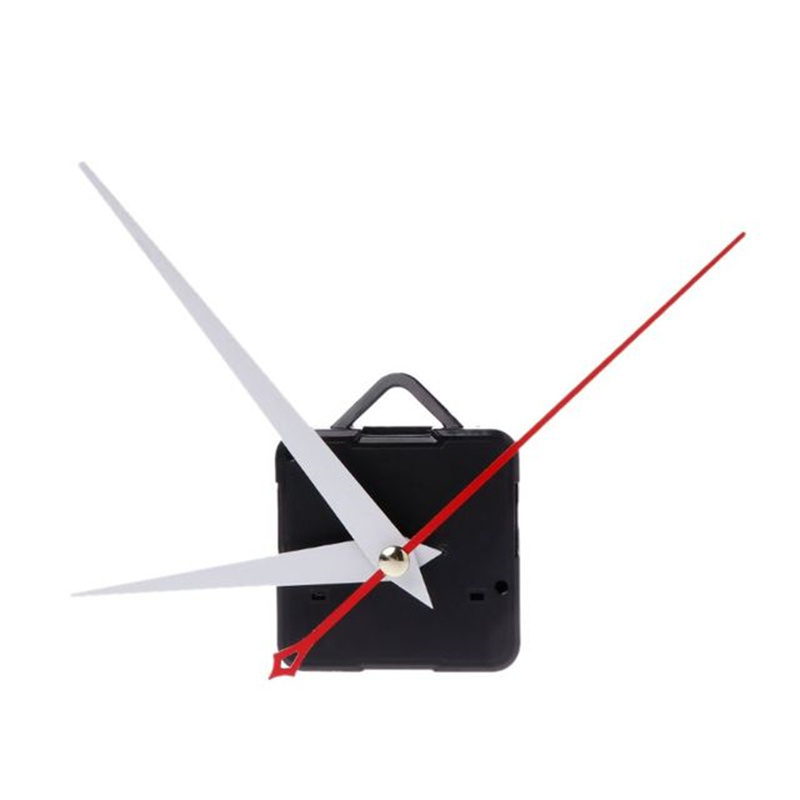

Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep
Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep
Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep
Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep
Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep
Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep
Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep
Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep

Sangtai 5168s Wall Watch Mechanical Clock Machine Motor Quartz Clock Movements Clockwork Sweep

FOB Reference Price: Get Latest Price
≥100 Pieces
US $0.53
≥500 Pieces
US $0.43
≥5000 Pieces
US $0.38
≥50000 Pieces
US $0.33
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
5168S
Function:
Shaft Movement
Material:
ABS
Color:
Black
Size:
55*55*16mm
Shaft:
12 13 14 16 18 20 22mm
Movement:
Silent
Certificate:
CE RoHS FCC
Battery Life:
5-6 months
Battery:
AA*1
Product Name:
Clock Mechanical Clock Movement Motor Quartz Clock Movements Clockwork

Quick Details

Design Style:
Modern
Place of Origin:
Fujian, China
Brand Name:
Sangtai
Model Number:
5168S
Function:
Shaft Movement
Material:
ABS
Color:
Black
Size:
55*55*16mm
Shaft:
12 13 14 16 18 20 22mm
Movement:
Silent
Certificate:
CE RoHS FCC
Battery Life:
5-6 months
Battery:
AA*1
Product Name:
Clock Mechanical Clock Movement Motor Quartz Clock Movements Clockwork
Product Description

Highlights:

*
Ideal to build your own clock
*
Highly precision quartz movement
*
Hundred different designs of hands
*
Faster shipment (1-15 days )

* MOQ 100pcs



1. The clock movement machine has a spindle size from 12-23 mm, making it compatible with a wide range of clock hands.

2. Clock Movement Machine Size: 5.5 x 5.5 x 1.5 cm.

3. The machine is designed for use in clocks, ensuring reliable and accurate timekeeping ±30s/month.

4. The compact size of the machine makes it easy to install in a variety of clock cases.

5. The machine is easy to use and maintain, making it a practical choice for anyone looking to repair or replace a clock movement.

6.The 5168S silent movement is not a little sound. It is impossible to realize a completely quiet.

7.It still be heard when it is working, because the gear will inevitably produce friction.

8.The hour pipe is the shaft the hour hand presses onto and the minute pipe is the shaft the minute hand presses on to




Important Note :

A: pls order with shaft (12-23mm available )/thread size (5-16mm), one size for 100pcs order.

B: Pls advise size of three (hour/minute/second )hands , color(black red silver gold and white also needed .thanks dear.
Shipment includes:
1PC x Clock movement
1PC x Hour hand
1PC x Minute hand
1PC x Second hand
1PC x Rubber washer
1PC x Metal washer
1PC x Metal nut
AA battery is not included


Size :56*56*16mm
Powered by AA battery (not include )
Thread length
: 5-15 mm . Suitable for clock panel with a thickness not more than 2-13 mm
Material : ABS
Item Number
5168S
Style
Silent/Sweep/Non Ticking
MOQ
100pcs
Warranty
12 months
Battery
AA*1 no included
Battery Life
5-6 months
Torque
150-180μM
Delivery Time
1-15days
Certificate
CE ROHS FCC SGS
Shaft Details
Shaft
A(Thread)
D
12
5.6
12.5
13
6.3
12.9
14
6.5
13.9
15
7.5
14.8
16.5
8.5
16.3
18.5
9.9
18.7
20
12
20.2
22
14
22.4
23
16
23.4
Clock Hand Catalog
Remark :
A. Pls advise size of three (hour/minute/second )hands ,

B. Color(black red silver gold and white avaialble )

C. Item number
Certifications
CE Certificate
ROHS Certificate
FCC
Installation Instructions
Remark :


First, gently press the hour hand

Pls keep three hands parallel distance, do not rub it

Pls do not make much pressure in the three hands during installation, otherwise they will be bent .

Pls pay more attention to the pointer ,which must be aligned at 12 o'clock


Packing & Delivery
Shaft
(mm)
Quantity
(pcs)
Carton Size
(cm)
G.W
(kgs)
N.W
(kgs)
6-9
500
37*37*35
12.5
11.8
12-16
500
37*37*40
12.7
12
18-22.5
500
49*37*44
13
12.2
12-16
100
38*39*13
2.8
2.4
18-22
100
49*38*13
2.9
2.5
