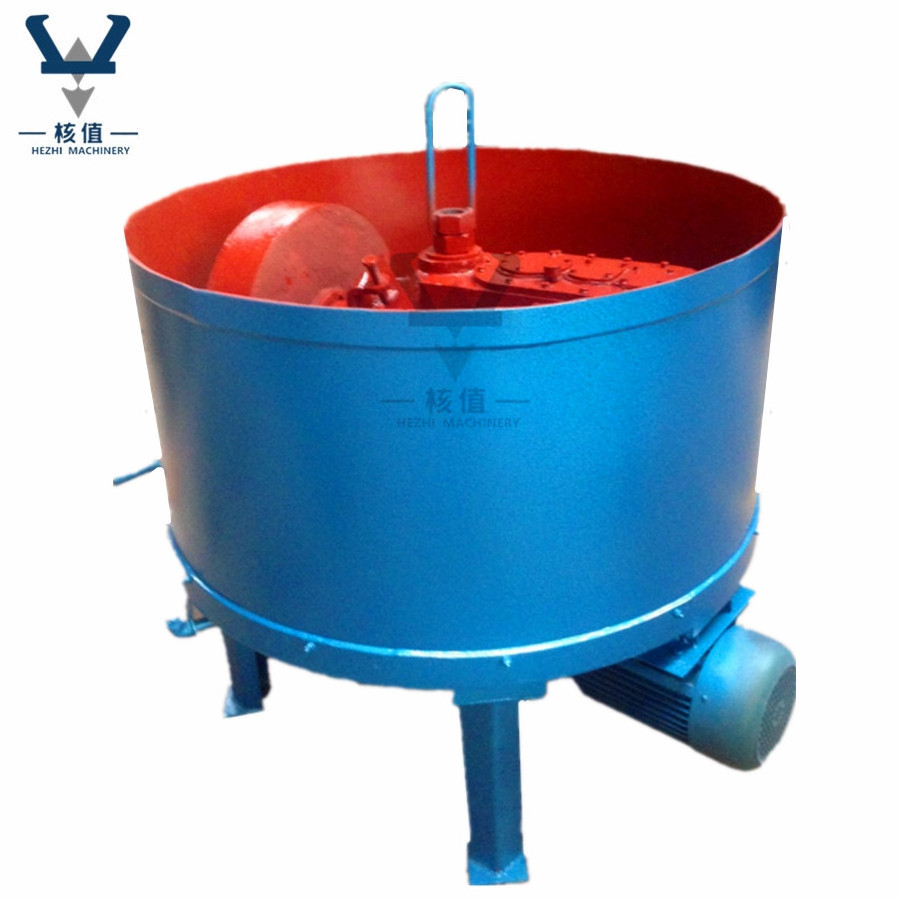

S11 green sand mixer muller is economic sand mixing machine for green sand. Two wheels crush and mix foundry sands, clay, coal
power andwater.
S11 green sand mixing machine is suitable for manual and semi-automatic clay sand casting.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380-480V Or Customized
-
Power:
-
Min 7.5KW
-
Dimension(L*W*H):
-
Depending on Sand Mixer Models
-
Machine Material:
-
Iron Steel
-
Color:
-
Blue / Green / Yellow
-
Mixing Capacity:
-
3-20 t/h
-
Model:
-
S13 Series
-
Mixing Material:
-
Green Sand with iron , Mg, Water
-
PLC:
-
Siemens, Omron or famous brand in china
-
Weight:
-
Depending on Sand Mixer Models
-
Certification:
-
ISO / CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
mixer, Wheel roller Type Green Sand Mixer Casting Machine
-
Brand Name:
-
Hezhi
-
Voltage:
-
380-480V Or Customized
-
Power:
-
Min 7.5KW
-
Dimension(L*W*H):
-
Depending on Sand Mixer Models
-
Machine Material:
-
Iron Steel
-
Color:
-
Blue / Green / Yellow
-
Mixing Capacity:
-
3-20 t/h
-
Model:
-
S13 Series
-
Mixing Material:
-
Green Sand with iron , Mg, Water
-
PLC:
-
Siemens, Omron or famous brand in china
-
Weight:
-
Depending on Sand Mixer Models
-
Certification:
-
ISO / CE
The green sand molding mixing muller machine has scrapers and two high-speed rotors with a blade were installed in the machine's chassis. chassis rotates as clockwise, rotor and scraper rotate as counterclockwise. Rotor speed is higher than the speed of the chassis. Because chassis and rotor has an opposite movement, and the speed is different, so the sand of the chassis obtains different speed difference. Sand grains produce corresponding friction force and shear force, which causes the grinding, mixing, broken. This kind of machine not only mix with high efficiency, and the sand after mixing is good quality.
S13 clay sand mixer muller machine is economic sand mixing machine for clay sand. Wheel and rotor crush and mix foundry sands, clay, coal power and water.
S13 Green sand mixing machine is suitable for manual and semi-automatic clay sand casting.
|
Item/Model
|
S1312
|
S1315
|
S1320
|
|
Sand mixing capacity
|
3-5ton/h
|
8-10ton/h
|
20ton/h
|
|
Dis diameter
|
φ1,250mm
|
φ1,500mm
|
φ2,000mm
|
|
Main motor power
|
7.5kw
|
15kw
|
48kw
|
We manufacture and design full scope of green sand casting equipment.
including Green Sand Mixer, Sand Feeder and Conveyor, Sand Moulding machine and Sand
Reclamation Machine.
We also design custom production line of green sand casting prodcution.
Finished Green sand Mixer / Muller in Hezhi Foundry Machinery Workshop :
Foundry sand Mixer Detail Parts :
Under Production Green Sand Mixer :
S14 rotor type green sand mixer
Rotor type Green sand mixer – Model S14 Series is used to mix clay sand or green sand as common foundry equipment. Used sands or
new sands are mixed with clay, coal powder. Water is also added while mixing from special water supply device.
new sands are mixed with clay, coal powder. Water is also added while mixing from special water supply device.
Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
FAQ ---- About Wheel type Green Sand Mixer:
Q: How long is the best sand mixing time?
A: 3-8 Min is the best time.
Q: How much to feed each time:
A: Changed according to the requirement of property of molding sand if the strength of molding sand is higher, the batch capacity
should be reduced.
Q: What is the order of feeding?
A: Add molding sand prepared as needed. Add the required liquid after mixing for 2-3 minutes
Q: How many types of mixer for green sand?
A: Mainly used three types: rotor type sand mixer, double wheels type sand mixer and single wheel type sand mixer.
FAQ ---- About Hezhi Machinery:
Q: How long is the best sand mixing time?
A: 3-8 Min is the best time.
Q: How much to feed each time:
A: Changed according to the requirement of property of molding sand if the strength of molding sand is higher, the batch capacity
should be reduced.
Q: What is the order of feeding?
A: Add molding sand prepared as needed. Add the required liquid after mixing for 2-3 minutes
Q: How many types of mixer for green sand?
A: Mainly used three types: rotor type sand mixer, double wheels type sand mixer and single wheel type sand mixer.
FAQ ---- About Hezhi Machinery:
A: It depends on the size of the machine. Usually - 30days for shot blasting machine and sand casting machine,.45days for production line equipments. .
Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.
For the smaller machine we will install the machine at our workshop tomake sure it can work well.
For the bigger machine, we will install the machine for our customers until it can work well
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
