Quick Details
-
Size:
-
12000/12500mm/13000mm*2490mm*1550mm(Customized)
-
Place of Origin:
-
Shandong, China
-
Application:
-
Transport livestock and cargo
-
Quality:
-
100% Guaranteed
-
Color:
-
Customized Color
-
Axle:
-
2 Axles 3 Axles 4 Axles bpw,jiii,fuwa,L1
-
Suspension:
-
Mechnical suspension/Air suspension
-
Tire:
-
12R22.5/315/80R22.8/11R22.5 Triangle,linglong,jindun
-
King Pin:
-
2.0 Inch (50mm)/3.5 Inch (90mm)
-
Leaf Spring:
-
90(W)mm*16(Thickness)mm*10(Layer)
-
Landing Gear:
-
JOST 28 Tons
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
40T/50T/60T/80T
-
Brand Name:
-
LEAO Trailer
-
Size:
-
12000/12500mm/13000mm*2490mm*1550mm(Customized)
-
Place of Origin:
-
Shandong, China
-
Application:
-
Transport livestock and cargo
-
Quality:
-
100% Guaranteed
-
Color:
-
Customized Color
-
Axle:
-
2 Axles 3 Axles 4 Axles bpw,jiii,fuwa,L1
-
Suspension:
-
Mechnical suspension/Air suspension
-
Tire:
-
12R22.5/315/80R22.8/11R22.5 Triangle,linglong,jindun
-
King Pin:
-
2.0 Inch (50mm)/3.5 Inch (90mm)
-
Leaf Spring:
-
90(W)mm*16(Thickness)mm*10(Layer)
-
Landing Gear:
-
JOST 28 Tons
Look at here first
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if necessary.
Specification

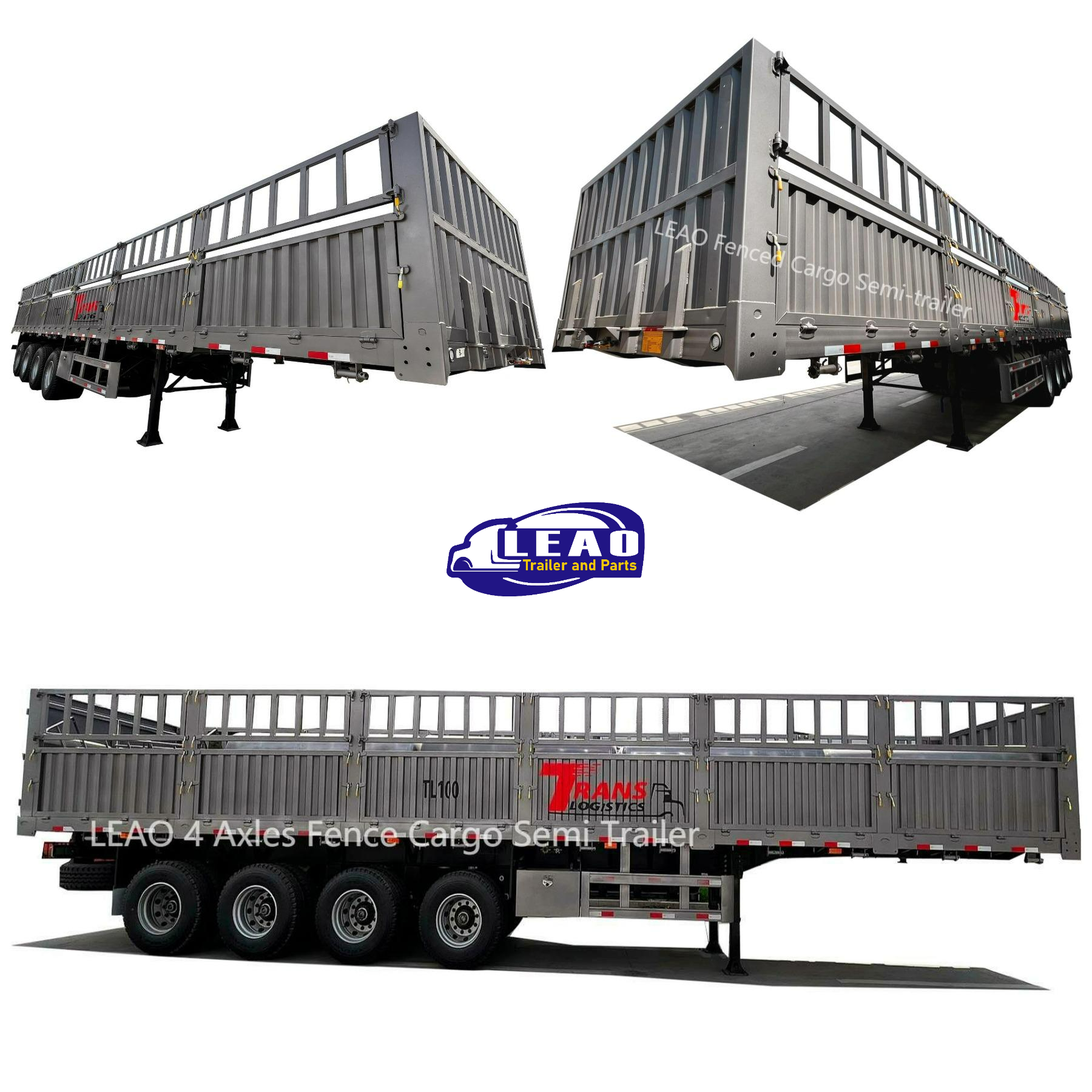

LEAO Fence Cargo Semi-trailer is used to transport animals, vegetables, cotton and other goods.
It has 2/3/4 axles, can choose load capacity 30/40/60/80/100 tons, customizable color and sidewall height.
And the side wall fence semi trailer is a specialized for carrying 40ft cargo trailer, two 20ft containers, or one 20ft container without removing the side walls or frame.
We are a manufacturer that provides customized services, designing according to every requirement of our customers, producing high quality fence semi-trailers at low prices.
|
LEAO Fence Cargo Semi Trailer(Customerize and OEM Service Available)
|
|
|
|
|||
|
Application
|
Coal/ Livestock/Vegetable/Cargo Loading
|
|
|
|||
|
Product Name
|
2 axles fence semi trailer
|
3 axles fence semi trailer
|
4 axles fence semi trailer
|
|||
|
Size
|
9500/11000*2500*2800/3800 (mm)
|
12500/13000*2500*2800/3800 (mm)
|
12500/13000*2500*2800/3800 (mm)
|
|||
|
Payload
|
30-60Ton
|
30-80Ton
|
40-100Ton
|
|||
|
Main beam
|
Height: 500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm ; Material is Q345B Steel.
|
Height: 500mm, upper plate is 16mm, middle plate is 10mm, down plate is 18mm ; Material is Q345B Steel.
|
Height: 500mm, upper plate is 18mm, middle plate is 12mm, down plate is 20mm ; Material is Q345B Steel.
|
|||
|
Axles
|
2*13T/16Ton
LEAO/ FUWA/BPW/Other |
3*13T/16Ton
LEAO/FUWA/BPW/Other |
4*13T/16Ton
LEAO/ FUWA/BPW/Other |
|||
|
Side Wall Height
|
600mm-1700mm (can be customized)
|
|
|
|||
|
Side beam
|
16mm channel steel (Material is Q235B steel)
|
|
|
|||
|
Bottom Platform
|
3mm checquered steel plate
|
|
|
|||
|
Suspension
|
Mechanical suspension (Air suspension optional)
|
|
|
|||
|
Leaf spring
|
90(width)mm*13(thickness)mm*10 layer(especial for exporting market)
|
|
|
|||
|
Tire
|
12R22.5 / 11.00R20 8/12pcs (Other size optional)
|
|
|
|||
|
Rim
|
9.00-22.5 / 11.00R20 8/12pcs (Other size optional)
|
|
|
|||
|
Kin pin
|
Jost brand 2.0 or 3.5 inch
|
|
|
|||
|
Landing gear
|
Jost brand 28Ton two speed
|
|
|
|||
|
Braking system
|
Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
|
|
|
|||
|
Electrical
|
LED light , 7 ways ,24V
|
|
|
|||
|
Tool box
|
One piece 1m *0.5m*0.5m ( size can be customized)
|
|
|
|||
|
Twist locks
|
Optional
|
|
|
|||
|
ABS
|
Optional
|
|
|
|||
|
Painting
|
1.Sand blasting processing clean rust.2.Coat of anticorrosive primer.
3.Coats of finish urethane paint. 4.Color as customer choice. |
|
|
|||
|
Shipping terms
|
By bulk vessel, RORO, or 40HQ container
|
|
|
|||
Product Display
1. Capable of rough road condition
International standard heavy duty chassis and running system applied to cope with rough road condition.
2. Steel structure
High tensile steel material with tensile and high load capacity and advanced design to achieve lower weight with high carrying capacity, reduce operation cost.
3.Automatic welding
Submerged arc Automatic welding construction, Keypoint reinforces and purposeful welding avoid some parts easier lose welding according to experience support vehicle longer time working without repairing.
4.Quality Axles Suspensions and Brake System
BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safe and save tire cost Fix quality springs and suspensions, support longer service life, save maintenance cost.
5.We adopt the world famous brand of parts, like JOST, WABCO braking valve etc. And the main part is Hydraulic support system. It is stable and long service life.
Details Images
Rational Analysis design
Twist Lock
Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Anti-Tire abrasion Suspension
Break System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Moisture-proof LED lights
transportation at night
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Featured Tire
Double Coin /LingLong/Michelin/Triangle/Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Spare Tire
Equipped with a secure spare tire rack with optional spare tire
