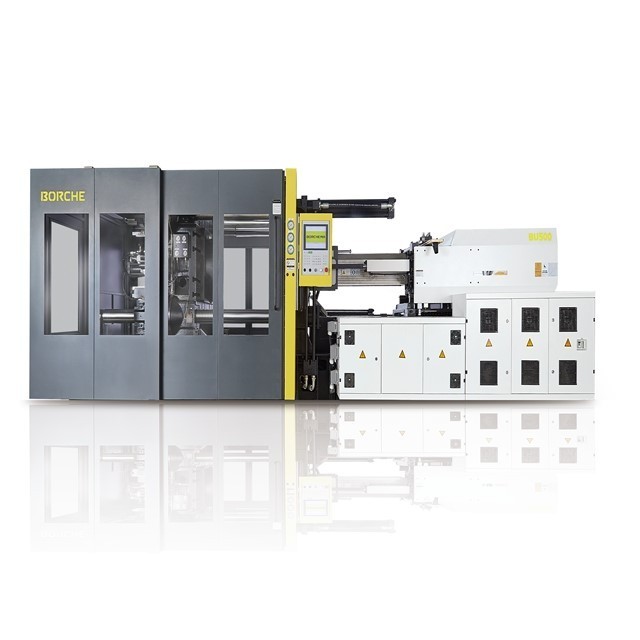

CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl
CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl
CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl
CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl
CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl
CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl
CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl
CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl

CANDAS BS120 BORCHE automatic injection molding machine making plastic disposable food container making machine bowl

FOB Reference Price: Get Latest Price
≥1 Sets
US $22000
≥2 Sets
US $21800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Mold Height(mm):
145 - 450 mm
Ejector Stroke(mm):
100 mm
Ejector Force(kN):
34.4 kN
Theoretical Shot Volume(cm³):
238 cm³
Injection Rate (g/s):
50 g/s
Injection Weight (g):
20 g
Screw Speed (rpm):
1 - 222 rpm
Screw diameter (mm):
40 mm
Screw L/D Ratio:
20.5
Distance between Tie Bars:
410*410
Weight (KG):
3500 kg
Place of Origin:
Guangdong, China
Open Stroke(mm):
190 mm
Model Number:
BS120
Brand Name:
Borche
Power (kW):
8.8 kW
After-sales Service Provided:
Overseas third-party support available
Injection pressure:
212MPa
Color:
Customrized
LANGUAGE:
English
Product name:
Plastic Injection Moulding Machine
Plastic Type:
ABS.AS.PS.HIPSPP.LDPE.HDPE.PMMD.PA6.POM.PCPVC.PET.PBT. TPE(PE)
Marketing Type:
New Product 2020
Application:
Inserting Plastic Products
Keyword:
injection molding machine
Usage:
Injection Molding Machine Making Plastic Injection

Quick Details

Distance between Tie Bars(Width)(mm):
410mm
Distance between Tie Bars(Height)(mm):
410mm
Plasticizing Capacity(g/s):
20
Mold Height(mm):
145 - 450 mm
Ejector Stroke(mm):
100 mm
Ejector Force(kN):
34.4 kN
Theoretical Shot Volume(cm³):
238 cm³
Injection Rate (g/s):
50 g/s
Injection Weight (g):
20 g
Screw Speed (rpm):
1 - 222 rpm
Screw diameter (mm):
40 mm
Screw L/D Ratio:
20.5
Distance between Tie Bars:
410*410
Weight (KG):
3500 kg
Place of Origin:
Guangdong, China
Open Stroke(mm):
190 mm
Model Number:
BS120
Brand Name:
Borche
Power (kW):
8.8 kW
After-sales Service Provided:
Overseas third-party support available
Injection pressure:
212MPa
Color:
Customrized
LANGUAGE:
English
Product name:
Plastic Injection Moulding Machine
Plastic Type:
ABS.AS.PS.HIPSPP.LDPE.HDPE.PMMD.PA6.POM.PCPVC.PET.PBT. TPE(PE)
Marketing Type:
New Product 2020
Application:
Inserting Plastic Products
Keyword:
injection molding machine
Usage:
Injection Molding Machine Making Plastic Injection
Product Description
DESCRIPTION OF BS120
MODEL INTERNATIONAL CLASS NO.
UNIT
BS120
INJECTION UNIT
SCREW DIAMETER
MM
40
SHORT VOLUME
cm³
238
SHOT WEIGHT(PS)
g
225
SHOT WEIGHT(PS)
OZ
8
INJEDTION PRESSURE
MPa
162
SCREW L/D RATIO
L/d
20.5
INJECTION STROKE
mm
190
SCREW ROTARY SPEED MAX.
rpm/min
222
NOZZLE CONTACT FORCE
KN
30
NOZZLE STROKE
mm
250
CLAMPING UNIT
CLAMPING FORCEclamping force
KN
1200
OPENING STROKE
mm
340
PLATEN SIZE
mm×mm
610*610
SPACE BTW.TIE BARS
mm×mm
410*410
DAYLIGHT MAX.
mm
790
MOLD THICKNESS(MIN~MAX)
mm
145-450
EJECTION STROKE
mm
100
EJECTOR FORCE
KN
34.4
EJECTOR PIN
nuit
4+1
POWER UNIT
SYSTEM PRESSURE
Mpa
17.5
PUMP MOTOR
KW
11
HEATING CAPACITY
KW
8.8
NO.OF HEATER ZONES
uint
4
GENERAL UNIT
OIL TANK CAPACITY
L
180
MACHINE DIMENSIONS
m×m×m
4.5*1.38*1.73
MACHINE WEIGHT
KG
3500

BS component brand list

Hydraulics
Internal gear pumps
Pressure Sensor
Hydraulic valve
Plasticizing Motor
Hydraulic motor for clamping
High pressure hydraulic Hoses
Electrics/Electronics
Servo Motor
Servo Driver
Proximity Switch
Photoelectric Switch
Position Switch
Three Phase Automatic Breaker
AC Magnetic Contactor
Heater Relay
Solid state reply
Intermediate relay
Linear Transducer
Computer Controller
Others
Screw &barrel
Platen
Lubrication System

Hydraulics
Sunny
Danfoss / IFM
Yuken / TOKIMEC
Calzoni/Rivazzi /STF
Ji Ning Li Ke /Dali
Alfagomma
Electrics/Electronics
BORCHE
Inovance
Sick/ Omron
Sick/ Omron
Nais/ Schneider
ABB/Schneider
Siemens/Schneider
Siemens/Schneider
Carlo/Crydom
Carlo/Schneider
TTC/Vishay
KEBA
Others
Material : 38CrMoAl
QT500
Herg

Hydraulics
US/made in China
Demark/Germany
Japan/USA/Germany
Italy/China
China
Italy
Electrics/Electronics
China
China
Germany/Japan
Germany/Japan
Japan/France
Sweden-Swiss J.V/Germany
Germany/France
Germany/France
Swiss&USA
Swiss
USA
Austria
Others
China
China-Hong Kong J.V
Japan

BS-III machine features

Injection Unit
Double-injection cylinder
Double-carriage cylinder
nozzle purge cover
linear guide rail
three kinds screw as option for every machine
Nozzle contact force adjustment function
nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail
Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication
Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
self-sealing filter (above BT800)
nozzle moving function √
Electric and control part
KEBA controller
language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
clamping force auto-adjust
CAN interface
injection 6 stage/pressure holding 5 stage/charge 5 stage
mold clamp/open 5 stage /ejection 2 stage


Detailed Images

MOVING PLATEN CLAMPING

1-Tie bars move across clamping cylinder, no touch with seals, lessen pressing leakage; Module type clamping cylinder, can be assembled and disassembled together, easy for maintenance.


2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast and precise locking.


3-Clamping cylinder assembled in the moving platen can balance the load of mold, avoiding mold forward, improve stability of moud open and clamping movement.


SUPER LONG LASTING TIE BAR

During high pressure locking, four tie bars under equal force, no unbalance loading occured, avoiding tie bar broken theoretically.



Adopt transparent front safety door design, equipment monitoring is more intuitive


The machine is equipped with more than 20
nameplates, humanized design, always remind the operator to pay attention to safety

INNOVATED INJECTION STRUCTURE

1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection supporting made by one piece casting, is rigid and compact.

2-Double carriage cylinder insures injection unit better centering, and movement stable.

3-Adopt double - beam - shift structure, the
platform is good to the neutral, the work is more stable

MACHINE SIZE

The machine shape is designed according to ergonomics, the machine appearance and operation performance is more humanized

After optimization, the rigidity of machine structure is greatly improved

The clamping frame is fully hollowed-out, which can adapt to the full automatic production system of three conveyor belts at the same time


Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
710×240×210
Weight
1.9T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
710×240×210
Weight
1.9T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
