Quick Details
-
Brand Name:
-
KuWFi
-
Model Number:
-
8F2G
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

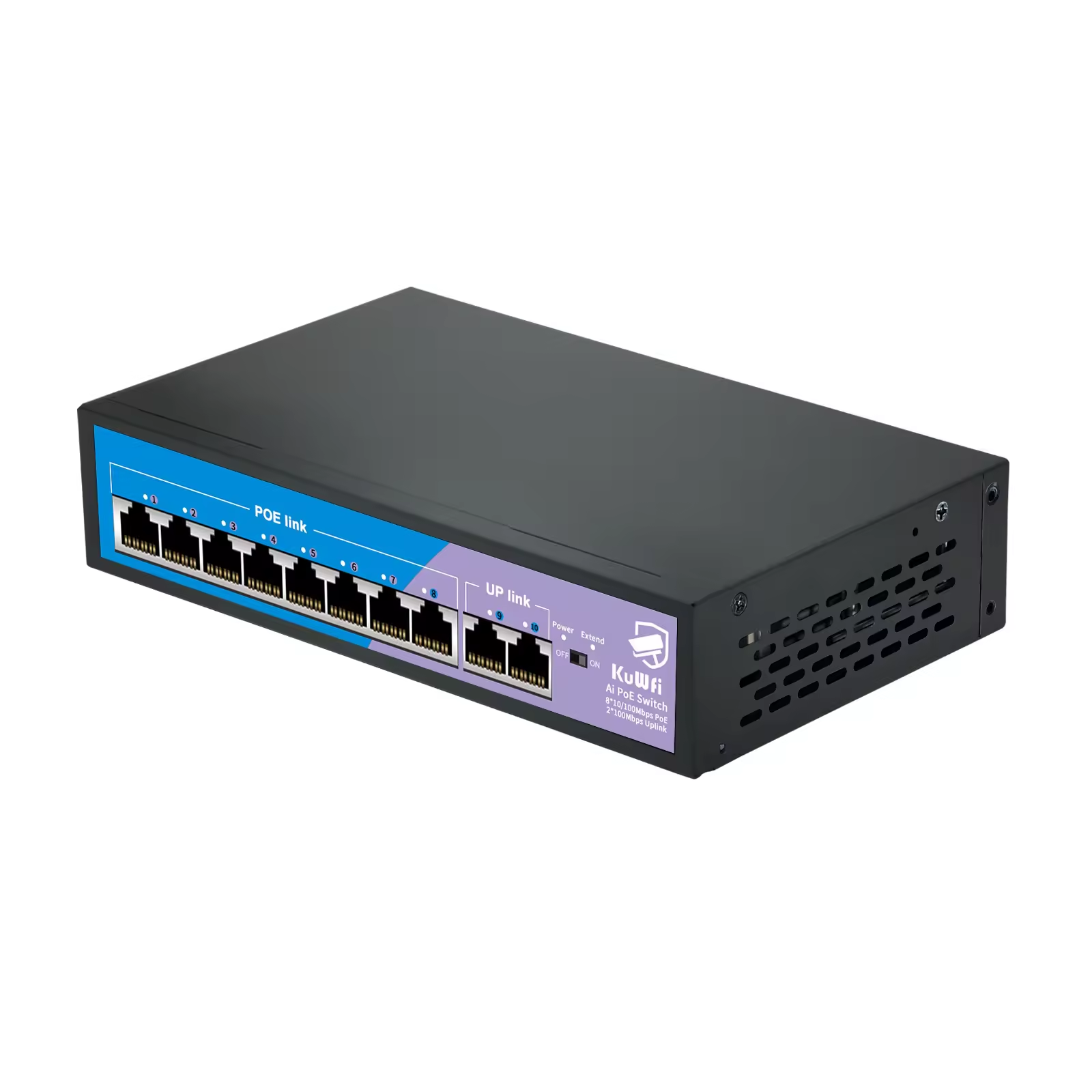

10 Port POE Switch
-
Output Power:
-
15.4W/30W IEEE802.3af/at
-
Power Pin:
-
Both 1/2+,3/6-
-
Whole Power:
-
≤96W (52V 1.8A)
-
POE Protocol:
-
IEEE 802.3af/IEEE 802.3at
-
POE Type:
-
End-span
-
Power Distance:
-
≤250m
-
Switch Capability:
-
1.6Gbps
-
Forwarding Mode:
-
Store and forward
-
Warranty:
-
1years
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2.6gBPS
-
Brand Name:
-
KuWFi
-
Model Number:
-
8F2G
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
10 Port POE Switch
-
Output Power:
-
15.4W/30W IEEE802.3af/at
-
Power Pin:
-
Both 1/2+,3/6-
-
Whole Power:
-
≤96W (52V 1.8A)
-
POE Protocol:
-
IEEE 802.3af/IEEE 802.3at
-
POE Type:
-
End-span
-
Power Distance:
-
≤250m
-
Switch Capability:
-
1.6Gbps
-
Forwarding Mode:
-
Store and forward
-
Warranty:
-
1years
Specification
Specification
|
POE Port
|
1 to 8 support IEEE802.3AF/AT Standard
|
|
Network Standard
|
IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
|
|
Network Medium
|
10/100BASE-TX:5 class and above non shielded twisted pair
|
|
Forwarding Rate
|
10BASE-T:14880PPS/port
100BASE-tx:14800pps/port |
|
MAC Address
|
MAC address table 2K
|
|
Port Function
|
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
LED Indicator
|
LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extend
|
|
Working Environment
|
Working temperature:-10°-- 55°C
|
|
Weight
|
1kg
|
|
Size
|
200mm*120mm*45mm(L*W*H)
|
feature:
1. the 8F2G is 8*10/100+2*10/100 POE switch 2.support PoE power up to 30W for each PoE port 3. Auto detect non PoE device and PoE device
5. widely used in home,office, and dormitory network expansion.such as computer, printers, smart tv,etc.
