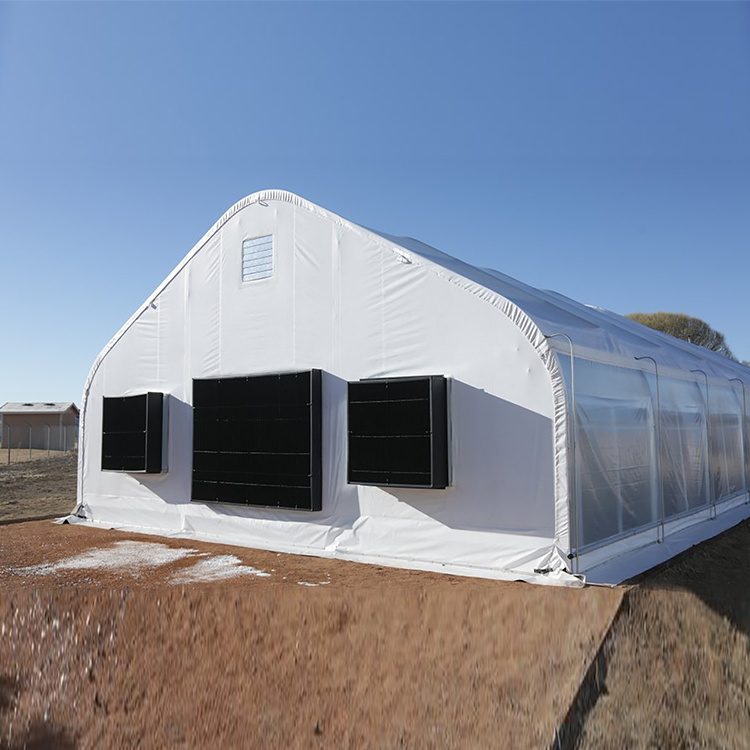

Light Deprivation Greenhouse grants growers the abilities to control light cycle (photoperiod), temperature, humidity, etc.
Allowing growers to harvest multiple times year round with automated blackout system.
Light dep greenhouse, also as blackout greenhouse is specially designed for professional cultivation and precise management of high-value crops.
As a result, growers are able to improve efficicency of land space and get higher returns fast and steadily using our light deprivation greenhouse systems.
- Product Details
- {{item.text}}
Quick Details
-
Instruction for use:
-
growing medicial plants
-
Model Number:
-
SK-BG-550
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Skyplant Blackout Deprivation Greenhouse
-
Product name:
-
All Top Quality Multi Span Light Deprivation Blackout Greenhouse
-
Features:
-
temperature control, recyclable and eco friendly
-
Shoulder height:
-
3m
-
Span:
-
multiple of 8m
-
Roof height:
-
4.7m
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Advantage of greenhouse:
-
low cost, easy assemble, and high efficiency
-
Application:
-
medical planting for USA,Canada
-
Ventilation:
-
Roof & Side Ventilation
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
Skyplant
-
Instruction for use:
-
growing medicial plants
-
Model Number:
-
SK-BG-550
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Skyplant Blackout Deprivation Greenhouse
-
Product name:
-
All Top Quality Multi Span Light Deprivation Blackout Greenhouse
-
Features:
-
temperature control, recyclable and eco friendly
-
Shoulder height:
-
3m
-
Span:
-
multiple of 8m
-
Roof height:
-
4.7m
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Advantage of greenhouse:
-
low cost, easy assemble, and high efficiency
-
Application:
-
medical planting for USA,Canada
-
Ventilation:
-
Roof & Side Ventilation
Product Description
Features of Light Deprivation Greenhouse
Specification
|
Name
|
Specification
|
Remarks
|
|
|
Length
|
105ft, 120ft, 144ft
|
All greenhouse structures and control systems can be customized according to your requirements.
|
|
|
Width
|
30ft
|
|
|
|
Wind Load
|
≤0.35KN/m²
|
|
|
|
Snow Load
|
≤0.25KN/m²
|
|
|
|
Dead Load
|
15KG/m²
|
|
|
|
Control System
|
Automatic Control System for Light Deprivation;
Cooling Fan&Pad. Top Ventilation; Temperature/Humidity/Light Control System; 220v, 230v, 380v, ph1, ph3, 50Hz, 60Hz Available. |
|
|
|
Optional System
|
Side/Top Ventilation;
Lighting System;Cooling/Heating/Dehumidifier System;Drip/Micro Irrigation System; Ebb&Flow Hydroponic Rolling Bench. |
|
|
Product details
Light Dep Greenhouse Characteristics
» Light dep systems are customized for individual greenhouse.
» Great flexibility for staging crop cycles.
» Prevent light contamination from neighbors, street lights, etc.
» Reduce supplemental light reflecting out of greenhouse at night.
» New blackout curtain offers simplicity, ease of installation, operation and control.
» Blackout curtains are UV-Stabilized for longest lifespan.
» Daylight control and additional energy savings.
» Great flexibility for staging crop cycles.
» Prevent light contamination from neighbors, street lights, etc.
» Reduce supplemental light reflecting out of greenhouse at night.
» New blackout curtain offers simplicity, ease of installation, operation and control.
» Blackout curtains are UV-Stabilized for longest lifespan.
» Daylight control and additional energy savings.
|
Greenhouse Frame Parameter
|
|
|
||
|
Name
|
Specification
|
Materials
|
||
|
Arch
|
φ60*2.0mm bows, 2m spacing
|
Hot-dip galvanized steel tube, with zinc coated 275g/m²;
Anti-rust for 10~15 years, structure can be customized. |
||
|
Roof Purlin
|
7 runs of φ32*1.5mm tube
|
|
||
|
Truss Supports
|
50*30*1.5mm pipe
|
|
||
|
Derrick and Brace
|
50*30*1.5mm
|
|
||
|
Door
|
1.5*2m
|
Aluminum alloy frame
|
||
Greenhouse Covering Material:
Greenhouse is covered with PE film on top/sides,and iron sheets on both ends.
Covering Film Thickness: 150/200 micron
Global Light Transmission: ≥90%
Diffusion: ≥20%
UV Transmission: 300-390%
Tear Resistance: 15gf/mic
Dart Drop: 530/1000G
Life Span: 5-6 years for 150 micron, 6-8 years for 200 micron
Covering Film Thickness: 150/200 micron
Global Light Transmission: ≥90%
Diffusion: ≥20%
UV Transmission: 300-390%
Tear Resistance: 15gf/mic
Dart Drop: 530/1000G
Life Span: 5-6 years for 150 micron, 6-8 years for 200 micron
Advantages of PE film:
Anti-dripping, anti-fog, anti-aging, high permeability, good light transmission, good transparency and heat scalability, water
proof, moisture proof.
Anti-dripping, anti-fog, anti-aging, high permeability, good light transmission, good transparency and heat scalability, water
proof, moisture proof.
Three-layer Inner Blackout System
* The light deprivation screen is designed for sensitive plants that need photo-period control;
* 100% shading rate, UV guarantee 5 years;
* The light is reflected by the aluminum foil on the surface of the shading curtain, during the light-dark period, unwanted light
accumulation can be prevented.
* Although made of 3 layers, the closed curtain can still be collapsed into a small size, to ensure that the crop in its open to
get maximum light. Has a good water permeability, the bottom of the curtain will not form condensation droplets.
* Gearmotor with control box can open and close the shading net, including the timer.
* 100% shading rate, UV guarantee 5 years;
* The light is reflected by the aluminum foil on the surface of the shading curtain, during the light-dark period, unwanted light
accumulation can be prevented.
* Although made of 3 layers, the closed curtain can still be collapsed into a small size, to ensure that the crop in its open to
get maximum light. Has a good water permeability, the bottom of the curtain will not form condensation droplets.
* Gearmotor with control box can open and close the shading net, including the timer.
