Quick Details
-
Brand:
-
RUIAO
-
Model:
-
TP
-
Core Components:
-
material nylon PA66 drag chain carrier
-
Product Name:
-
Machine Cable Drag Chain
-
Function:
-
Protected Cable
-
Application:
-
Machine Tools Accessories
-
Temperature Range:
-
-40 to130
-
Impact Strength:
-
50KJ/m2
-
TENSILE STRENGTH:
-
180N/MM2
-
FRICTION FACTOR:
-
0.3
-
FALME RESISTANCE:
-
HB(UL94)
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Brand Name:
-
RUIAO
-
Material:
-
nylon PA66
-
Weight (KG):
-
0.5
-
Brand:
-
RUIAO
-
Model:
-
TP
-
Core Components:
-
material nylon PA66 drag chain carrier
-
Product Name:
-
Machine Cable Drag Chain
-
Function:
-
Protected Cable
-
Application:
-
Machine Tools Accessories
-
Temperature Range:
-
-40 to130
-
Impact Strength:
-
50KJ/m2
-
TENSILE STRENGTH:
-
180N/MM2
-
FRICTION FACTOR:
-
0.3
-
FALME RESISTANCE:
-
HB(UL94)
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Product Description

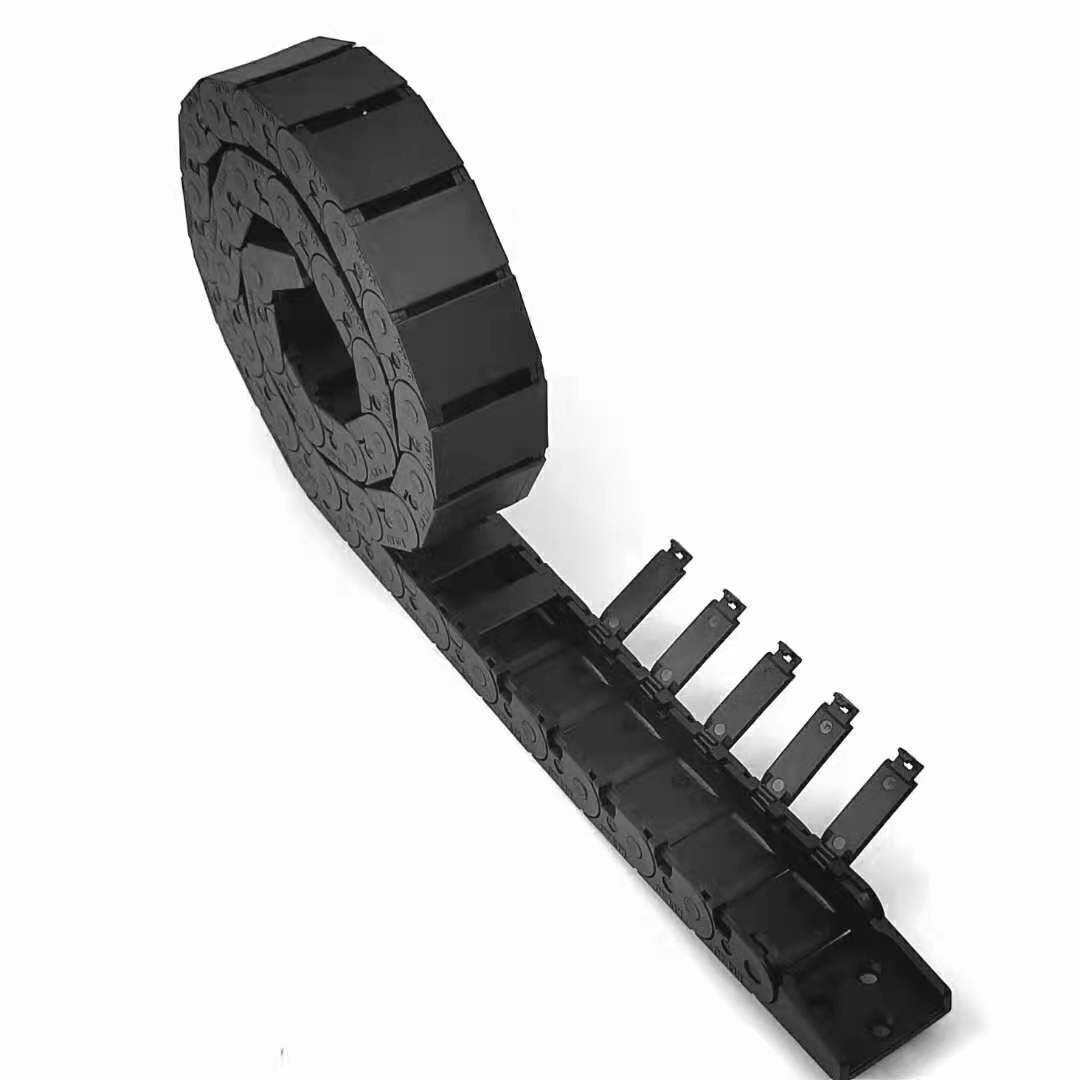

Small size 7*7/ 8*8 /10*10 flexible plastic cable drag chain nylon cable carrier cable track
Basic parameters of drag chain guide
1.Material: reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
2.Resistances:It is oil and salt resistant.
3.operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
4.Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)
2.Resistances:It is oil and salt resistant.
3.operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
4.Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)
Detailed Images
|
Type
|
Inside H*W
|
Outside H*W
|
Bending radius
|
Structure
|
|
TP7*7
|
7*7
|
10.1*12.5
|
15
|
Bridge
|
|
TP8*8
|
8*8
|
11.2*14
|
15
|
|
|
TP10*10
|
10.4*10.5
|
14*17
|
18/28
|
Bridge
Unitary pitch |
|
TP10.15
|
10.4*15.5
|
14*22
|
|
|
|
TP10.20
|
10.4*20.5
|
14*27
|
|
|
|
TP10.25
|
10.4*25.5
|
14*32
|
|
|
|
TP15.15
|
15*15
|
20.2.25
|
|
Low-cover openable |
|
TP15.20
|
15*20
|
20.2*30
|
|
|
|
TP15.30
|
15*30
|
20.2*40
|
|
|
|
TP15.40
|
15*40
|
20.2*50
|
|
|
|
TP15.50
|
15*50
|
20.2*60
|
|
|
|
TP18.18
|
18*18
|
23*29
|
|
Low-cover openable |
|
TP18.25
|
18*25
|
23*36
|
|
|
|
TP18.35
|
18*35
|
23*46
|
|
|
|
TP18.40
|
18*40
|
23*51
|
|
|
|
TP18.50
|
18*50
|
23*61
|
|
|
Packing & Delivery
Application
Our Company
Certifications
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
