●Founded in 2007 and covers an area of 8500 m2, with over 25 staff; mainly OEM different designs of weighbridges.
●Company have received
ISO9001, ISO 14001, SGS, TUV certificates
.
●For each order, could make
COC, PVOC, FORM E
certificates.
●Comapny also manufacture floor scales, platform scales, jack pallet scales, crane scales etc.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
zhuoyuan
-
Model Number:
-
JSF30
-
Material:
-
Stailess steel, Stainless Steel
-
Pan size:
-
190*230mm
-
Screen quantity:
-
2 pcs
-
Application:
-
Kitchen use
-
Capacity:
-
30kg(3kg/6kg/15kg optional)
-
Function:
-
Pricing scale/Counting scale
-
Certification:
-
OIML/ISO9001/Ex/SG,S/TUV/COC/PVOC/FORM E
-
Garantee:
-
1 year
-
MOQ:
-
1 pcs
-
Color:
-
100%
Quick Details
-
Type:
-
Bench Scale, Mechanical Scale
-
Power Supply:
-
110v/220v
-
Display Type:
-
LED/LCD
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
zhuoyuan
-
Model Number:
-
JSF30
-
Material:
-
Stailess steel, Stainless Steel
-
Pan size:
-
190*230mm
-
Screen quantity:
-
2 pcs
-
Application:
-
Kitchen use
-
Capacity:
-
30kg(3kg/6kg/15kg optional)
-
Function:
-
Pricing scale/Counting scale
-
Certification:
-
OIML/ISO9001/Ex/SG,S/TUV/COC/PVOC/FORM E
-
Garantee:
-
1 year
-
MOQ:
-
1 pcs
-
Color:
-
100%

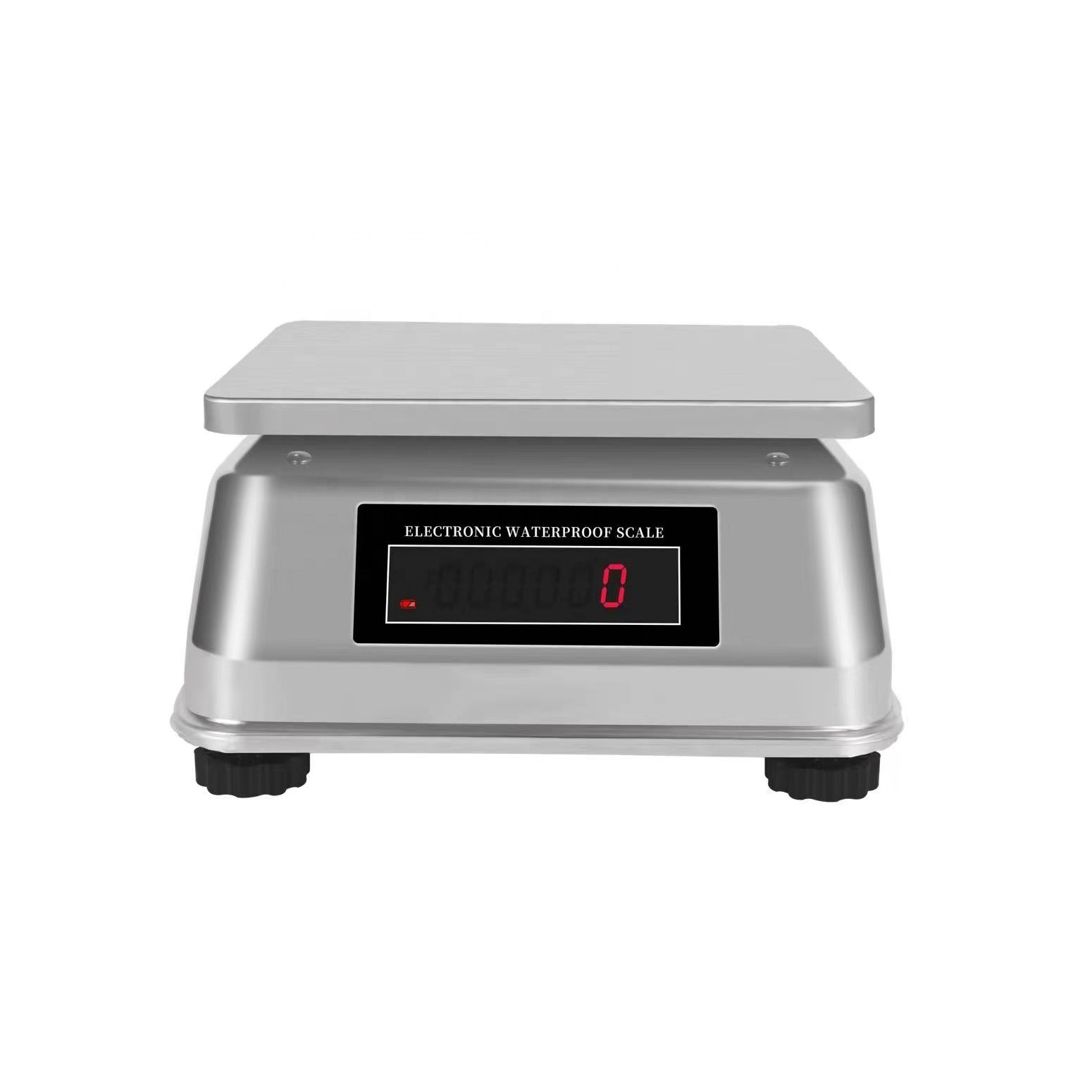

JSF serial warerproof stainless steel scale specifications:
Precautions
General considerations
1 Please read the instruction manual carefully before use in order to have a better
understanding of this product and make it easier to use.
2 This product is a measuring instrument subiect to compulsory verification, lt should be
checked regularly at the Metrology Department to maintain its accuracy.
3 lt is strictly forbidden to overload, and it is strictly forbidden to throw heavy objects on
the scale body and gravity impact the scale body, which may damage the machine parts and is
not covered by the warranty.
4 Do not touch chemicals such as solvents to prevent corrosion.
5 Keep the scale clean and hygienic, and there should be no other matter around the
weighing pan, otherwise it will affect the accuracy of the scale
6 There is a lead seal on the bottom of the scale, users should not open it by themselves. lf
the scale fails, please contact the dealer or manufacturer
Precautions for the use of sealed lead-acid batteries
2.1 The battery used in this scale is a maintenance-free sealed lead-acid battery, which has a
low self-discharge rate, a long life, and a working temperature of -10° Co+40° C. At about
20°C,the number of cycles of charging and discharging is 300 times.
2.2 When replacing the battery, pay attention to the positive and negative poles of the
battery-must not be reversed, otherwise it will damage the battery and cause burning. The
correct connection method is: the red wire is connected to the red marked plug of the battery
and the black wire is connected to the black marked plug of the battery.
2.3 After the battery is used up (low battery display), it should be charged in time. lf the scale is not used for a long time, it should be fully charged before storage, and it should becharged at least once every 3 months.
2.4 As the number of charge and discharge increases, the capacity of the battery wilgradually decrease, that is, the working time of the battery after charging becomes shorterwhich is a characteristic of rechargeable batteries, lf you want to charge again soon after charging, vou need to replace the battery at this time.
2.5 Since lead-acid batteries are consumable parts, and their life span is related to the user'susage method, the battery is only guaranteed for one month
|
Model
|
JSF600
|
JSF1.5
|
JSF3
|
JSF6
|
JSF15
|
JSF30
|
|||||
|
Max capacity
|
600g
|
1500g
|
3000g
|
6000g
|
15kg
|
30kg
|
|||||
|
Accuracy
|
0.2g
|
0.5g
|
1g
|
2g
|
5g
|
10g
|
|||||
|
Division d1
|
0.1g
|
0.2g
|
0.5g
|
1g
|
2g
|
5g
|
|||||
|
Division d2
|
0.05g
|
0.1g
|
0.2g
|
0.5g
|
1g
|
2g
|
|||||
|
Pan size
|
19*23cm
|
|
|
|
|
|
|||||
