Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
CPE
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
QX312 MIFI
-
Description:
-
4G Powerbank Mifi
-
Protocol:
-
LTE TDD/FDD WCDMA
-
WIFI Protocol:
-
IEEE 802.11n/g/b
-
Frequency:
-
2.4G
-
Antenna:
-
Internal Antenna connector
-
External Interface:
-
Micro SIM card/Standard USB Type C*1,USB Type A*1
-
LED indicator:
-
WIFI/Connection *1,Power display*4
-
Power Supply:
-
USB output5V/2.4A USB input5V/2.4A
-
Battery:
-
3000mAh
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
CPE
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
QX312 MIFI
-
Description:
-
4G Powerbank Mifi
-
Protocol:
-
LTE TDD/FDD WCDMA
-
WIFI Protocol:
-
IEEE 802.11n/g/b
-
Frequency:
-
2.4G
-
Antenna:
-
Internal Antenna connector
-
External Interface:
-
Micro SIM card/Standard USB Type C*1,USB Type A*1
-
LED indicator:
-
WIFI/Connection *1,Power display*4
-
Power Supply:
-
USB output5V/2.4A USB input5V/2.4A
-
Battery:
-
3000mAh

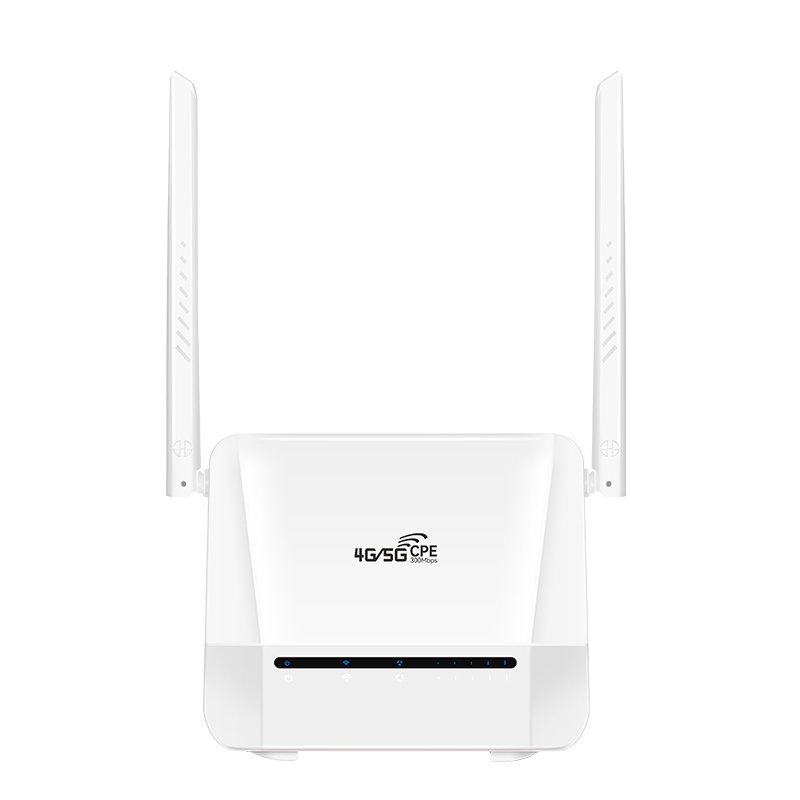

300Mbps 2.4G WiFi LTE Router
4G Wifi Router mini router 4G 5G Lte Wireless Portable Pocket wi fi Mobile Hotspot Car Wi-fi Router With Sim Card Slot
Product Description
This CPE doesn't include SIM card , user need to buy a SIM card from local operators to use this device .
|
Air Interface
|
Technical Standard
|
Compatible with WCDMA, FDD-LTE，TDD-LTE
Default 802.11b/g/n |
|
|
Frequency
|
LTE:B1/3/5/7/8/20/38/40/41
WCDMA:B1/5/8 |
|
|
WIFI
|
2.4G, WIFI 2*2 MIMO，802.11 b/g/n
|
|
Performance
|
Maximum Data Throughput
|
LTE CAT 4
FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps (Theoretical peak rates) |
|
Hardware
|
Receive Diversity
|
Support
|
|
|
MIMO
|
Support 2x2 MIMO
|
|
|
BB Chipset
|
ZX297520V3
|
|
|
WiFi Chipset
|
RTL8192ES
|
|
|
WiFi Users
|
16
|
|
|
power consumption
|
<10W
|
|
|
Power Voltage
|
DC12V/1A
|
|
|
USIM/SIM
|
3FF SIM card
|
|
|
LED
|
Power/Battery, Network, Signal Strength, WIFI
|
|
|
Antenna
|
2*WIFI; 2*LTE
|
|
|
Buttons
|
Power,Reset,WPS,WIFI
|
|
|
Ethernet
|
1*RJ45, 10BaseT/100Base/ automatic adaptive port
|
|
|
RJ11
|
RJ11*1
|
|
|
ESD
|
Contact±8KV、Air±10KV
|
|
|
Battery
|
optional 5000-9000mAh
|
|
Software
|
SW Update
|
TR069 & Local
|
|
|
WIFI Mode
|
AP/STATION mode
|
|
|
WIFI Security
|
None & WPA-PSK& WPA2-PSK
|
|
|
Voice
|
VoLTE & CS Domain voice (Optional)
|
|
|
IPv4
|
Support IPv4
|
|
|
IPv6
|
Support IPv6
|
|
|
Firewall
|
Support
|
|
|
Data Statistics
|
Support
|
|
|
SIM Lock
|
Support
|
|
|
HTTP
|
Support
|
|
|
DMZ
|
Support
|
|
Environment
|
Operating Temperature
|
Normal:-10°C to +60°C;
|
|
|
Storage Temperature
|
-20° C to +85° C
|
|
|
Humidity
|
5%~ 95% (no condensed)
|
