Quick Details
-
Oiled or Non-oiled:
-
Non-oiled
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
China mainland
-
Outer Diameter:
-
100 - 150 mm
-
Thickness:
-
10 - 40 mm
-
Grade:
-
Q235
-
Type:
-
Welded Steel Pipe
-
Product name:
-
Cast basalt lined steel pipe / elbow / bend
-
Bulk Density:
-
3g/cm3
-
Moh's Hardness:
-
9
-
Shape:
-
Straight, Elbow, Tees, Y-piece
-
Mode of Shaped:
-
Dry Pressing
-
Connection:
-
Flange or Welding
Quick Details
-
Section Shape:
-
Round
-
Surface Treatment:
-
Painted
-
Tolerance:
-
±1%
-
Oiled or Non-oiled:
-
Non-oiled
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
China mainland
-
Outer Diameter:
-
100 - 150 mm
-
Thickness:
-
10 - 40 mm
-
Grade:
-
Q235
-
Type:
-
Welded Steel Pipe
-
Product name:
-
Cast basalt lined steel pipe / elbow / bend
-
Bulk Density:
-
3g/cm3
-
Moh's Hardness:
-
9
-
Shape:
-
Straight, Elbow, Tees, Y-piece
-
Mode of Shaped:
-
Dry Pressing
-
Connection:
-
Flange or Welding

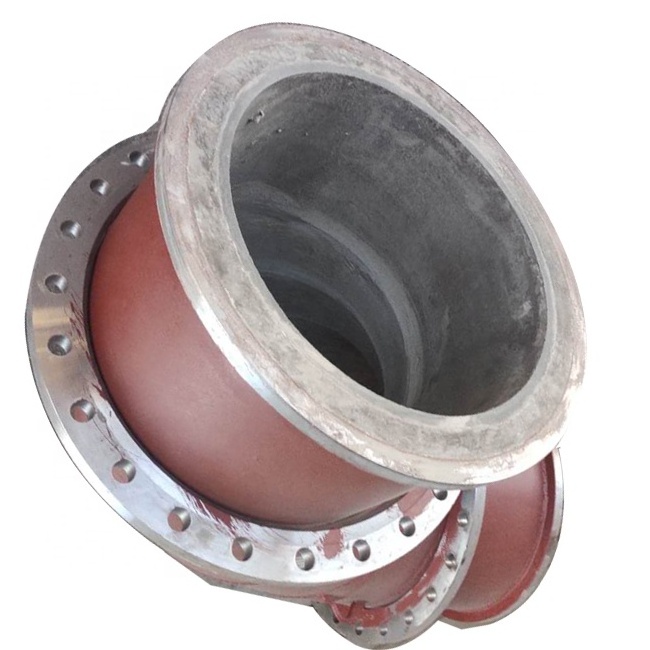

Cast basalt lined steel pipe / elbow / bend with good acid resistance
|
Items |
Index |
|
Alumina content |
12.52-13.52% |
|
Bulk Density |
≥3g/cm³ |
|
Vickers Hardness |
≥720kg/mm2 |
|
Compressive Strength |
≥600MPa |
|
Abrasive resistance |
≥0.07 g/cm2 |
|
Bending Strength |
≥60MPa |
|
Thermal Conductivity 20℃ |
20W/m.k |
|
Coefficient of Thermal Expansion |
8.92×10 -6 m/×m.k |
|
Modulus of Elasticity 20℃ |
1.67X 105 MPa |
|
Corrosion resistance |
Good |
Technical Datas of Steel :
Q235 steel plate for Normal Chemical Analysis (%):
|
Cr |
C |
Mn |
Si |
Other |
|
24%-30% |
4%-5% |
0.5%-2.5% |
0.5%-1.5% |
Less than 2% |
2. Brief Introduction:
Cast basalt lined steel pipe / elbow / bend with good acid resistance have an excellent performance of abrasive resistant and corrosion resistant, can be used as the pipeline lining in conveying wearable materials and corrosion materials.The combination of high rigidity of cast basalt ceramic and high elasticity of steel gives the pipe unmatchable features as an abrasion resistant, heat resistant and corrosion resistant material used in the variety of industries.Such as: electric power plant, chemical plant, metallurgy industry, mine and so on.
3. Manufacture Process:
4. Advantages:
1) Good abrasion resistance
As the wear surface, the cast basalt ceramic is 8 Mohs hardness, whose wear resistance is 10 times that of hi-chrome cast iron alloy pipes. It can make little wear loss of the pipe during running, which extend the service life of the equipment largely.
2) Good thermal stability and excellent corrosion resistance
-50-350 ℃ is ideal temperature for the cast basalt ceramic lined pipe, and the inner wall of the pipe is cast basalt plates or tubes which have unique chemical properties of wonderful acid and alkali resistance
3) Light Weight
The density is 3g/cm³,which is only half of the steel to reduce the load of equipment largely.
4) Easy and fast to fix on site
Welding, flange, flexible joint are available for fix with the equipment.
All the performance of Cast basalt lined steel pipe / elbow / bend with good acid resistance makes low project costs, the charges can be about 20-30% less than wear steel piping project.
5. Normal Specification:
Full range of Cast basalt lined steel pipe / elbow / bend with good acid resistance including straight pipes, bends, elbows, tees,Y-pieces, reducers,crosses and etc can be available from our factory.
Regarding the connection ways, we can provide with the normal way of welding or flange or to customize according to the customer's requirements.
Regular size of the ceramic lined pipe:
|
Nominal Diameter |
100~800 |
Or we can supply design according to customer's requirements. |
|
Thickness of Wear-resistant Liner(mm) |
3~50 |
|
|
Thickness of Steel pipe |
4~8 |
Remark: Contact us for more sizes.
