Quick Details
-
Output Speed:
-
30rpm
-
Weight (KG):
-
24 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ybang
-
Product name:
-
WPWDK Durst Irrigation Motoreductor
-
Weight:
-
4kg
-
Packing:
-
Wooden box/ carton
-
Ratio:
-
50
-
Material of housing:
-
Iron cast
-
Installation:
-
Horizontal or Vertical
-
Service:
-
OEM is available
-
Seal:
-
CTY, CFW, SKF or specified
-
Bearing:
-
C&U, NSK, SKF or specified
-
Lubricant:
-
Synthetic & Mineral
Quick Details
-
Gearing Arrangement:
-
Worm
-
Output Torque:
-
19n.m
-
Input Speed:
-
1500rpm
-
Output Speed:
-
30rpm
-
Weight (KG):
-
24 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ybang
-
Product name:
-
WPWDK Durst Irrigation Motoreductor
-
Weight:
-
4kg
-
Packing:
-
Wooden box/ carton
-
Ratio:
-
50
-
Material of housing:
-
Iron cast
-
Installation:
-
Horizontal or Vertical
-
Service:
-
OEM is available
-
Seal:
-
CTY, CFW, SKF or specified
-
Bearing:
-
C&U, NSK, SKF or specified
-
Lubricant:
-
Synthetic & Mineral

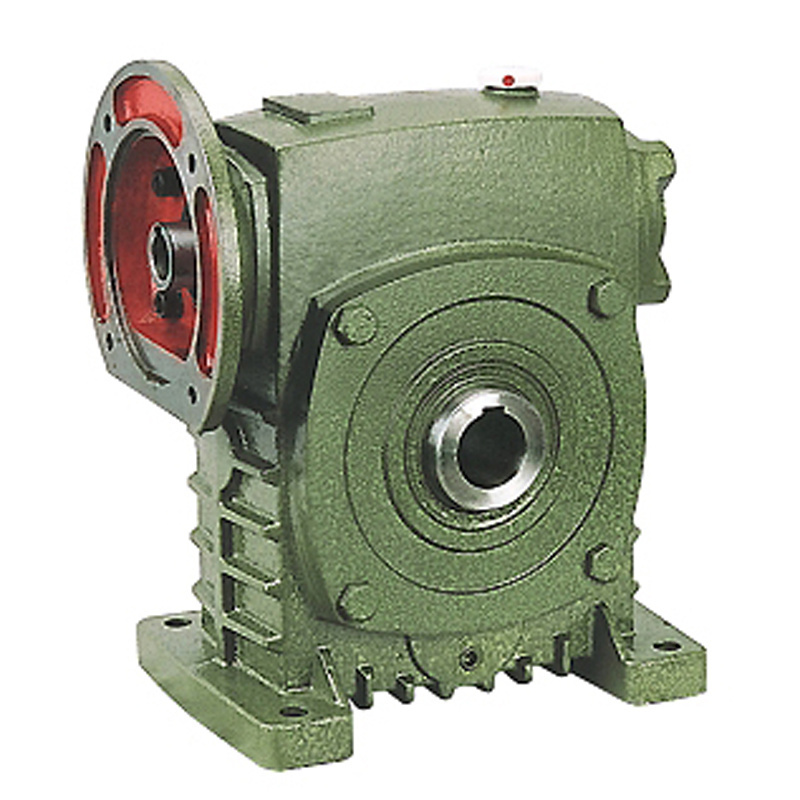

WPWDK Durst Irrigation Motoreductor
|
Type: |
WP series Single-stage Speed Reducer-Iron Worm Gear Box |
|
Model: |
WPWDK40 1:50 |
|
Others: |
40,50,60,70,80,100,120,135,155,175,200,250 |
|
Color: |
Blue/Green or on customer request |
|
Material: |
HT200 |
|
Input power: |
0.12kw(Under the case of input speed 1500rpm) |
|
Ratio: |
50 |
|
Output torque: |
19n.m |
|
Bearing: |
C&U, NSK, SKF or specified |
|
Seal: |
CTY, CFW, SKF or specified |
|
Product features: |
It adopts American technology with durability, stable transmission, large carrying capacity, low noise, compact structure, large transmission ratio and wide power. |
|
Application areas: |
Textile printing and dyeing, rubber and plastic machinery, building materials machinery, environment protection machinery, lifting machinery, food packaging, metallurgical machinery, petrochemical industry, stage machinery and new energy field. |
|
Lubricant: |
Synthetic |
|
Warranty: |
1Year |
Features of WP worm reducer
WP reducer model:
1. Single speed reducer : WPA, WPS, WPO, WPX,WPDA,WPDS,WPDO,WPDX,WPKA,WPKS,
WPDKA, WPDKS
2. Universal speed reducer :WPW, WPWA, WPWS, WPWO, WPWX, WPWT, WPWV, WPWD,
WPWDS, WPWDO, WPWDX, WPWDT, WPWDV, WPWK, WPWKA,
WPWKS, WPWKO, WPWKT, WPWKV, WPWDK, WPWDKA,
WPWDKO, WPWDKT, WPWDKV, WPDKZ WPDZ.
3. Double speed reducer: WPEA,WPEDA,WPES,WPEDS,WPEO,WPEDO,WPWEKO,WPWEDKO,WPWEK,
WPWEDK, WPEKA,WPEDKA,WPEKS,WPEDKS,WPWE,WPWED,WPEX,WPEDX
4. Multistage speed reducer : WPEEDA,WPEEO.
WP reducer Sizes: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200,250
Gearing arrangement is worm
Motor power is up to 33KW
Mounting position: foot mounted and flange mounted
Ratio Reduction: 1) single speed reducer: 10-60. 2) double speed reducer: 200-900
3) universal speed reducer: 10-60
Material: iron casting
Color: blue or green
Inner packing by carton, outer packing by wooden case.
It is possible to specialize the WP series reducer according to customer requirements.
WP worm gearbox Advantage:
1. Product advantages: High modular design, making all the series apply fewer components, it can conveniently equip electric motor or other driving forces of various types.
2. The cabinet applies integral and high-strength casting mode, which has high rigidity and vibration resistance performance.
3. The gear unit applies low-carbon alloy steel quenching gear grinding process and shape-correction technology, making the products have larger bearing capacity. The operation is reliable, which can decrease noise and improve efficiency. Transmission ratio is divided into details, the scope is wide. Combined type can obtain larger transmission ratio.
4. Gear unit is appropriate to be mounted at any space and any angle.
Gear reduction boxes are used to transfer rotation and torque from motor to working machine. Most reduction gear boxes are used to decrease speed by gears in the gear box.
Reduction gear box is much widely used in modern machinery systems, since it’s ratio can be up to 1:100 easily, which is much bigger than all gears box, and its demission is much smaller than all gears when ratio is same.
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
pls check the oil level in regular time.
(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
