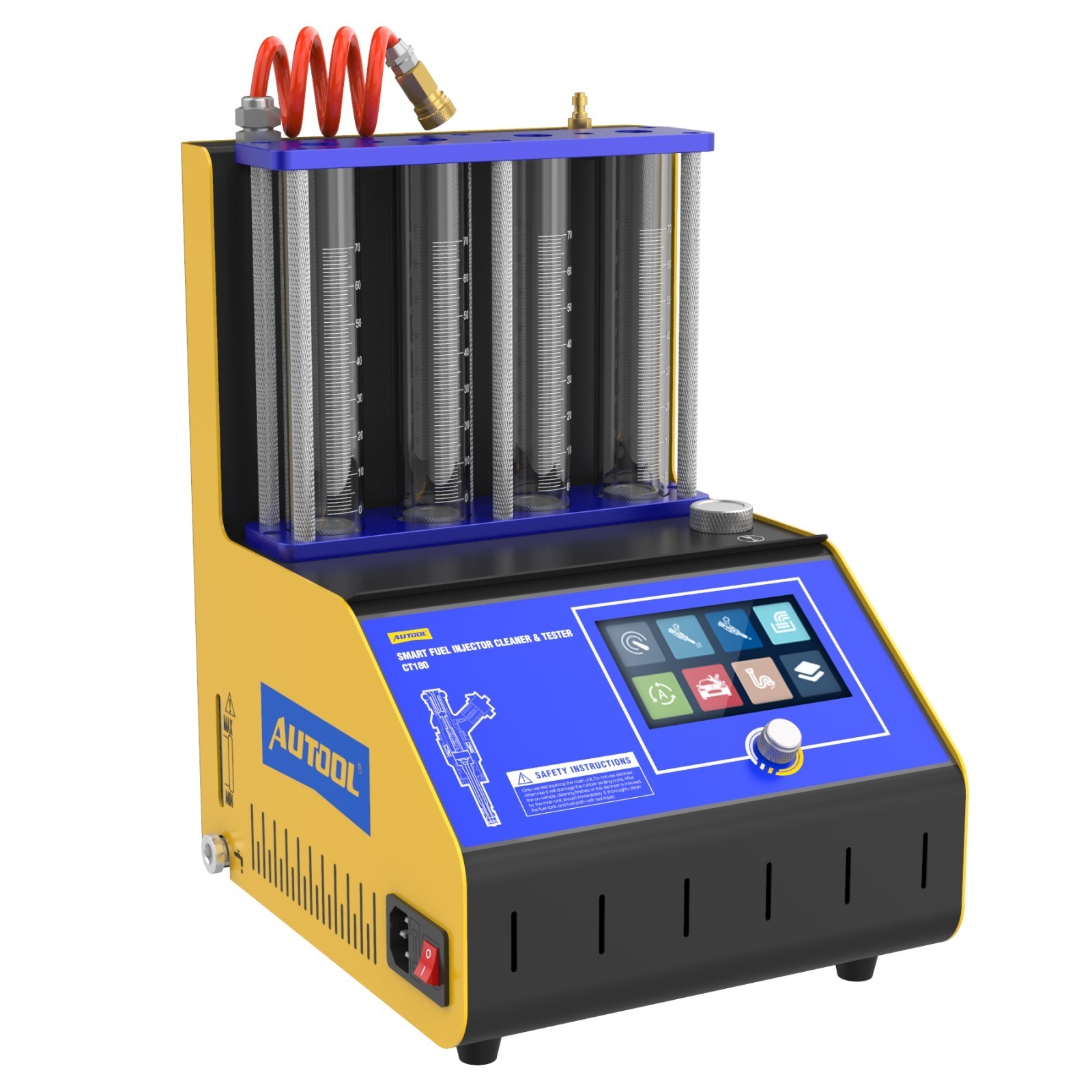

AUTOOL CT180 2021 New Auto Injector Cleaner And Tester Ultrasonic Smart Cleaning Machine Test Tool Fuel Injector Washer Cleaner

AUTOOL CT180 2021 New Auto Injector Cleaner And Tester Ultrasonic Smart Cleaning Machine Test Tool Fuel Injector Washer Cleaner

Brief introduction:
AUTOOL CT180 is an intelligent injector cleaning & testing equipment with intelligent control. The whole process can be operated by the touch screen or rotary knob to complete. Equipped with an ultrasonic cleaning tank, AUTOOL CT180 Fuel injector cleaner and Tester can generate an oscillating signal to the injectors to remove the stubborn carbon deposits from the injectors. It is possible to test injectors under different conditions, such as Sprayability test, Leakage test, Injecting flow test, etc. A comprehensive and powerful injector cleaner and tester machine most auto technicians always crave for.

Working conditions:
Temperature: -10~+40℃;
Relative humidity: < 85%;
Intensity of outer magnetic field: < 400A/m;
No flame within 2 meters.

Specifications:
Main unit power supply:  AC220V±10%, 50/60Hz; or AC110V±10%, 50/60Hz.
Main unit power: 150W
Dimension of main unit: 27cm x 31 cm x 34cm
Ultrasonic cleaner power: 60W;
Fuel pressure:0-10bar
Simulated RPM range: 20~ 10000rpm;
Pulse width: 0.5~ 25ms; step 0.1 ms;
Uniformity/Sprayability test duration: 1~20min
Leakage test duration: 1~30min
Injecting flow test duration: 3~120s
Automatic drain: 60s
Pressure unit: Bar, Psi, Kpa, mmHg, Kg/cm2
D imension: 30 5 x3 1 0x 340 mm
Weight: 8.8 kg  (Varies according to configuration)

[Intelligent Control Panel Design]

To deliver premium user experiences and make it more efficient to use, AUTOOL CT180 Fuel injector cleaner and Tester is designed with Touch Screen and Rotary Knob. With large 4.4-inch screen display, it is easy to observe various working parameters.

[Ultrasonic Cleaning Tech]

The AUTOOL CT180 intelligent injector cleaner and tester is equipped with a separate ultrasonic cleaning tank. The vibration signal generated by ultrasonic waves is applied to powerfully clean the surface and interior of the fuel injectors, so as to completely removing stubborn carbon buildup from the fuel injectors.

[Multiple Test Functions]

It can carry out Sprayability test, Leakage test, Injecting Flow test, Automatic test and many other testing functions. A variety of test parameters can be set to simulate injector testing under various operating conditions.

[Backlight Design & Level Gauge]

The glass tube can be observed through the level gauge during the test, so that the injector flow can be determined whether the flow is normal. At the same time, the backlight can assist in making the observation more carefully.

[Three Years Warranty, Lifetime Maintenance]

For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

Packing list:
1pc* AUTOOL CT180 Intelligent Fuel injector cleaner and Tester Main unit
1pc* Ultrasonic cleaning tank
1pc* Testing pad
1pc* Ultrasonic leaning stand
4pcs* Connector 1 (H19*25*10.5)
4pcs* Connector 2 (H19*25*13.5)
4pcs*Fine-tooth joint(H19*25*M12)
4pcs*Coarse joint(H19*25*G1/4-19)
3pcs*Plug (25*40*16.2)
4pcs*Reverse joint(25*40*16.2)
2pcs*Adjusting stud (M10*78)
2pcs*Compression screw(18*100*M10)
2pcs*Knurled nut(18*30*M10)
1pc* 4-oil separator(28*16*213)
1pc*Funnel (58*50*8.0)
1pc* Wrench for Oil draining(24*56*5)
20pcs* Sealing ring 7*2.65
4pcs*Seal ring 15.6*2.65
2pcs* power cables (EU US standard)
2pcs* Pulse signal lines
