Quick Details
-
Brand Name:
-
Shantui
-
Dimension(Long * Breadth * High):
-
6880*4130*3725mm
-
Width of track shoe:
-
460mm
-
Diesel engine:
-
Weichai WP4G90E235
-
Operating weight:
-
8t
-
Engine model:
-
QSB3.3
-
Blade capacity:
-
1.9M3
-
Track gauge:
-
1600mm
-
Blade type:
-
Straight tilt blade
-
Blade width:
-
2680MM
Quick Details
-
Machine Weight:
-
8 tons
-
Dozing Capacity:
-
4m³
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shantui
-
Dimension(Long * Breadth * High):
-
6880*4130*3725mm
-
Width of track shoe:
-
460mm
-
Diesel engine:
-
Weichai WP4G90E235
-
Operating weight:
-
8t
-
Engine model:
-
QSB3.3
-
Blade capacity:
-
1.9M3
-
Track gauge:
-
1600mm
-
Blade type:
-
Straight tilt blade
-
Blade width:
-
2680MM

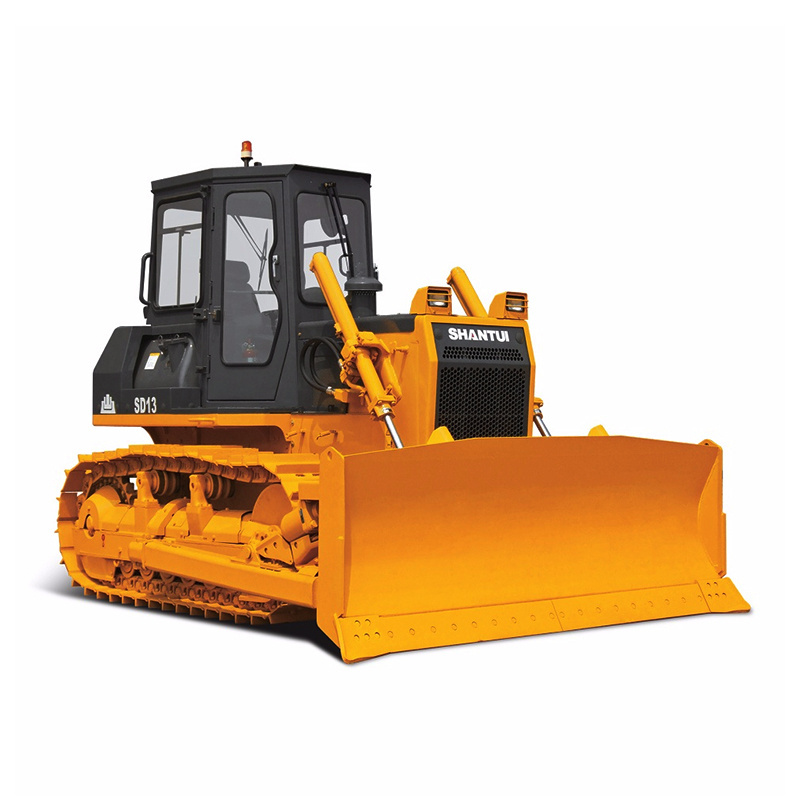

Shantui mini bulldozer/bulldozer price/mini dozer for sale
Shantui mini bulldozer/bulldozer price/mini dozer for sale
1.Rated Power: 59kW(80hp)
2.Engine Model: Weichai WP4G90E235
3.Operating Weight: 8Tons
1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5.The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
Paramerer: Shantui mini bulldozer/bulldozer price/mini dozer for sale
|
ITEM |
UNIT |
SD08 |
|
L*W*H (Ripper not included) |
mm |
3973*2553*2785 |
|
Operating weight (Ripper not included) |
t |
7.65 |
|
Engine |
- |
Weichai WP4G90E235 |
|
Rated power |
kW/rpm |
63/2350 |
|
Gradeability |
' |
30 |
|
Blade type |
- |
Straight tilt blade |
|
Blade width |
mm |
2553*890 |
|
Dozing capacity |
m 3 |
2.02 |
|
Ma* drop below ground of blade |
mm |
383 |
|
Lift height of blade |
mm |
850 |
|
Ripper type |
- |
- |
|
Ripping depth of ripper |
mm |
- |
|
Lifting height of ripper |
mm |
- |
|
Number of carriers (each side) |
- |
1 |
|
Number of track rollers (each side) |
- |
6 |
|
Number of track shoes (each side) |
- |
41 |
|
Width of track shoe |
mm |
460 |
|
Track gauge |
mm |
1450 |
|
Ground length and ground pressure |
mm/MPa |
2185-0.038 |
|
Pitch |
mm |
154.25 |
|
Forward speed |
km/h |
0-2.53 |
|
0-4.55 |
||
|
0-7.57 |
||
|
Reverse speed |
km/h |
0-2.76 |
|
0-4.95 |
||
|
0-8.26 |
