Quick Details
-
Model Number:
-
JZD-366
-
alarm:
-
audible and visual alarm ,automatic stop
-
conveyor speed:
-
22m/minutes(variable speed,adjustable)
-
conveyor load:
-
25kg(customized)
-
control panel:
-
LCD display screen
-
raw material:
-
SUS304 stainless steel
-
waterproof:
-
IP66
-
certification approval:
-
ISO9001,CE,HACCP
Quick Details
-
Warranty:
-
1
-
Type:
-
new
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
JZD-366
-
alarm:
-
audible and visual alarm ,automatic stop
-
conveyor speed:
-
22m/minutes(variable speed,adjustable)
-
conveyor load:
-
25kg(customized)
-
control panel:
-
LCD display screen
-
raw material:
-
SUS304 stainless steel
-
waterproof:
-
IP66
-
certification approval:
-
ISO9001,CE,HACCP

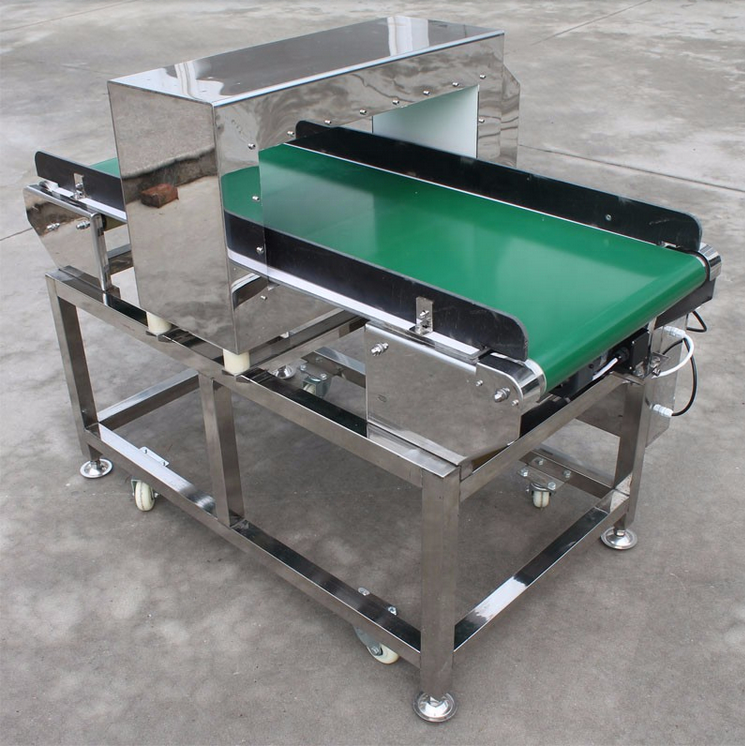

Clothes,Fabric socks,Jans,apparel,shoes,bags,processing needle&metal detector JZD-366
Introduction
Model JZD-366 is a LCD display intelligent/digital metal detector of two-way signal detection circuit technology , which adopt advanced electromagnetic detection and digital signal processing technology .using latest DDS (Direct Digital Synthesizer) and DSP(Digital Signal Processor) in Hardware ,and combined with advanced detecting algorithm, selfstudy and full digital regulating function. to make metal detector's detecting capacity is more stable and dependable ,improving detecting effect
Application
Model JZD-366 digital metal detector is mainly used for checking metal impurities which mix or drop in seafood,frozen food,fish,noodel,bakery etc and other occasion that need metal detection ,it can apply to high temperature ,low temperature ,damp,dry,dust ,dew and other poor work environment,
Main Features
- LCD DIsplay screen control panel with English and Chinese language
- Can Detect impurities in products packaging with evaporating aluminum
- Can record up 100 kinds of different products,parameters of detection and the most simple operation is replacement of different ptoducts occasions frequently
- with the learning functions of automatic identification. Overcome the effect of products material efficiently.
- d etection head adopt dual channel detecting circle from Germany detection technology ,rectangel aperture(indivisible)
- Control system- ADLINE microprocessor controllor,
- Conform to IFS standard with certification HACCP, CE & ISO 9001.
- Strong suppression for product effect of aquatic food products ,frozen foods & pickled foods
- strong anti-interference & shock proof
- Easily disassembly and conveniently clean
Technical Parameters
|
Model |
JZD-366 |
||||||||
|
The Width of inspection window (mm) |
400 |
400(customization) |
|||||||
|
The Height of inspection(mm) |
100 |
120 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
Detection Sensitivity |
Fe(Φmm) |
≥0.6 |
≥0.8 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
|
Non-Fe(Φmm) |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
|
304SUS(Φmm) |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
|
Alarm |
audible and visual alarm ,automatic stop |
||||||||
|
Raw material |
SUS304 |
||||||||
|
Normal machine size (mm) |
160(L)cm×90(W)cm×100(H)cm(Based of normal size) |
||||||||
|
Net Gross |
330kg (based of normal size) |
||||||||
|
Electrical source (Power) |
110V/220V/380V 50Hz/60Hz (Power)90W |
||||||||
|
Conveyor speed |
25-30m/min(can design it according customer's requirements) |
||||||||
|
Conveyor height |
650mm±50mm (normal ) can manufacture it as customer's need |
||||||||
|
Noted: the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc, can install auto -rejection equipments according custom's requirements
|
|||||||||
