Quick Details
-
Material:
-
cold-rolling steel odf
-
Quality:
-
wall mount ODF
-
Core:
-
8,12,24,36........96
-
Working Temp:
-
-20°C~+55°C
-
External size:
-
1U,2U,3U,4U
-
Fiber:
-
Simplex, Duplex
-
Color:
-
white , black ,grey
-
Application:
-
FTTX, FTTH odf
-
Fiber Port:
-
LC,SC,FC,ST
-
Certification:
-
ISO9001,ROHS,TLC,
Quick Details
-
Model Number:
-
odf
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
foclink
-
Material:
-
cold-rolling steel odf
-
Quality:
-
wall mount ODF
-
Core:
-
8,12,24,36........96
-
Working Temp:
-
-20°C~+55°C
-
External size:
-
1U,2U,3U,4U
-
Fiber:
-
Simplex, Duplex
-
Color:
-
white , black ,grey
-
Application:
-
FTTX, FTTH odf
-
Fiber Port:
-
LC,SC,FC,ST
-
Certification:
-
ISO9001,ROHS,TLC,

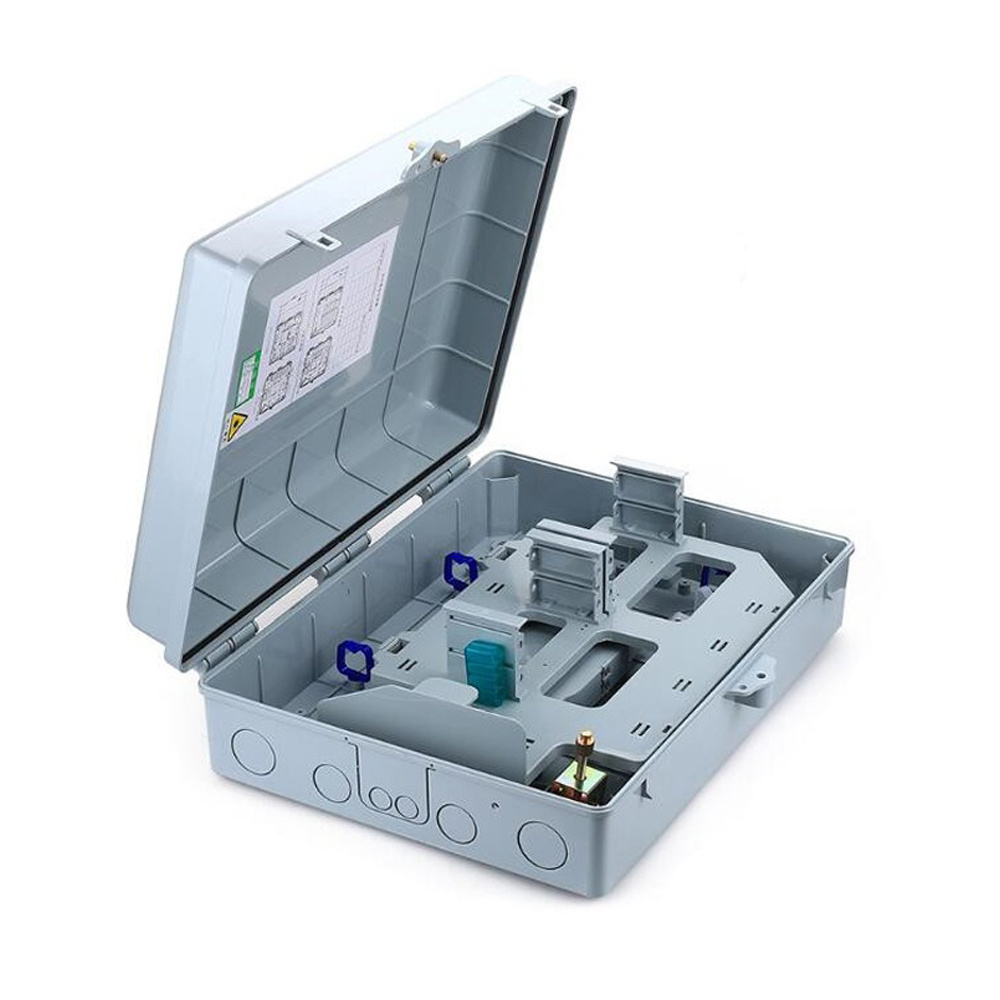

12/24/48 core indoor Wall mount fiber Optic Cabinet/Termination Box/ODF/Patch Panel
Description:
ODFwith pigtails and adapters contain one ODF, adapters and pigtails. Parts are shipped separately, The installer assembles the pigtails and adapters in the ODF on site. Boxes can be supplied to contain from 12 to 192 fibers. All ODFs are withdrawable and designed for mounting in 19” racks. They are equipped with splice holders and guiding for fibers. We can also supply you with other combinations on request.
Technical Information:
Type: Cable installation, wall mount
Size:
40x38x14cm ,
30x30x8.5cm,
40.5x38.2x8.5cm
Capacity: 48 SC, 96 LC
Connector options: SC, SC/APC, LC, LC/APC, ST, FC
Features:
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
ODF Electricity Performance:
| Environmental temperature | -25 - 55°C |
| Atmosphere pressure | 70~106Kpa |
| Insulating resistance | >2×104 MΩ/500VDC |
| Relative humidity | <85%(when the temperature is below 30°C) |
| Voltage resistance strength | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over |
Rack-mount Fiber Optic Distribution Frame
|
Model |
Core Count |
Height |
Dimension(cm) |
Weight(kg) |
|
ODF-R144 |
144 |
7U |
49x30.5x31.15 |
17.1 |
|
ODF-R96 |
96 |
5U |
49x30.5x22.25 |
11 |
|
ODF-R72 |
72 |
4U |
49x30.5x17.8 |
9 |
|
ODF-R48 |
48 |
3U |
49x30.5x13.35 |
7 |
|
ODF-R36 |
36 |
2U |
49x30.5x8.9 |
5.7 |
|
ODF-R24 |
24 |
2U |
49x30.5x8.9 |
4.6 |
Indoor Wall-mount Fiber Optic Distribution Frame
|
Model |
Fiber Quantity |
Dimension(cm) |
Weight(Kg) |
|
ODF-IW48 |
48 |
40x38x14 |
5.8 |
|
ODF-IW24 |
24 |
40.5x38.2x8.5 |
4.2 |
|
ODF-IW12B |
12 |
30x30x8.5 |
3 |
Quality Control:
Certification:
