Quick Details
-
Brand Name:
-
Multi-sweet
-
Voltage:
-
380V
-
Power:
-
2200W
-
Dimension(L*W*H):
-
110*45*90cm
-
Weight:
-
90 KG
-
Product name:
-
honey wax separator machine
-
Application:
-
honey wax separator
-
Package:
-
1set / wooden box
-
Item:
-
Improve honey quality
-
Size:
-
110*45*90cm
-
Packing Size:
-
1set / wooden box
-
Screw speed:
-
9-14r / min
-
Extrusion:
-
50(100,150) Kg/h
-
Motor reducer type:
-
KA F47-NA14-1 .1(1.5) Kw-A
Quick Details
-
Core Components:
-
honey wax separator machine, honey press machine
-
Production Capacity:
-
50(100, 150)Kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Multi-sweet
-
Voltage:
-
380V
-
Power:
-
2200W
-
Dimension(L*W*H):
-
110*45*90cm
-
Weight:
-
90 KG
-
Product name:
-
honey wax separator machine
-
Application:
-
honey wax separator
-
Package:
-
1set / wooden box
-
Item:
-
Improve honey quality
-
Size:
-
110*45*90cm
-
Packing Size:
-
1set / wooden box
-
Screw speed:
-
9-14r / min
-
Extrusion:
-
50(100,150) Kg/h
-
Motor reducer type:
-
KA F47-NA14-1 .1(1.5) Kw-A

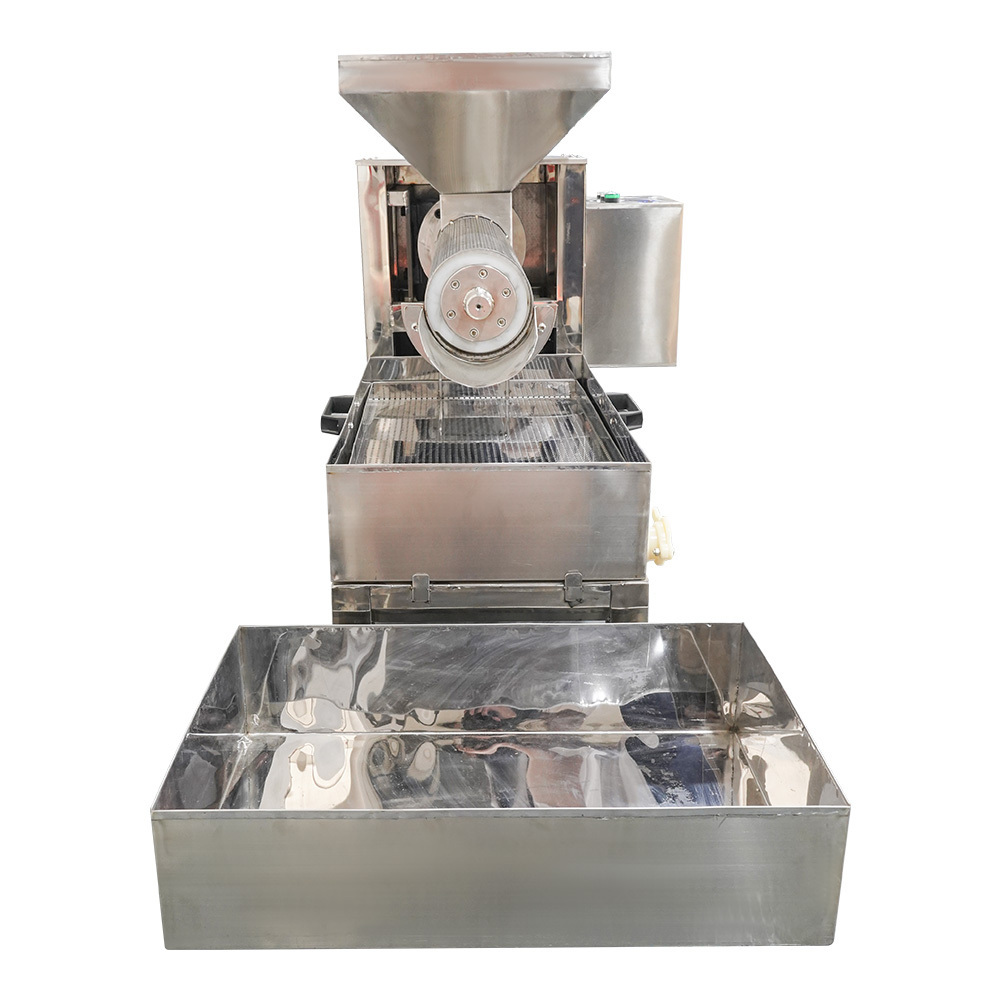

Beekeeping screw type honey wax separator machine
Press the starting switch: turn the converter knob to start the motor, observe whether the screw is turning in the correct direction (clockwise), shall not be reversed.
The seal wax cut from the nest frame is continuously put into the hopper, and the seal wax is transported from the lower hopper to the tail end of the screw by dragging the screw through the motor reducer.In the course of transportation, the seal wax can be separated from beeswax by the change of screw bottom diameter and pitch, and a certain pressure will be produced in the screw cylinder to separate honey from beeswax.The beeswax is transported to the tail of the screw in the screw groove with the rotation of the screw, and the excluded beeswax is discharged into the wax receiving tank. Honey flows through the overflow holes on the wall of screw chamber and flows into the honeycomb tank below screw chamber.
1. ( Lower Hopper ) 2. ( Bolt screw ) 3. ( Filter syrup ) 4. ( Wax slot )
5. ( Control box ) 6. ( Start button ) 7. ( Stop button ) 8. ( Power indicator ) 9. ( frequency converter )
The parameters of Screw type honey wax separator machine as follow:
| Product Name | Screw type honey wax separator |
|
Shape Size |
1100 * 450 * 900cm |
| Packing Size |
1420*560*860 cm |
|
Motor reducer type |
KA F47-NA14-1 .1(1.5) Kw-A |
|
Voltage |
380(single phase 220) V |
|
Screw speed |
9-14r / min |
|
Screw diameter |
φ 125(φ 150 φ 180) mm |
|
Extrusion |
50(100,150) Kg/h |
|
Weight |
90Kg |
Before using, check whether that all the accessories are completed and the wires are breakage and leakage of electricity, and do the preparatory work before starting the machine.
Don’t let metal and hard articles fall into the screw and screw chamber, so as not to damage the screw and screw chamber. To avoid injury, the operator shall not put his hands into the hopper.
Check whether there is lube oil in the reducer after 3 months of equipment operation . And please replace it regularly.
Cleaning after shutdown:Punching screw from the rear,and washing the screw,screw chamber with hot water.
About sample:It will be sent within 7 working days after receiving your advance payment.
Best pre-sale service:We are a 14-year beekeeping equipment manufacturer with 30 years of beekeeping industry experience.Located in the largest bee machinery production base in China,Changge.Focus on R&D and production of honey extractor.Multi-sweet’s products have been exported to all over the world and won great feedback,gradually become a leader in the beekeeping industry.
Best after-sale service: Any damage caused by the product itself belongs to our compensation.
