Quick Details
-
MR18220100J:
-
cast basket 6inch voice coil subwoofer 21 inch speaker
-
Nominal Diameter:
-
21inch
-
Net Weight:
-
25kg
-
Maximum Power Handling:
-
3000W
-
Sensitivity(1W/1m):
-
98db
-
Voice Coil Diameter:
-
150mm(6 in)
-
Winding Material:
-
CU
-
Frequency Range:
-
40-1600Hz
-
Nominal lmpedance:
-
8Ω
-
Shipping Box:
-
500*500*225mm
-
Power:
-
1500w
-
Frequency Range (Hz):
-
40-1600Hz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR21300150
-
MR18220100J:
-
cast basket 6inch voice coil subwoofer 21 inch speaker
-
Nominal Diameter:
-
21inch
-
Net Weight:
-
25kg
-
Maximum Power Handling:
-
3000W
-
Sensitivity(1W/1m):
-
98db
-
Voice Coil Diameter:
-
150mm(6 in)
-
Winding Material:
-
CU
-
Frequency Range:
-
40-1600Hz
-
Nominal lmpedance:
-
8Ω
-
Shipping Box:
-
500*500*225mm
-
Power:
-
1500w
-
Frequency Range (Hz):
-
40-1600Hz
Product Description
21inch aluminum cast basket 6inch voice coil subwoofer 21 inch speaker
| MR21300150 |
| 21"-1200W-96dB |
| NOMINAL SPECIFICATIONS |
| Nominal Diameter 545mm (21 in) |
| Overall Diameter 545mm(21in) |
| Bolt circle diameter 530mm |
| Baffle Cutout Diameter 495mm |
| Depth 215mm |
| Net Weight 19kg |
| Shipping Box 570×570×250mm |
| Shipping Weight 20kg |
| TECHNICAL PARAMETERS |
| Nominal lmpedance 8Ω |
| Minimum lmpedance 6.9Ω |
| AES Power Handing(1) 1500W |
| Maximum Power Handling(4) 3000W |
| Sensitivity(1W/1m) 96dB |
| Frequency Range 80-2000Hz |
| Voice Coil Diameter 150mm(6 in) |
| Winding Material CU |
| Former Material Glass Fiber |
| Winding Depth 25mm |
| Magnetic Gap Depth 12mm |
| Flux Density 1.1T |
| Magnet Neodymium Ring Ferrite Ring |
| Demodulation NO NO |
| Suspension(5) Triple Roll Triple Roll |
| THIELE & SMALL PARAMETERS |
| Fs 80Hz |
| Re 5.5Ω |
| Qes 0.42 |
| Qms 10.20 |
| Qts 0.39 |
| Vas 180dm³ |
| Sd 786.2cm²(117.2 in²) |
| Xmax 9.5mm |
| Mms 230g |
| Bl 28.5N/A |
| Cms 0.08mm /N |
| η(Eta Zero) 2.24% |
| EBP 90Hz |

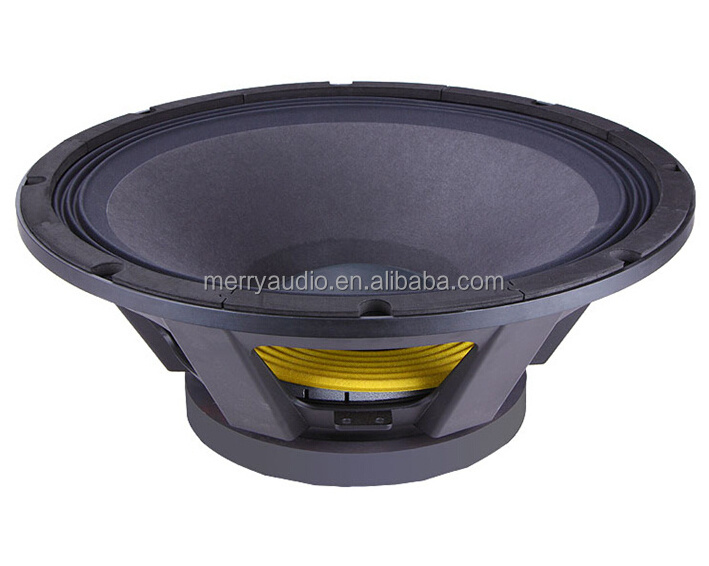

Product Real Photos
21inch aluminum cast basket 6inch voice coil subwoofer 21 inch speaker
Packaging & Shipping
Packaging :
Common carton that protect speaker from damage, or as your OEM requirements.
Shipping:
Express/ Airlift / FCL(
Full Container Load
) or LCL, FOB / EXW / CIF or CNF. Our sales team are capable enough to arrange the shipment if you want.
Our Services
- Any questions from you are welcome and will be replied in 24 working hours.
- Experienced staff answer all your questions in fluent English.
- Special discount and protection of sales area provided to our distributor.
- Specialized in speakers over 11 years.
- A team of designers and engineers are capable to create new items according to personal request.
- Customized design is available.
- Welcome OEM and ODM.
