Quick Details
-
Model Number:
-
CT-100
-
Product name:
-
0~1300um CT-100 galvanized coating thickness gauge
-
Type:
-
N/F
-
Measuring Range:
-
0~1300um /0~51.2mil
-
Resolution:
-
0.1um/0.01mil
-
Accuracy:
-
±(3%+2um) /±(3%+0.08mil)
-
Size:
-
124x62x32mm
-
Power supply:
-
9V Battery
-
Weight:
-
100g (3.53oz)
-
Operation Temperature:
-
0-40℃/32-104℉
-
Operation Humidity:
-
20-90%RH
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tony
-
Model Number:
-
CT-100
-
Product name:
-
0~1300um CT-100 galvanized coating thickness gauge
-
Type:
-
N/F
-
Measuring Range:
-
0~1300um /0~51.2mil
-
Resolution:
-
0.1um/0.01mil
-
Accuracy:
-
±(3%+2um) /±(3%+0.08mil)
-
Size:
-
124x62x32mm
-
Power supply:
-
9V Battery
-
Weight:
-
100g (3.53oz)
-
Operation Temperature:
-
0-40℃/32-104℉
-
Operation Humidity:
-
20-90%RH

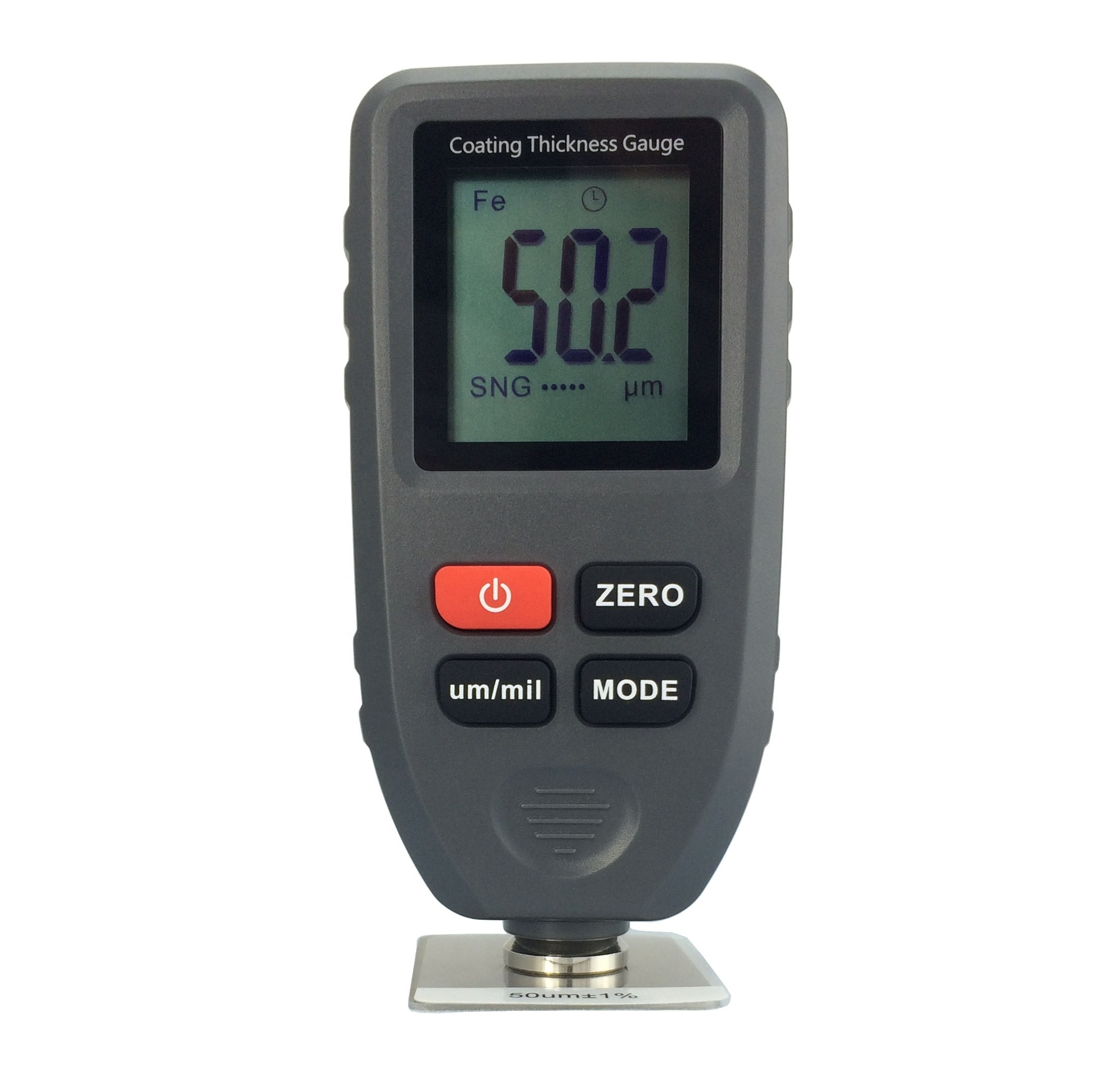

CT-100 Digital Car Paint Tester Coating Thickness Gauge
The thickness gauge is used to measure the thickness of the plated and coated sheeton metal, e.g. paint / enamel / chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attribute of substrates.
Operating Principle:
The gauge adopts the principle of electro-magnetic induction and eddy current effect.It has F probe and N probe.
F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.
N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.
Application Field:
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry,
metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Technical specifications:
|
|
Probe F |
Probe N |
|
Principle
|
Magnetic Induction |
Eddy Current |
|
Range |
0~1300um 0~51.2mil |
0~1300um 0~51.2mil |
|
Accuracy |
±( 3%+2um) ±( 3%+0.08mil) |
±( 3%+2um) ±( 3%+0.08mil) |
|
Resolution |
0.1um/0.01mil |
0.1um/0.01mil |
|
Calibration |
Points: ZERO/50/100/250/500/1000um |
|
|
Units |
um, mil |
|
|
minimum curvature radius convex: 1.5mm |
||
|
minimum curvature radius concave: 25mm |
||
|
minimum measuring area: Diameter 6mm |
||
|
minimum thickness of substrate |
0.5mm(0.02”) |
0.3mm(0.012”) |
|
Power |
One 9V battery |
|
|
Operation Environment |
Temperature:0~40 ℃ (32~104 ℉ ) Humidity:20%~90%RH |
|
|
Size |
124mm x 62mm x 32mm (4.88” x 2.44” x 1.26”) |
|
|
Weight |
100g(3.53oz) |
|
