electric grating machine for coconut

FOB Reference Price: Get Latest Price

≥1 Sets

US $4980

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: Grater

Voltage:: 380V/50HZ

Power:: 22kw

Weight:: 500 KG

Dimension(L*W*H):: 1380*950*1450mm

After-sales Service Provided:: Video technical support

Name:: electric grating machine for coconut

Product name:: machine for grating coconut

Commodity:: coconut grating making machine

Item name:: electric coconut grater machine

Other name:: coconut grater machine stainless steel

Usage:: It is mainly used to smash the coconut meat to small particle

Function:: Crush coconut meat into small pieces

Application:: prepare for extracting coconut milk juice

Machine material:: 304 Stainelss Steel

Quick Details

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: Awisy

Type:: Grater

Voltage:: 380V/50HZ

Power:: 22kw

Weight:: 500 KG

Dimension(L*W*H):: 1380*950*1450mm

After-sales Service Provided:: Video technical support

Name:: electric grating machine for coconut

Product name:: machine for grating coconut

Commodity:: coconut grating making machine

Item name:: electric coconut grater machine

Other name:: coconut grater machine stainless steel

Usage:: It is mainly used to smash the coconut meat to small particle

Function:: Crush coconut meat into small pieces

Application:: prepare for extracting coconut milk juice

Machine material:: 304 Stainelss Steel

Product Overview

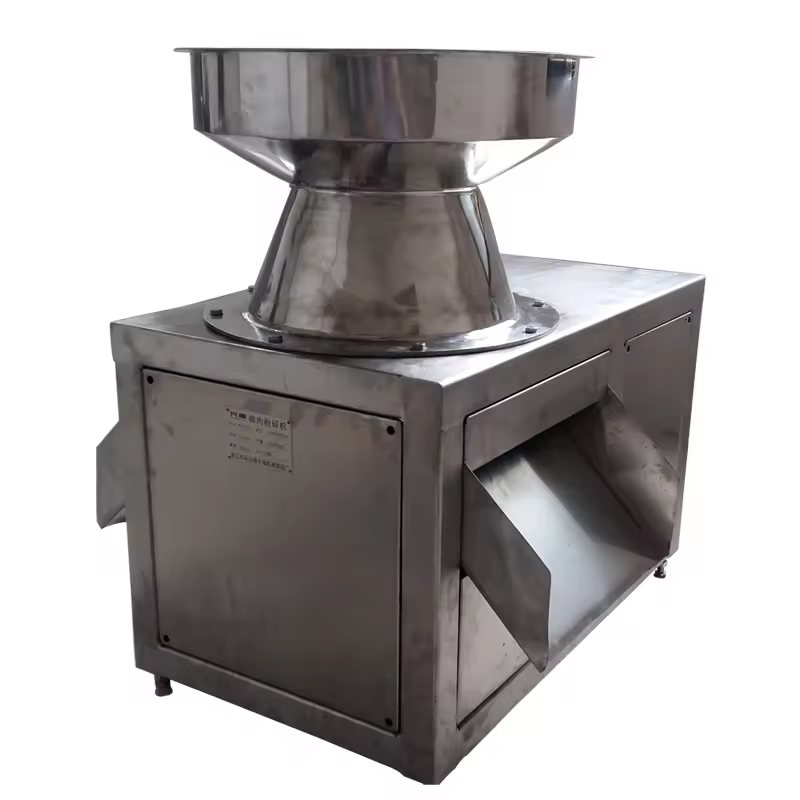

electric grating machine for coconut

1. It is mainly suitable for grating coconut meat.

2. This equipment in addition to the transmission part, the rest parts are made of stainless steel material.

Working principle

The coconut meat into the feed hopper, cutting materials under high speed rotation of sawtooth rotor, to make the coconut meat evenly smashed to more smaller.

In order to prevent the coconut meat under the action of rotor centrifugal force break away from the contact with the sawtooth on the rotor, specially design the stator into conical and in the inner wall of the stator add a gib block. Make the coconut meat fully contact with the sawtooth and will push on the grinded coconut meat into the discharge hopper.

Advantages

1. FS-055 and FS-075 are old type coconut meat grinder.
2. FS-110,FS-150 and FS-220 are new type models machine, the blades disk is uppgrade which greatly improve the juicing rate. The cutter head of the coconut meat grinder machine will be processed with the function similar to the colloid mill, in this way, the coconut juice extraction rate will be improved.

FEATURES AT A GLANCE

1. Small size, big capability.

2. Easy operation, no shaking during working, low noise.

3. Easy washing, endurable, final mesh size adjustable.

PRODUCT SPECIFICATIONS

Model	Voltage	Power	Capacity	Dimension	Weight
FS-055	380V/50Hz, 3Phase	5.5kw	0.3-0.5T/H	9007001000mm	250kg
FS-075	380V/50Hz, 3Phase	7.5kw	1-1.5T/H	10007501020mm	300kg
FS-110	380V/50Hz, 3Phase	11kw	1.5-2T/H	10507501020mm	350kg
FS-150	380V/50Hz, 3Phase	15kw	2.5-3T/H	11008001150mm	400kg
FS-220	380V/50Hz, 3Phase	22kw	3-4T/H	13809501450mm	500kg
