Quick Details
-
Model Number:
-
HPM711
-
Measuring Medium:
-
Various liquid, gas, or steam compatible with contact material
-
Measuring Range:
-
-100kPa...0~10kPa...60MPa(G)
-
Overload:
-
1.5 times of full scale
-
Output Signal/Power supply1:
-
4~20mADC/ Vs=8~30 VDC
-
Output Signal/Power supply2:
-
0~10VDC /Vs=12~30 VDC
-
Output Signal/Power supply3:
-
0~5VDC /Vs=8.5~30V or 3.1~8 VDC
-
Output Signal/Power supply4:
-
4~20mADC+HART/Vs=12~32 VDC
-
Accuracy:
-
±0.5%FS (typical) ±0.25%FS (optional)
-
Long-term Stability:
-
±0.50%FS/year,≤100kPa ±0.25%FS/year,>100kPa
-
Medium Temperature:
-
-40~100℃(without heat sink)
Quick Details
-
Warranty:
-
12 monthes
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HIGHJOIN
-
Model Number:
-
HPM711
-
Measuring Medium:
-
Various liquid, gas, or steam compatible with contact material
-
Measuring Range:
-
-100kPa...0~10kPa...60MPa(G)
-
Overload:
-
1.5 times of full scale
-
Output Signal/Power supply1:
-
4~20mADC/ Vs=8~30 VDC
-
Output Signal/Power supply2:
-
0~10VDC /Vs=12~30 VDC
-
Output Signal/Power supply3:
-
0~5VDC /Vs=8.5~30V or 3.1~8 VDC
-
Output Signal/Power supply4:
-
4~20mADC+HART/Vs=12~32 VDC
-
Accuracy:
-
±0.5%FS (typical) ±0.25%FS (optional)
-
Long-term Stability:
-
±0.50%FS/year,≤100kPa ±0.25%FS/year,>100kPa
-
Medium Temperature:
-
-40~100℃(without heat sink)
PRODUCT OVERVIEW

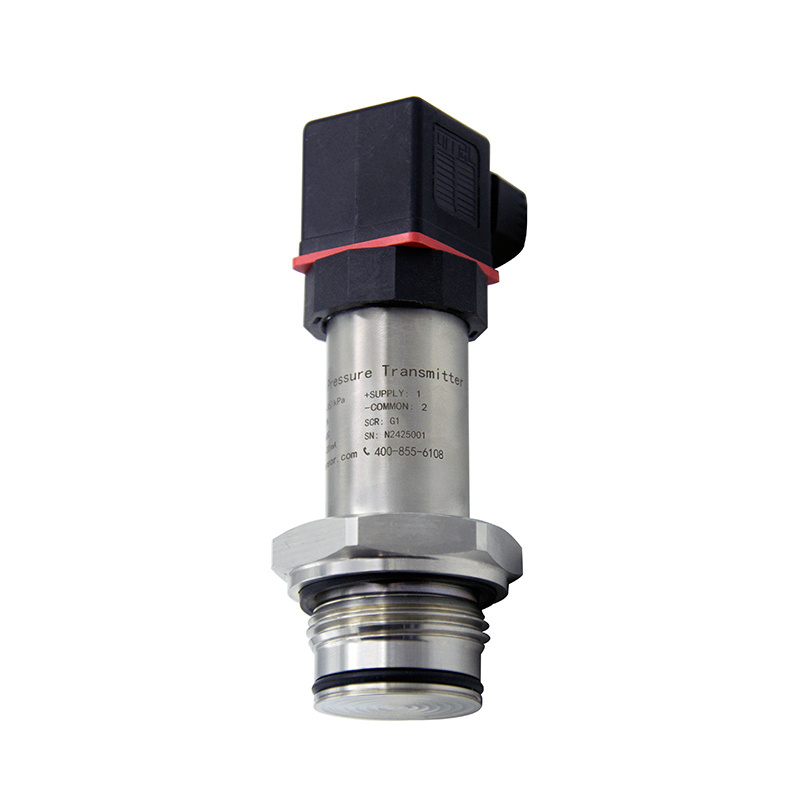

HPM711 flush diaphragm sanitary pressure transmitter uses a flush diaphragm to directly sense the pressure signal, uses a silicon pressure chip as the sensitive element, and uses standard silicone oil or sanitary oil as the pressure transmission medium.
FEATURES AT A GLANCE
⚫ Flush diaphragm structure
⚫ Hygienic pressure interface
⚫ Various electrical interfaces
⚫ Various process connections
PRODUCT SPECIFICATIONS
|
Measuring Medium
|
Various liquid, gas, or steam compatible with contact material
|
|
Measuring Range
|
-100kPa…0～10kPa…60MPa(G)
0～25kPa…10MPa(A) |
|
Overload
|
1.5 times of full scale
|
|
Output Signal/Power supply
|
4～20mADC/ Vs=8~30 VDC
0～10VDC /Vs=12~30 VDC 0～5VDC /Vs=8.5~30V or 3.1~8 VDC (Higher than max output voltage 0.4V as least) 4~20mADC + HART / Vs =12~32 VDC |
|
Accuracy
|
±0.5%FS (typical)
±0.25%FS (optional) |
|
Long-term Stability
|
±0.50%FS/year，≤100kPa
±0.25%FS/year，>100kPa |
|
Compensation temperature range
|
5～60℃
|
|
Temperature Coefficient of Zero
|
±0.4%FS/10℃(in compensation range,≤100kPa）
±0.3%FS/10℃(in compensation range,>100kPa) |
|
Temperature Coefficient of Full Scale
|
±0.3%FS/10℃(in compensation range)
|
|
Operation Temperature
|
-40～80℃
|
|
Medium Temperature
|
-40～100℃(without heat sink)
-40～150℃(with heat sink) |
|
Storage Temperature
|
-40～100℃
|
|
Protection Grade
|
IP65 for Hirschmann electronical connection (code: C1)
|
|
Short circuit protection
|
Always
|
|
Reverse polarity protection
|
No damage, will not work if reverse
|
|
Electromagnetic Compatibility
|
EN 61326
|
|
Vibration
|
20g(20~5000Hz)
|
|
Shock resistance
|
50g(11ms)
|
|
Insulation resistance
|
>200MΩ @500VDC
|
|
Dielectric strength
|
<2mA @500VAC 1min
|
STRUCTURE
FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
Q: What's your quality control system?
A: MC.ISO9001.CE Certificated.
Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
Q: What is lead time of your product?
A: Normally, our factory lead time is within 10-15 working days for products withoutcustomization. You can also check lead time detail with our sales depending on different items.
Q: Do you provide customized products?
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed
Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable
Q: What's the transport?
A: Express such as DHL, FedEx, TNT. UPS for freight prepaid; and we can also use your owncourier account to do the freight collect. For more goods we can arrange by air or by Sea.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.
