1. Inner packaging:PP bag,bubble bag,plastic wrap etc.
2. Outer packaging:carton,wooden case,pallet etc.
3. According to custmer's requirement.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

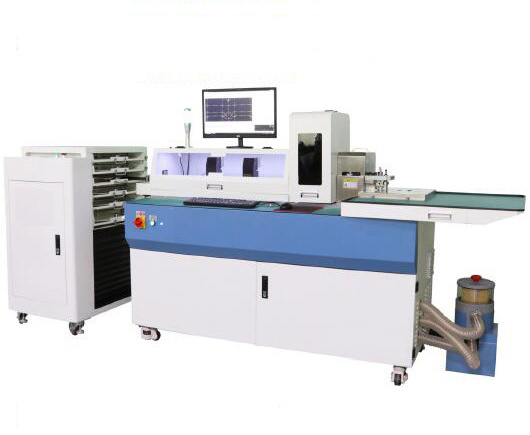

Auto bender machine
-
Application:
-
Laser die bending
-
File Format:
-
DWG, DXF, AI, PLT
-
Air supply:
-
0.4-0.8 Mpa
-
Blade thickness:
-
0.45- 1.05 mm
-
Blade height:
-
8-32 mm
-
Power Supply:
-
220V, 50Hz/60Hz
-
Usage:
-
Cutting Bending Machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bohong
-
Weight (KG):
-
520
-
Product name:
-
Auto bender machine
-
Application:
-
Laser die bending
-
File Format:
-
DWG, DXF, AI, PLT
-
Air supply:
-
0.4-0.8 Mpa
-
Blade thickness:
-
0.45- 1.05 mm
-
Blade height:
-
8-32 mm
-
Power Supply:
-
220V, 50Hz/60Hz
-
Usage:
-
Cutting Bending Machine
Product Description
Product features
1. One machine includes multiple functions: feeding, broaching, scoring, seamless cutting, rolling, bridge and so on.
2. The high-precision punching tools are specially designed for high-demand die boards, such as tissue box.Multiple cutting tools can achieve different edge cutting rules without changing the cutting tool, which can achieve seamless cutting and improve accuracy and work efficiency.
3. Multiple sets broaching : The width of the broaching can be automatically adjusted by the software , and the depth of the broaching can be automaticaly controlled according to the size of fillet,making the fillet more accurate.
4 . Double-clamp fast feeding: continuous feeding improves the production speed and bending accuracy of the whole machine.
5 . Software function: The independently developed software supports the formats of CAD files and other drawing formats, User-friendly software interface, easy to operate.
6. Auto rule cassette: optional lifting rule cassete. 6 different types of steel rule can be installed, humanized design, convenient and fast. It is independent and can be placed and moved at will.
Specifications
|
Model No.
|
BH-D1152
|
|
|
||
|
Blade thickness
|
0.45-1.05 mm
|
|
|
||
|
Blade height
|
8-32 mm
|
|
|
||
|
Feeding precision
|
+/- 0.03 mm
|
|
|
||
|
Max. bending angle
|
95 °
|
|
|
||
|
Bending Flatness
|
0.2 mm
|
|
|
||
|
File format
|
DWG, DXF, AI
|
|
|
||
|
Air supply
|
0.4-0.8 Mpa
|
|
|
||
|
Voltage
|
AC220, 50Hz-60Hz
|
|
|
||
|
Power
|
3KW
|
|
|
||
|
Weight
|
500KG
|
|
|
||
|
Size
|
2920*930*1700mm
|
|
|
||
|
Packing
|
Wooden box
|
|
|
||
|
Function
|
Broaching, nicking, seamless cutting, lipping, bridging, etc.
|
|
|
||
Company inforamation
Bohong Mechanical Equipment Co.,Ltd. is located in Dongguan City, Guangdong Province, China. Bohong is a large company which can provide produce, export and after-sales service. specialized in steel blade bender machine, die cardboard laser cutting machine, other high-tech enterprise automation control equipment, non-standard machines and related product development, production, sales and expor, etc. We have more than 7 years of experience in manufacturing and processing ordinary steel moulds.
We have a mature and stable supply chain in China and Hongkong. We exam machines and control quality very strictly. We swear that every machine you'll receive from us can work well in good condition.
Welcome to contact us any time in your need! We're looking forward to starting good business relationship with you.
Packaging & Delivery
Packaging Methods
Delivery
1. Less than 50kg, you could choose express, such as DHL, UPS, FedEx, TNT and EMS.(door to door,so convenient)
2. From 50kg to 200kg, you could choose to send by air. (fast and safe, but expensive)
3. More than 200kg, you may consider to send by sea. (cheapest, but long transit time)
4. We can also deliver as client's requirment.
5. Nearest Port: Yantian (Shenzhen) Port.
6. We will choose the cheapest and safest way to ship the goods to you.
Payment
Payment item
1.We accept paypal, Western Union or T/T,etc.
2.You could choose the one which is the most convenient and effective for you.
Certifications
Why Choose Us
FAQ
Q1: Can we get the samples?
A: Yes, we can supply you the samples for checking our quality.
Q2: Do you accept small order?
A: Any order quantity is welcome. But some type of products are high cost that not suitable small order.
Q3: How can we get your catalogue and price list?
A1: Please let us know your email or contact us from website directly for our catalogue and price list;
A2: You can select the item on our website and advise which items you interest and what price term you would like to be offer ,EXW or FOB?
Q4: How can we place an order?
A1: After confirmed quotation, we will issue proforma invoice for client to sign back.
A2. Send the product technical specification via email.
A3. After production approved, please arrange deposit before proceed sample production or mass production.
A4. If need to make the sample confirmation, we will send the samples or take the sample photo to client for approved about 20 working days.
A5. Production time will base on the order quantity. We will send notice email with product photo to client before delivery.
Q5 :What if there is quality problem when we get the goods?
A: If there is quanlity problem with the goods, you can take pictures for our reference,We will check the problem and give best solutions to you,namely replace some parts, further more we will also take action to improve the quality in future.
