Quick Details
-
Applicable Models:
-
MS908 CV Autel Diagnostic Tools
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autel
-
Model Number:
-
MS908 CV heavy truck diagnostic scanner
-
Warranty:
-
12 Months
-
Product Name:
-
Autel Diagnostic Tools
-
Function:
-
Heavy Duty Truck Diagnosis Tools
-
Item Type:
-
MaxiSys CV Truck Diagnostic Scanner
-
Performance:
-
OBD 2 Scanner Tool Machine
-
Accessories:
-
Table+J2534 Scanner Diagnostic Tool
-
Operating System:
-
AndroidTM 4.0
-
Special Features:
-
Truck Diagnostic Scanner
-
Connection:
-
Wi-Fi
-
Keywords:
-
MS908 CV Heavy Duty Truck Scanner
Quick Details
-
Car Fitment:
-
Volvo Heavy Duty - Europe Heavy Duty
-
Voltage:
-
12V
-
Power:
-
6.5W
-
Applicable Models:
-
MS908 CV Autel Diagnostic Tools
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autel
-
Model Number:
-
MS908 CV heavy truck diagnostic scanner
-
Warranty:
-
12 Months
-
Product Name:
-
Autel Diagnostic Tools
-
Function:
-
Heavy Duty Truck Diagnosis Tools
-
Item Type:
-
MaxiSys CV Truck Diagnostic Scanner
-
Performance:
-
OBD 2 Scanner Tool Machine
-
Accessories:
-
Table+J2534 Scanner Diagnostic Tool
-
Operating System:
-
AndroidTM 4.0
-
Special Features:
-
Truck Diagnostic Scanner
-
Connection:
-
Wi-Fi
-
Keywords:
-
MS908 CV Heavy Duty Truck Scanner
Products Description

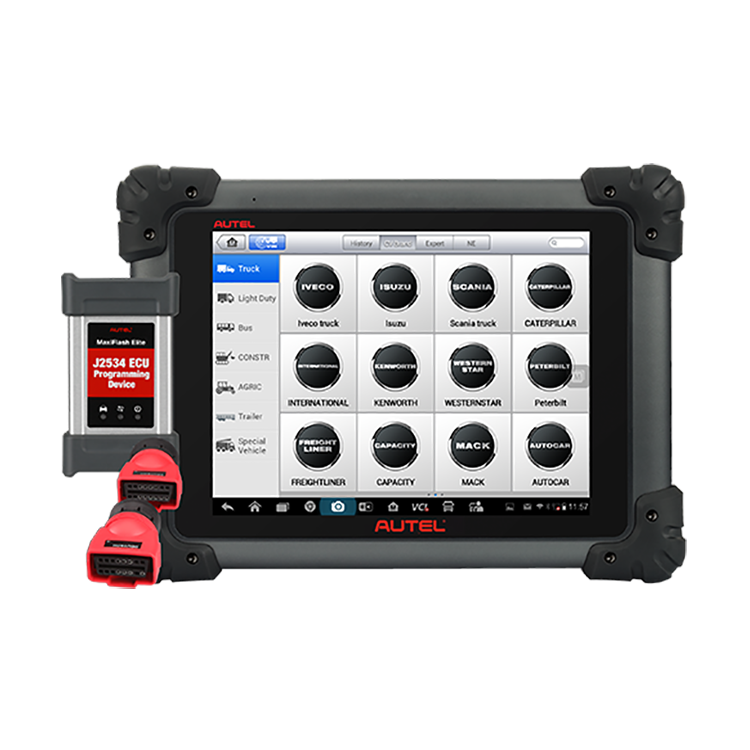

AUTEL Heavy Duty Truck
OBD2 Car Diagnosis Tools Autel MaxiSys CV MS908 CV
HD Heavy Duty Diesel Truck Moduel Diagnostic Scanner Tool
As a new member of Autel’s MaxiSys family, the MaxiSys MS908CV is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe and Asia. Offering advanced features and extreme ease-of-use, MaxiSys MS908CV is the ideal solution for independent repair shops, owner-operators and various sized fleets seeking a single scan tool for all their professional heavy duty needs.
|
Product Name
|
Autel Diagnostic Tools Other Vehicle Tool MaxiSys MS 908 CV Scanner Auto Vehicle Emergency Tools OBD 2 Heavy Duty Truck Scanner
|
|
Operating System
|
Android™ 4.0, Ice Cream Sandwich
|
|
Processor
|
Samsung Exynos Quad-Core Processor 1.4GHz
|
|
Memory
|
2GB RAM & 32GB On-board Memory
|
|
Display
|
9.7 inch LED capacitive touchscreen with 1024x768 resolution
|
|
Connectivity
|
Ethernet: RJ45 Ethernet Connection
WiFi (802.11 a/b/g/n) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
|
Camera
|
Rear-facing, 5.0 Megapixel, AF with Flashlight
|
|
Sensors
|
Gravity Accelerometer, Ambient Light Sensor (ALS)
|
|
Audio input/output
|
Microphone
Dual Speakers 4-Band 3.5 mm stereo/standard headset jack |
|
Power and Battery
|
11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
|
|
Input Voltage
|
12 V (9-24 V)
|
|
Power Consumption
|
6.5W
|
|
Operating/Storage Temp
|
-10 to 55°C (14 to 131°F)/-20 to 70°C (-4 to 158°F)
|
|
Housing
|
Strong plastic housing with protective rubber boot
|
|
Dimensions(WXHX D)/Net Weight
|
300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
NW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.) |
|
Protocols
|
SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL
|
Details Images
AUTEL Heavy Duty Truck OBD2 Car Diagnosis Tools Autel MaxiSys CV MS908 CV HD Heavy Duty Diesel Truck Moduel Diagnostic Scanner Tool
* Hardware
• Extraordinarily powerful Cortex-A9 quad-core processor
• 9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
• Internal reliable and fast 32GB Solid State Drive for better performance
• Built-in 5-megapixel rear camera with autofocus and flashlight
• Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
• Unique shop tough ergonomic design features strong rubber protection and housing
• Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
• USB, audio and auxiliary ports make it easy to connect accessories
• The VCI connects to the main unit wirelessly with up to 230 meters working range
* Software
• Open source Android Operating System for fast boot-up and multitasking
• Easy and intuitive navigation makes finding what you need simple and fast
• Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
• Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
• Displays live data in text, graph, analog and digital gauge for easy data review and analysis
• Configures display options, sets triggers, records and playbacks results with one touch
• Records and playbacks live data to pinpoint troubles of sensors and components
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
• Remote technical support for convenient demonstration, training and increased customer satisfaction
• Prints out recorded data anytime and anywhere with Wi-Fi technology
• Automatic Wi-Fi updates available in new software releases
• Extraordinarily powerful Cortex-A9 quad-core processor
• 9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
• Internal reliable and fast 32GB Solid State Drive for better performance
• Built-in 5-megapixel rear camera with autofocus and flashlight
• Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
• Unique shop tough ergonomic design features strong rubber protection and housing
• Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
• USB, audio and auxiliary ports make it easy to connect accessories
• The VCI connects to the main unit wirelessly with up to 230 meters working range
* Software
• Open source Android Operating System for fast boot-up and multitasking
• Easy and intuitive navigation makes finding what you need simple and fast
• Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
• Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
• Displays live data in text, graph, analog and digital gauge for easy data review and analysis
• Configures display options, sets triggers, records and playbacks results with one touch
• Records and playbacks live data to pinpoint troubles of sensors and components
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
• Remote technical support for convenient demonstration, training and increased customer satisfaction
• Prints out recorded data anytime and anywhere with Wi-Fi technology
• Automatic Wi-Fi updates available in new software releases
