Quick Details
-
Panel Size:
-
320mmx160mm
-
Place of Origin:
-
China
-
Model Number:
-
p10
-
Pixel Pitch:
-
10mm
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixels:
-
10mm
-
Brightness:
-
5500-7000 cd/sqm
-
IP grade:
-
IP 65
-
Life span:
-
96,360 hours
-
Use Voltage:
-
AC 220V/110V±10%
-
LED chip:
-
Epistar
-
Refresh Rate:
-
960-1920 Hz
Quick Details
-
Application:
-
outdoor
-
Brand Name:
-
HONGHUI
-
Color:
-
full color
-
Panel Size:
-
320mmx160mm
-
Place of Origin:
-
China
-
Model Number:
-
p10
-
Pixel Pitch:
-
10mm
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixels:
-
10mm
-
Brightness:
-
5500-7000 cd/sqm
-
IP grade:
-
IP 65
-
Life span:
-
96,360 hours
-
Use Voltage:
-
AC 220V/110V±10%
-
LED chip:
-
Epistar
-
Refresh Rate:
-
960-1920 Hz
Product Description
|
|

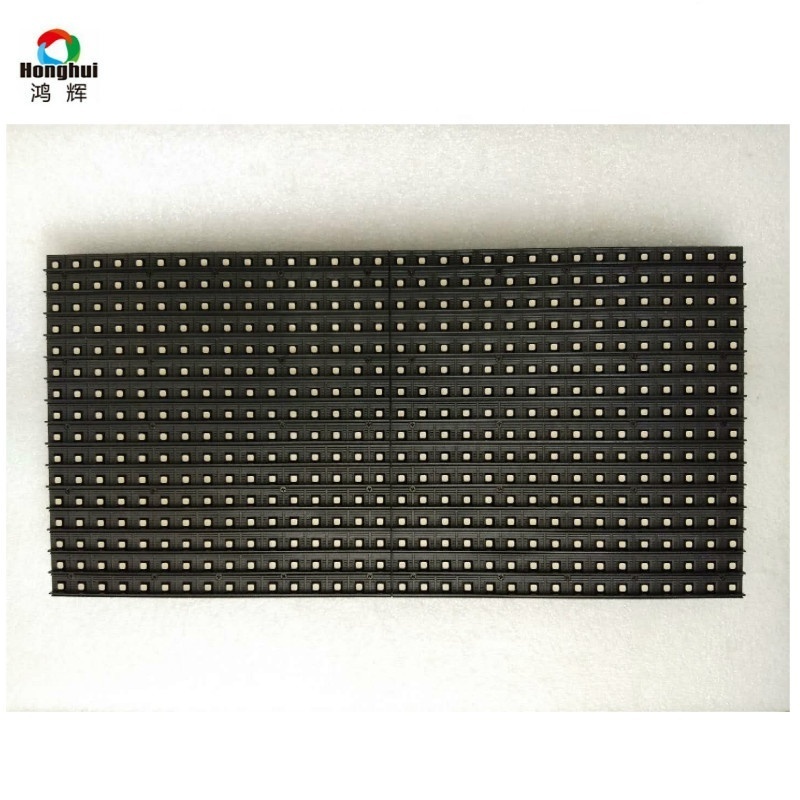

P10 outdoor
LED module
|
|
Pixel pitch
|
10 mm
|
|
Pixel configuration
|
SMD 3535
|
|
IC
|
MBI 5124 /ICN2038S
|
|
LED lamp
|
Nation Star / Kinglight
|
|
|
P10 outdoor
LED module
|
|
Module size
|
320mm* 160mm
|
|
Module resolution
|
32*16ixel
|
|
Pixel density
|
15625dots/m2
|
|
Scan
|
1/4S 1/2S
|
Specification
|
P10 outdoor led display
|
|
|
|
Best viewing distance
|
10-100 m
|
|
|
Color
|
full color
|
|
|
Input power frequency
|
60 Hz
|
|
|
Defect rate
|
≤0.0001
|
|
|
Maintenance mode
|
front / back
|
|
|
Average power consumption
|
400 W/ m2
|
|
|
Max power consumption
|
800 W / m2
|
|
|
Operating temperature
|
–30℃ ~ +60 ℃
10% ~ 95% RH
|
|
Production Process
LED Module Feature
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
9 .Life time >11 years;
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
9 .Life time >11 years;
