Quick Details
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
1300*1000*1600mm
-
Weight:
-
250 KG
-
Power:
-
3 kw
-
After-sales Service Provided:
-
Overseas service center available
-
Spindle number:
-
4
-
Certificate:
-
CO, CNAS
-
Fiber type:
-
Cotton or wool (alternative)
-
Twisting range:
-
50-250 twist/m
-
Drafting range:
-
Approx. 2~50
-
Fiber length:
-
22 ~ 42 mm or customized
-
Output capacity:
-
0.25Kg Per Hour Per Spindle
Quick Details
-
Application:
-
Yarn
-
Production Capacity:
-
HIGH SPEED
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
1300*1000*1600mm
-
Weight:
-
250 KG
-
Power:
-
3 kw
-
After-sales Service Provided:
-
Overseas service center available
-
Spindle number:
-
4
-
Certificate:
-
CO, CNAS
-
Fiber type:
-
Cotton or wool (alternative)
-
Twisting range:
-
50-250 twist/m
-
Drafting range:
-
Approx. 2~50
-
Fiber length:
-
22 ~ 42 mm or customized
-
Output capacity:
-
0.25Kg Per Hour Per Spindle

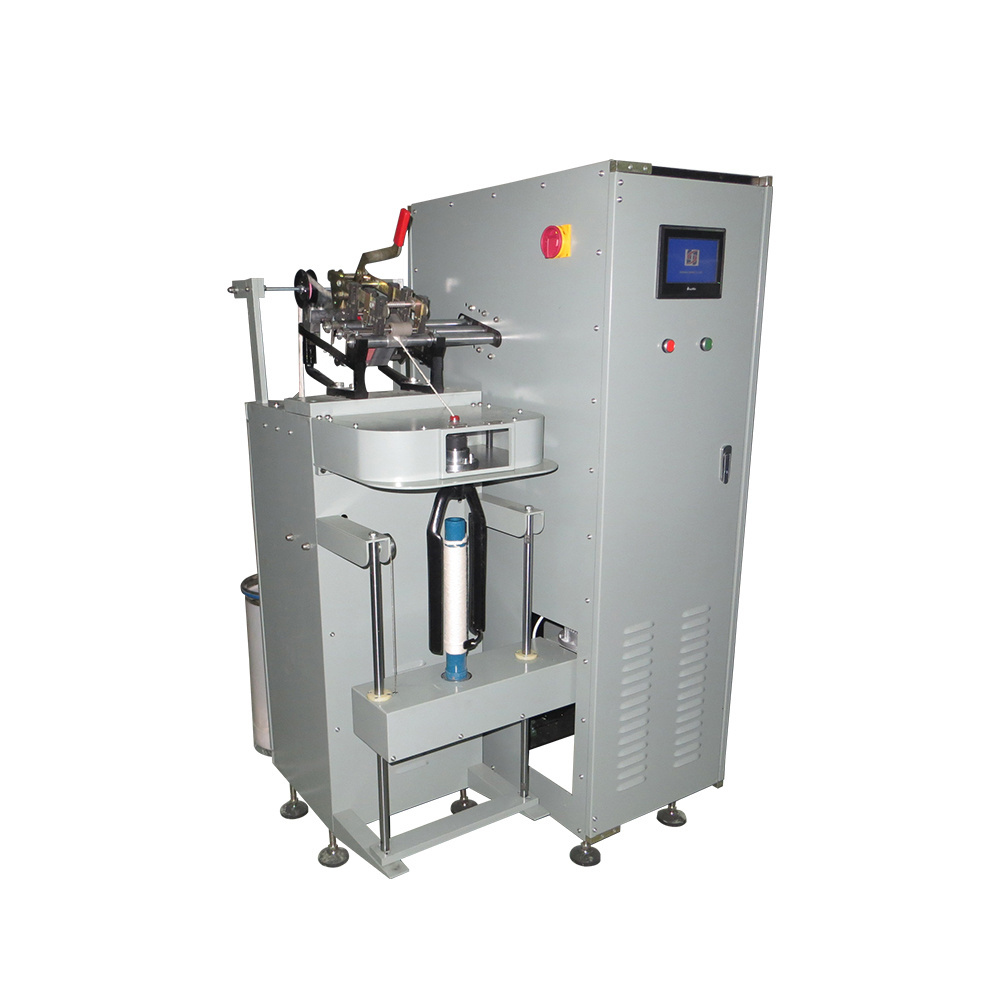

AT205 Mini Lab Speed Frame is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to make roving from sliver. And in the same time, insert the twist into the roving and then winding the twisting roving on bobbin.
1.AT205 Mini lab Speed Frame adopts touch screen and PLC control.
2. Imported frequency converter of high efficiency.
3.Mini type machine, save researching cost and easy to operate and maintain.
4 .AT205 Mini lab Speed Frame Can be used for cotton fiber or wool fiber (alternative) with different machine parts.
|
AT205 Mini Lab Speed Frame |
|
|
Spindle number |
4 |
|
Fiber type |
Cotton or wool (alternative) |
|
Twisting range |
50-250 twist/m |
|
Drafting range |
Approx. 2~50 |
|
Fiber length |
22 ~ 42 mm or customized |
|
Output capacity |
0.25 ~ 1 kg per hour or customized |
|
Roller diameter |
Φ28/25/28mm |
|
Output speed |
Approx. 12m/min |
|
Spindle flyer speed |
600rpm |
|
Can size |
Φ 250*550mm |
|
Power |
220V/380V, 50/60Hz, 700W |
|
Dimension |
1000*800*1600mm |
