Quick Details
-
Place of Origin:
-
China,Shenzhen
-
Brand Name:
-
GJQ
-
Model Number:
-
GJQ-DC
-
Product name:
-
dc plug with screw lock DC 3.5*1.35mm / DC5.5*2.1mm /5.5*2.5mm
-
Material:
-
PVC
-
Rated Voltage:
-
300V
-
Temperature Range:
-
-10 to +80
-
Usage:
-
audio/ led light /computer
-
Size:
-
DC 3.5*1.35mm / DC5.5*2.1mm /5.5*2.5mm
-
Color:
-
Black
-
MOQ:
-
1~10pcs
-
Connector type:
-
Female Terminals
Quick Details
-
Type:
-
DC cables
-
Application:
-
led lights
-
Gender:
-
Male and female
-
Place of Origin:
-
China,Shenzhen
-
Brand Name:
-
GJQ
-
Model Number:
-
GJQ-DC
-
Product name:
-
dc plug with screw lock DC 3.5*1.35mm / DC5.5*2.1mm /5.5*2.5mm
-
Material:
-
PVC
-
Rated Voltage:
-
300V
-
Temperature Range:
-
-10 to +80
-
Usage:
-
audio/ led light /computer
-
Size:
-
DC 3.5*1.35mm / DC5.5*2.1mm /5.5*2.5mm
-
Color:
-
Black
-
MOQ:
-
1~10pcs
-
Connector type:
-
Female Terminals
Product Description

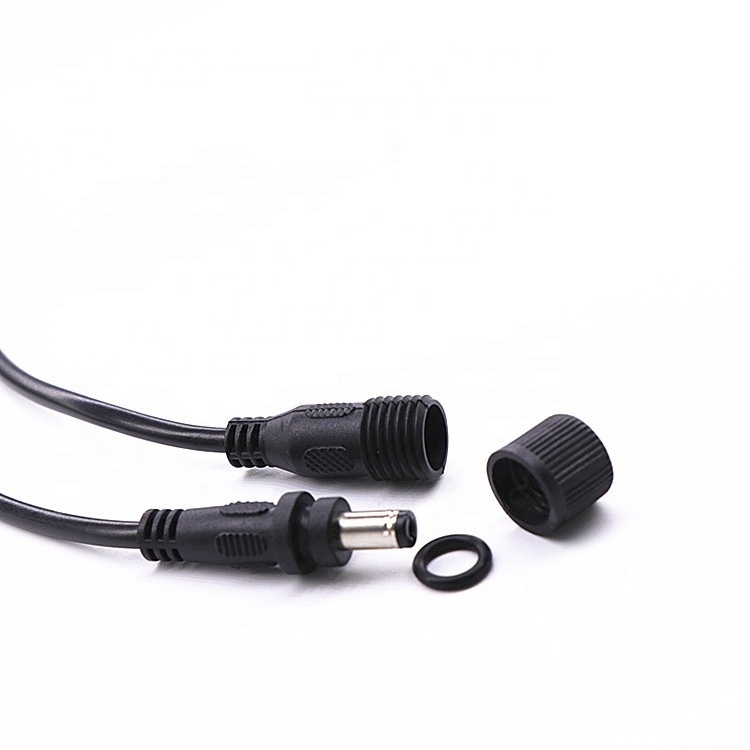

dc plug with screw lock DC 3.5*1.35mm / DC5.5*2.1mm /5.5*2.5mm waterproof cable connector for led light computer audio
| 1 | Model No. | GJQ-DC | |
| 2 | Material | Connector Body | PVC |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 4A |
| 6 | Voltage Rating | 60V | |
| 7 | Contact Resistance | <10mΩ | |
| 8 | Insulation Resistance | 1000MΩat DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -20 °C ~ +80 °C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Level | Not waterproof type | |
| 13 | Cable Diameter | 3.5-5.0mm | |
| 14 | Pins Range | 2pin | |
Product Image
