Quick Details
-
Motor:
-
5KW/7.5KW AC
-
Battery:
-
72V115Ah Lithium Battery
-
Charger:
-
China origin, input 110V-240V~50Hz-60Hz, output 72V, 15A
-
Suspension:
-
Front macpherson independent
-
Lights:
-
All LED
-
Seat:
-
Normal or Pattern or Two-tone
-
Description:
-

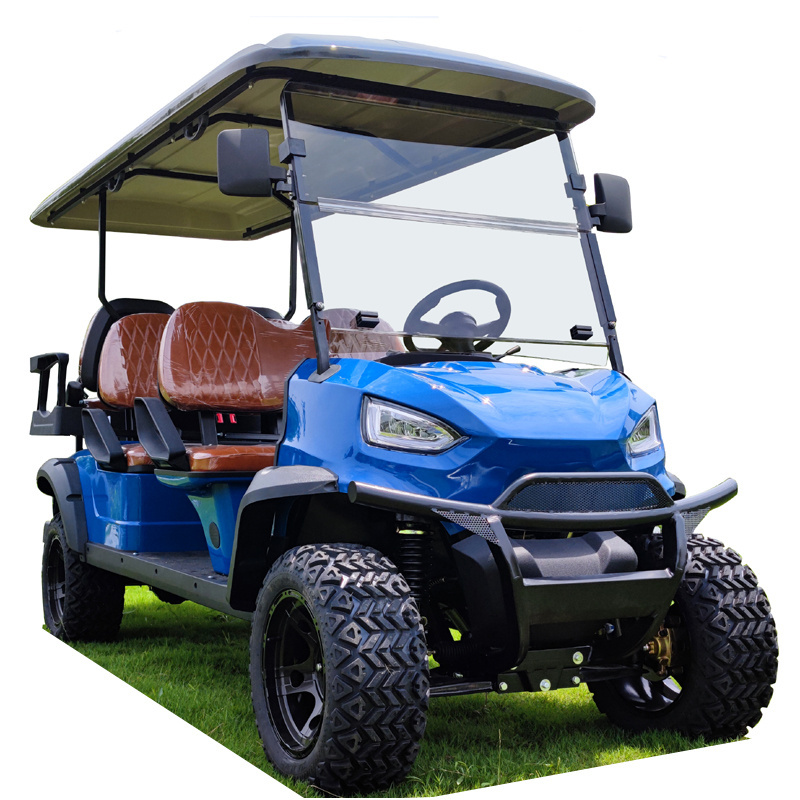

12" Wheel 4+2 Seater Electric Golf Cart Buggies
Quick Details
-
Tire Size:
-
23*10.5-12
-
Dimension:
-
3600*1340*1990mm
-
Battery Voltage:
-
72V
-
Motor:
-
5KW/7.5KW AC
-
Battery:
-
72V115Ah Lithium Battery
-
Charger:
-
China origin, input 110V-240V~50Hz-60Hz, output 72V, 15A
-
Suspension:
-
Front macpherson independent
-
Lights:
-
All LED
-
Seat:
-
Normal or Pattern or Two-tone
-
Description:
-
12" Wheel 4+2 Seater Electric Golf Cart Buggies
Products Description
|
Detailed Specifications of Golf Cart
|
|
|
|
|
Key Componets
|
|
|
|
|
Battery
|
72V115AH Lithium Ion Battery (can upgrade to 170Ah or 228Ah)
|
|
|
|
Motor
|
5KW/7.5KW AC Motor
|
|
|
|
Controller
|
350A Enpower (or other equal brand) / 400A Curtis AC programmable controller
|
|
|
|
Charger
|
Onboard, Smart HF charger, Input 110-240V, output 72V/15A, with charging plug for different countries.
|
|
|
|
Dimensions
|
|
|
|
|
Overall dimensions (mm)
|
3600x1340x1990
|
|
|
|
Min.ground clearance (mm)
|
170
|
|
|
|
Wheelbase (mm)
|
2440
|
|
|
|
Front wheel tread (mm)
|
960
|
|
|
|
Rear wheel tread (mm)
|
1000
|
|
|
|
Body and Frame
|
|
|
|
|
Chassis Frame
|
Welded steel framework to be treated in galvanization and powder coating
|
|
|
|
Body Cover
|
PP injection plastic front body + PP injection plastic rear body
|
|
|
|
Roof
|
PP injection (Black) or vacuum plastic
|
|
|
|
Windshield
|
Organic Glass windshield, hinged
|
|
|
|
Backrest and cushion
|
Comfortable foam + artificial leather + plastic armrest
|
|
|
|
Dashboard
|
PP injection plastic in black, with cup-holders and glove box
|
|
|
|
Steering wheel
|
Sports style
|
|
|
|
Side trim
|
Plastic
|
|
|
|
Side mirrors
|
Foldable
|
|
|
|
Electric System
|
|
|
|
|
Lighting system and horn
|
All LED lights, including 2 headlights (with turning light combined, H/L beam), 2 taillights (each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), electric horn, horn
|
|
|
|
Digital Meter
|
LCD screen, with speedometer, mileage, lights indicators, Battery SOC, Voltage, current
|
|
|
|
Steering, Brake and Suspension
|
|
|
|
|
Steering system
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
|
|
|
Brake system
|
4-wheel hydraulic brake front disc rear drum + foot park brake
|
|
|
|
Accelerator
|
Stepless speed change
|
|
|
|
Suspension system
|
Front macpherson independent and rear plate spring + vibration absorber
|
|
|
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
|
|
|
Rear Axle
|
Integrated, gear ratio 12.76:1
|
|
|
|
Wheel & Tyre
|
12x7 aluminum wheel + 23" off road tire（23*10.5-12）
|
|
|
