Flat heat transfer printing machine for skateboard sticker heat press machine

Flat heat transfer printing machine for skateboard sticker heat press machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7300

≥2 Sets

US $6800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Place of Origin:: Guangdong, China

Brand Name:: LC

Model Number:: H-400M

Usage:: products printer

Dimensions(L*W*H):: 1980*1230*1800mm

Weight:: 392 KG

After-sales Service Provided:: Engineers available to service machinery overseas

body color:: green

Price Terms:: FOB shenzhen

Packing:: Wooden case

Lead Time:: Within 7 days

Standards Certificate:: CE

Gross weight::: 585KG

After Warranty Service:: Video technical support

Marketing Type:: Hot Product 2019

Quick Details

Condition:: New

Plate Type:: rubber roller

Color & Page:: Multicolor

Voltage:: 380V

Place of Origin:: Guangdong, China

Brand Name:: LC

Model Number:: H-400M

Usage:: products printer

Dimensions(L*W*H):: 1980*1230*1800mm

Weight:: 392 KG

After-sales Service Provided:: Engineers available to service machinery overseas

body color:: green

Price Terms:: FOB shenzhen

Packing:: Wooden case

Lead Time:: Within 7 days

Standards Certificate:: CE

Gross weight::: 585KG

After Warranty Service:: Video technical support

Marketing Type:: Hot Product 2019

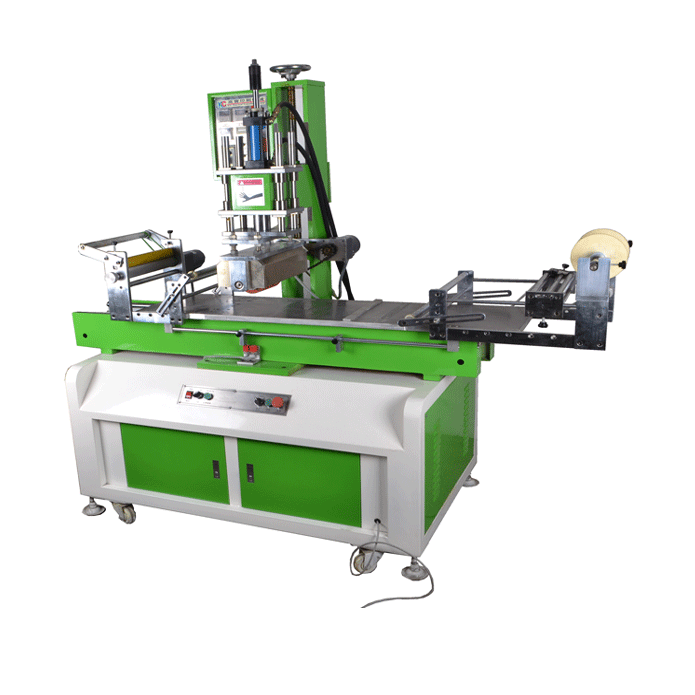

H-TC400M flat and surface heat transfer printing machine

Product Description

Thermal transfer printing on plastic materials is a special printing process, which is divided into two steps. First, the pattern to be transferred is printed on the PET film or BOPP film with a gravure printing machine, because the gravure printing machine is very easy. Multi-color printing with high aesthetics is achieved, and the pattern colors on the film are very rich and bright. Second, use a thermal transfer machine to transfer the pattern on the PET or BOPP film to the surface of the plastic product. Since the thermal transfer machine only needs a lower temperature and less pressure to achieve the transfer, the level loss of the graphic and text is very small. few.
Heat transfer film is usually outsourced to a specialized gravure printing machine factory, while the heat transfer process is completed by a special heat transfer machine. The thermal transfer machine uses the principle of heat and pressure, uses a silicone roller or a flat silicone plate as a source of pressure and heat, presses the thermal transfer film tightly on the surface of the product and keeps it in contact for a period of time, the thermal transfer film is The pattern is completely transferred to the product.
The thermal transfer printing process is widely used in the printing of plastic containers, especially hoses, cups and barrels. In terms of color expression, the thermal transfer printing machine leaves a very deep impression on people.

Stamping Head drive	Hydraulic -drive
Foil collecting method	Morot-drive , Collecting time adjustable
Temperature controlling	Heating tube heat up,Automatically temperature controlling,temperature free setting
Size of Roller	Width: 400mm, Diameter: 125mm
Press adjustment way	Up-down of Stamping head
Working table	Micro-adjustment device
Usage	1.Suitable for Plastics thermal transfer ,Woodware thermal transfer machine,stamping, Plastics Bronzing ,Glass and metal Heat transfer 2. Hydraulic structure design, the transfer process more stable, the pressure more evenly. You can transfer flat products, on the bench fixture can transfer the installation of a round face, round cups and other products. Transfer machines and hot stamping machine is not essentially different, generally considered: the source of the pressure roller are machine heat transfer machine, the silica gel plate for the source of the pressure of the machine is hot stamping machine. Heat transfer machine can be used thermal transfer film, hot stamping foil can also be used by the necessary transformation, heat transfer machine can be installed copperplate roller to achieve the stamping process. The trip around the table to dynamically adjust for different length transfer products; Roller width 400mm; Suitable for all kinds of plastic, glass, coating metal surfaces, wood, ceramic and other material parts.
Technical Parameter	1. Length of Rubber Roller: 400mm 2. Working table area: 1000 x 450 mm 3. Max pressure:1000 Kg 4. Up-and down distance: 80 mm 5. Table Stroke : 600 mm 6. Heat wattage: 3000 W 7. Foil feed: Motor Drive 8. Temperature range: 0 - 400oC 9.Net Weight :586 Kg 10. Outer dimension:1500 x 730 x 2000 mm 11. Max stamping diameter: 200mm.
Advantage	1, The program controller, easy to operate; Uniform heat transfer, plastic roller rotation,; 2. Suitable for large-area stamping; plane or cylinder heat transfer can be achieved by installing a different fixture; 3, High-precision photoelectric cell tracking control for easy positioning thermal transfer; 4, Non-location requirements of stamping using a timed feeder by the length of the rolls can be flexibly adjusted; 5, Adjustable worktable, easy to transfer the workpieces of different lengths; 6, The transfer pressure, temperature, speed can be based on different material for the flexible adjustment; 7, The nose height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products; 8. Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor; 9. Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect.

About foil stamping

1. What is Hot foil stamping machine ?

The hot stamping machine is a special packaging and printing equipment that uses heat and pressure to transfer the metal coating on the foil film to the product. It is widely used in paper, plastic, leather, glass, wood and other products

2 . Types of hot foil stamping machines.

According to the power source of the hot stamping machine to generate pressure, it can be divided into manual hot stamping machine, pneumatic hot stamping machine, hydraulic hot stamping machine and electric hot stamping machine. According to the degree of automation of the hot stamping machine, it can be divided into: semi-automatic hot stamping machine and automatic hot stamping machine

3. Foil stamping and heat transfer printing

Hot stamping and thermal transfer are closely related and difficult to distinguish on many occasions. Generally speaking, machines that use anodized aluminum can be called hot stamping machines, machines that use printed transfer films are called heat transfer machines, and machines that use heat transfer films are usually Photoelectric switches will also be installed to identify the pitch points of the thermal transfer printing film to achieve the positioning function! Some people also use whether the ironing head is a flat plate or a rubber roller to distinguish between a hot stamping machine and a heat transfer machine. Obviously, it is also difficult to distinguish them in terms of the applicability of anodized aluminum and heat transfer films!

4. Hot stamping machine operating system

The ordinary hot stamping machine adopts the microcomputer control system , the high-end hot stamping machine and automatic hot stamping machine uses the PLC to carry on the control, specially the servo control system hot stamping machine or the automatic hot foil stamping machine, uses the PLC control system quite commonly.

5. Hot stamping machine movement characteristics

The actions of the hot stamping machine mainly include the entry and exit and rotation of the worktable, the rotation of products and fixtures, the up and down and rotation actions of the ironing head, and the conveying and unloading actions of the products of the automatic hot stamping machine. Most of these actions are controlled by pneumatics, and a few are controlled by hydraulics. Those that require precise control are driven by motors or servo motors. As the market continues to improve the quality of hot stamping, various automatic hot stamping machines controlled by precision instruments have emerged!

6. How to evaluate the quality of the hot stamping machine?

Hot foil stamping machine technology content is low, more and more enterprises began to produce and sell hot stamping machines, hot stamping machines of uneven quality, how to evaluate the quality of hot stamping machine is essential. As the majority of brand-name hot stamping machine is not sold through the network, so, through Alibaba sales of hot stamping machines are low-end hot stamping machine.

1) Design of the factory means: a special design department of the enterprise quality is more reliable. China has 70% of the hot stamping machine manufacturing enterprises and no special design department, the development of new products on-site assembly by the basic, which is extremely adverse to the standardization of production machinery;

2) Processing means: CNC processing costs are higher, but the parts manufactured high precision; visit the factory must inspect whether the factory has CNC machining capacity;

3) Materials Selection: Material selection is very important. Now fierce competition, the vast majority of domestic factories in the selection of the above efforts, only the brand enterprises are willing to insist on the selection criteria above;

7. How to choose hot stamping die?

There are two main types of hot stamping plates, one is made by engraving copper plates, and the other is made by pressing silicone rubber. Copper plates are often used for printing substrates with softer materials, such as paper, leather, wood, and cloth; silicone plates are often used for printing substrates with relatively hard materials, such as glass, ceramics, plastics, and metals. For cold stamping processes, silicone rubber plates are also commonly used.
