Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANXIN
-
Model Number:
-
GFQ
-
Voltage:
-
380V/220V 50HZ
-
Dimension(L*W*H):
-
3000*1500*1950mm
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Speed:
-
20-120pcs/min
-
Bag length:
-
50-2000mm (different model)
-
Bag width:
-
25-1600mm (different model)
-
Color:
-
Customized
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
flat bag/t-shirt bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANXIN
-
Model Number:
-
GFQ
-
Voltage:
-
380V/220V 50HZ
-
Dimension(L*W*H):
-
3000*1500*1950mm
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Speed:
-
20-120pcs/min
-
Bag length:
-
50-2000mm (different model)
-
Bag width:
-
25-1600mm (different model)
-
Color:
-
Customized
Product Application
This machine is applied to manufacturing and printing the colored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double servo (step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.
|
GFQ SERIES FLAT BAG CUTTING MACHINE SPECIFICATION
|
|
|
|
|
|
|||||
|
Model
|
GFQ-600
|
GFQ-800
|
GFQ-1000
|
|
width of sealing &cutting(mm)
|
580
|
780
|
980
|
|
length of sealing & cutting(mm)
|
700
|
1200
|
1600
|
|
speed of bag-making (pc/min)
|
(60-120)
|
(60-120)
|
(60-120)
|
|
Number of strip(pc)
|
1
|
1
|
1
|
|
Power of motor(kw)
|
1.1
|
1.5
|
1.5
|
|
Weight(kg)
|
700
|
850
|
1100
|
|
Outine dimension(L x w x h)mm
|
3200×1200×1700
|
3500 x 1300 x 1800
|
3800 x 1800 x 2100
|
|

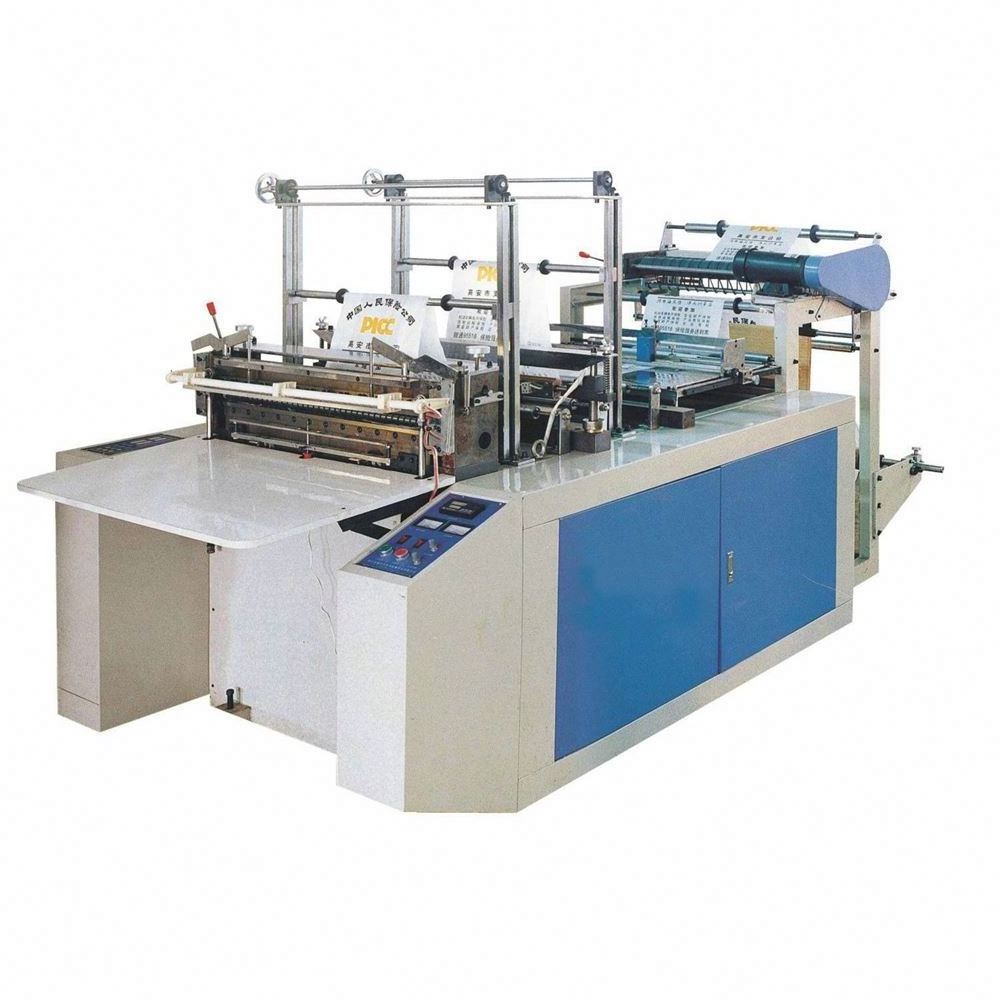

GFQ SERIES FLAT BAG CUTTING MACHINE WHOLE VIEW & DETAIL
|
|
|
|
|||
Single Layer Hot Sealing Bar(with rotary rubber roller)
The sealing knife with rotary rubber roller enhance the service life.
Controller Face
Two hot sealing knife controlled independently by automatic temperature controller
Traction and Cold Cutting Parts
Traction roller driven by step/servo motor system, with high precision
The Cold cutting knife use fast-steel, with long service life.
Feed Parts(siamesed and independent for chioice)
Servo Motor System
Yaskawa/Panasonic/Chinese Brand
Upgraded Electric System
Omron Temperature
Yaskawa/Panasonic/Delta Inverter
Schneider Electric parts
Upgrade Operation System
Mitsubishi PLC Controller
Touch screen or others
Conveyor
Dot cutting knife for rolling bag
Winder for rolling bag
Flat Bag
No printing T-shirt Bag
Rolling bag with paper core
need dot cutting knife and winder
Film Blowing Machine Workshop
For Single/Double/Three Layer PE Film Blowing Machine Production
For PP Film Blowing Machine Production
For PVC Film Blowing Machine Production
Bag Making Machine Workshop
T-shirt Bag Making Machine Production
Zipper Bag/BOPP Bag/Side sealing Bag Making Machine
Others Bag Making Machine
Printing Machine Workshop
2/4/6/8 Color Flexo Printing Machine (normal/middle/high speed)
Gravure Printing Machine (normal/middle/high speed)
PE Wrap Film Packing
It suitable for full container loading
Wooden Case Packing
It suitable for LCL loading
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
