Quick Details
-
Beam Angle(°):
-
45
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
12V/24V/220
-
Lamp Luminous Flux(lm):
-
500
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-18 - 45
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ONN-M3S
-
Brand Name:
-
ONN
-
Item Type:
-
Machine Tool Working Lamps
-
Certification:
-
CCC CE ROHS FCC
-
Lamp Body Material:
-
Aluminum
-
Black Hose Length:
-
500mm (can customize)
-
Power:
-
4.5W
-
Lifespan:
-
50000 h
-
Central Lux:
-
70cm:650-750Lux
-
Beam angle:
-
45°
-
Mounting:
-
Magnetic base
-
Lamp Diameter:
-
57mm
Quick Details
-
Color Temperature(CCT):
-
2700-3200K / 4000-4500K / 5500-6000K
-
Warranty(Year):
-
2-Year
-
IP Rating:
-
IP20
-
Beam Angle(°):
-
45
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
12V/24V/220
-
Lamp Luminous Flux(lm):
-
500
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-18 - 45
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ONN-M3S
-
Brand Name:
-
ONN
-
Item Type:
-
Machine Tool Working Lamps
-
Certification:
-
CCC CE ROHS FCC
-
Lamp Body Material:
-
Aluminum
-
Black Hose Length:
-
500mm (can customize)
-
Power:
-
4.5W
-
Lifespan:
-
50000 h
-
Central Lux:
-
70cm:650-750Lux
-
Beam angle:
-
45°
-
Mounting:
-
Magnetic base
-
Lamp Diameter:
-
57mm

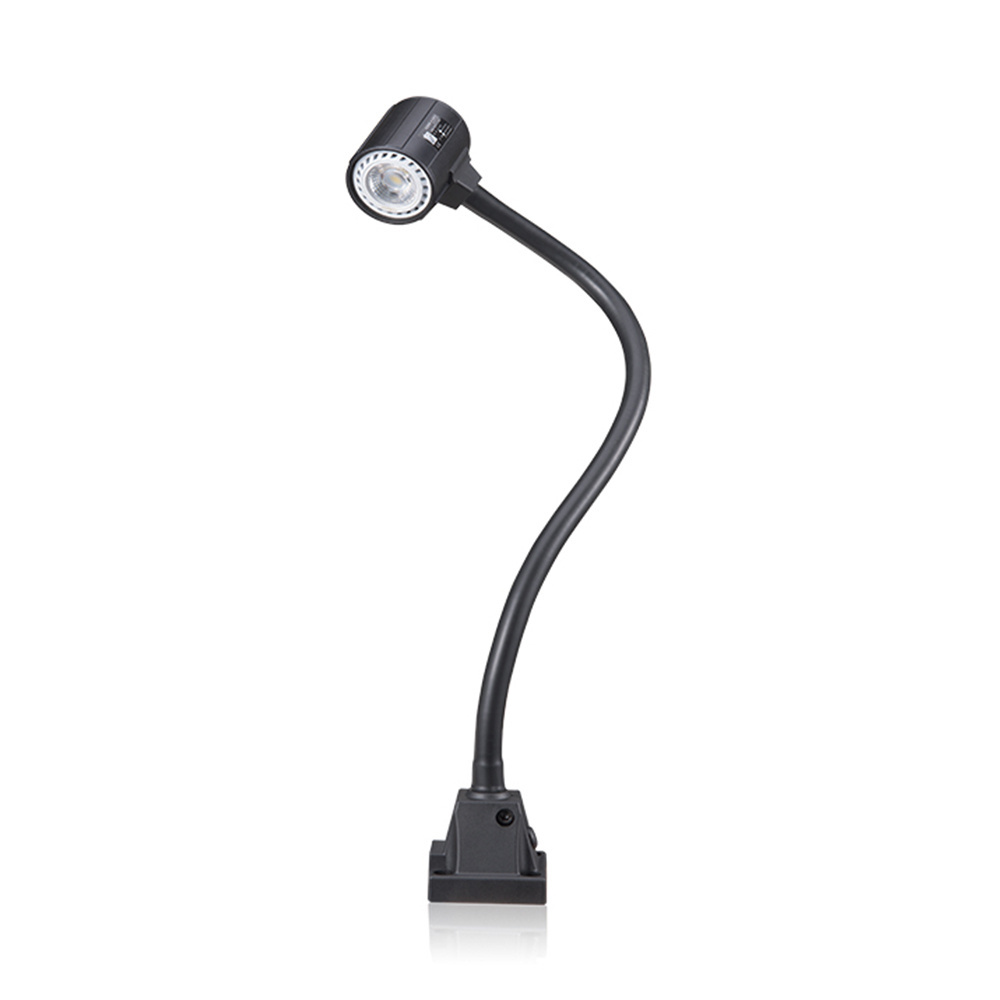

ONN-M3S 4.5V 24V/110/265V Flexible Gooseneck Arm cnc led light for machine tools cnc light
Product Description
High Power
High power COB beads
Lamp Holder
Aluminum lamp head
Switch
On/ Off switch
Joint
Special Transition block, stronger and exquisite
Metal hose
Flexible hose with teflon casing, 360° adjustable
Installation
Fixed with screws, easy to
install and remove
Features
1. ONN-M3S is a small and convenient LED work light that is ideally designed for precision work.
2. With 455mm flexible gooseneck arm, very convenient to position lamp and control the lighting direction.
3. Use 5W COB LED chip, 400lm output, long lifetime and energy saving.
4. Variety of input voltages is optional to fit different applications
2. With 455mm flexible gooseneck arm, very convenient to position lamp and control the lighting direction.
3. Use 5W COB LED chip, 400lm output, long lifetime and energy saving.
4. Variety of input voltages is optional to fit different applications
5. AC100-240V 50/60Hz, AC/DC12V, AC/DC24V.
Specifications
|
Power
|
4.5W
|
Color temperature
|
2800-3200K, 4000-4500K, 6000-6500K
|
|
Input voltage
|
AC100-240V(50/60Hz), AC/DC24V
|
Material
|
Aluminum housing, PMMA lens, PA+15%GF base
|
|
Lumen efficiency
|
414 lm( 92 lm/w)
|
Lifetime
|
50,000 hours
|
|
CRI
|
>80
|
Working temperature/ humidity
|
-20~45℃ / 10%-90%
|
|
IP rating
|
IP20
|
Storage temperature/ humidity
|
-20~60℃ / 10%-90%
|
|
Beam angle
|
45 degree
|
Installation
|
Fixed by screws
|
Ordering Code
|
ONN
M3S
-
B
1
-
500
-
4.5
W
|
|
|
|
1 2 3 4 5
|
|
|
|
1. Model
|
M3S
|
|
|
2. Input Voltage
|
B: AC/DC24V C: AC100-240V
|
|
|
3. CCT.
|
1: 6000-6500K(cool white) 2: 4000-4500K(natural white) 3: 2800-3200K(warm white)
|
|
|
4. Length of hose
|
500: 500mm Customized length available
|
|
|
5. Power
|
4.5W
|
|
Product Size Drawing
Application
CNC machine work: engraving machine, EDM machine etc.
Assembly and repair work.
Assembly and repair work.
Point lighting.
Laboratories.
Laboratories.
