Quick Details
-
Model Number:
-
KCD1/KCD3/KCD4/KCD6
-
Max. Current:
-
6A\20A
-
Mechanical Life:
-
10000 Cycles
-
Function:
-
ON OFF/ON-OFF-ON/ON-ON etc
-
Type:
-
KCD1/KCD3/KCD4/KCD6
-
Certificate:
-
CQC,CE,CB,ROHS
-
Lamp color:
-
Neon Lamp
-
Housing color:
-
Custom-Made
-
Material:
-
PA/PC
-
Color:
-
Red Yellow Green Blue White
-
Product type:
-
Automotive Rocker Switches
-
Item:
-
rocker switch
-
Certification:
-
CQC,CE,CB,ROHS
Quick Details
-
Max. Voltage:
-
125V\250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANHEDA
-
Model Number:
-
KCD1/KCD3/KCD4/KCD6
-
Max. Current:
-
6A\20A
-
Mechanical Life:
-
10000 Cycles
-
Function:
-
ON OFF/ON-OFF-ON/ON-ON etc
-
Type:
-
KCD1/KCD3/KCD4/KCD6
-
Certificate:
-
CQC,CE,CB,ROHS
-
Lamp color:
-
Neon Lamp
-
Housing color:
-
Custom-Made
-
Material:
-
PA/PC
-
Color:
-
Red Yellow Green Blue White
-
Product type:
-
Automotive Rocker Switches
-
Item:
-
rocker switch
-
Certification:
-
CQC,CE,CB,ROHS
Product Description
Used in the fields of electronic products, household appliances and more
Product details
| Function | ON OFF/ON-OFF-ON/ON-ON etc |
| Type | KCD1/KCD3/KCD4/KCD6 |
| Certificate | Rohs,CE,CQC,CB |
| Lamp color | White,Orange,Red,Blue,Green |
| Housing color | CUSTOM-MADE |
| Material | PA/PC |
| Color | Red,Green |
| Product type | Rocker Switch |
| Item | KCD Rocker switches |
| Rating | 16A 250VAC / 20A 125VAC |
| Product Keywords | 2 rocker switch plate covers,rocker switch autozone |
Features:
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
Product Specifications
| Specification of Rocker Switch | |||
| Rating | 16A/250V AC, 20A/125V AC | ||
| Rated Load | 2/8A 250V AC | ||
| Contact Resistance | ≤50MΩ | ||
| Dielectric Intensity | ≥1500V AC/min | ||
| Withstand Voltage | 1500V AC/min | ||
| Temperature | -25~85°C | ||
| Insulation Resistance | ≥100MΩ | ||
| Life | ≥10,000 cycles | ||
| Pins | 2 | ||
| Function | ON-OFF | ||
| Illumniated | 220V Neon Lamp | ||
| APPROVALS | |||
| CE | CQC | Rohs | |

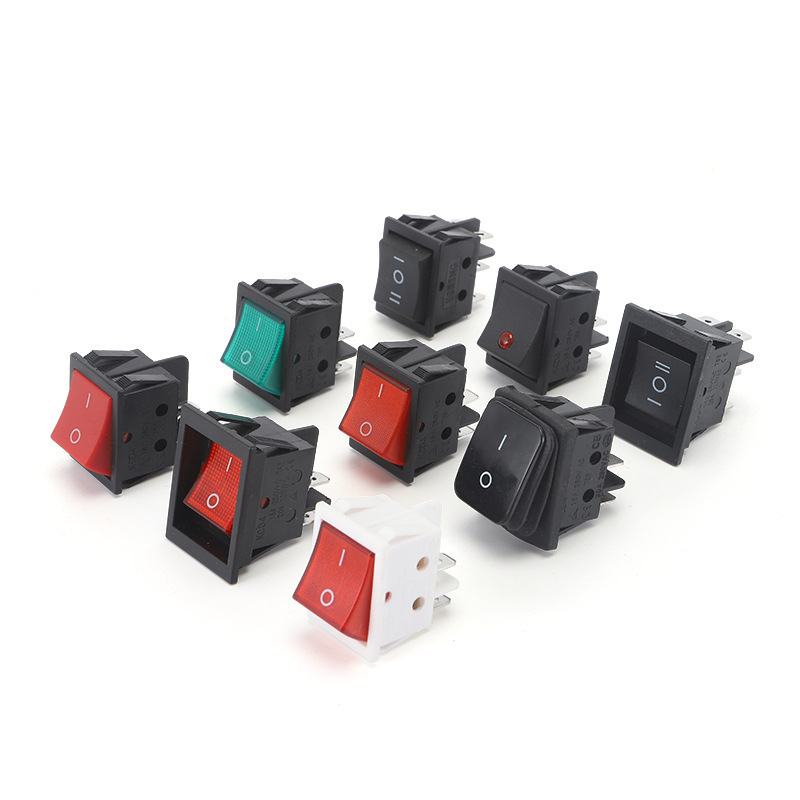

Detailed Images
|
||
| Material Details | Part | Material |
| Base Plastic | Nylon | |
| Button Plastic | PA66/ PC | |
| Terminal | Brass(tin plated) | |
| Contact | Compound silver/ Copper | |
| Spring | Tungsten steel | |
| Waterproof Cap | PVC ( If you required) | |
| Mount | Snap in | |
Application:Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc |
||
| Terminal Type | ||||||||
| A | 4.8*0.8 | G | 6.3*0.8 | M | 2.5*0.5 | |||
| B | 4.8*0.8 | H | 6*0.8 | N | 5.6*0.5 | |||
| C | 3*0.8 | I | 3.8*0.8 | P | 2.8*0.5 | |||
| D | PC | J | 2.7*0.5 | |||||
| E | PC | K | 6.3*0.8 | |||||
| F | 6.3*0.8 | L | ||||||
