Quick Details
-
Brand Name:
-
TBT
-
Model Number:
-
TBTTSZ
-
Product name:
-
10 KN Full Automatic Strain controlled triaxial test apparatus
-
Operate:
-
English version operation panel and instruction manual
-
Usage:
-
triaxial testing apparatus
-
Origin:
-
Nanjing
-
Type:
-
Automatic
-
Capacity:
-
0-30KN
-
Specimen size:
-
39.1mm,61.8mm,101mm
-
Package:
-
Standard Wooden Case
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Power:
-
Hydraulic
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TBT
-
Model Number:
-
TBTTSZ
-
Product name:
-
10 KN Full Automatic Strain controlled triaxial test apparatus
-
Operate:
-
English version operation panel and instruction manual
-
Usage:
-
triaxial testing apparatus
-
Origin:
-
Nanjing
-
Type:
-
Automatic
-
Capacity:
-
0-30KN
-
Specimen size:
-
39.1mm,61.8mm,101mm
-
Package:
-
Standard Wooden Case
Full Automatic triaxial Test Apparatus / T-BOTA Soil Bench type Triaxial Testing Machine

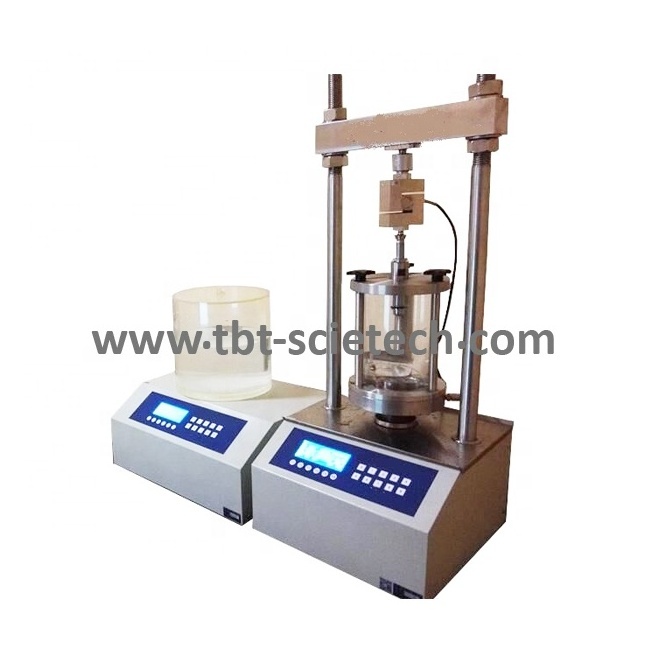

10 KN Full Automatic Strain controlled triaxial test apparatus
Full Automatic triaxial Test Apparatus adopts medern latest scientific technology. that combines machiney, electron technology, automatically controlled technology. transducer automatic detection technology and computer into one body. One apparatus and multi functions. Basic composition can carry out stress and strain unconfining test(UU)(CU)and(CD) compression shear test. If allocate different test container and controlled mudule. it can carry out more test out more test such as KO consolidation, static confining pressure coefficient, multi stress path triaxial, tension, elastic modulus, CBR etc. If allocate consolidation module, it can carry out consolidation test loading grade by guade or continuous adding load. If allocate dynamic module, the system can carry out full automatic controlled dynamic triaxial test.
Main Specifications
Specimen diameter: 39.1, 61.8, 101 mm;
Axial pressure: 0-30 KN;
Ambient/back pressure: 0-2 MPa;
Pore pressure: 0-2 MPa;
Volume change:0-50 ml;
Shear rate:0.0001-4.8 mm/min;
10 KN Full Automatic Strain controlled triaxial test apparatus
Package
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Delivery time
---within 2weeks after payment, we will act fast and before shipment, we will provide product photo, packing photo to customer’s checking
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
---Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
- --Normally, it will take around 3--5days from China to destination country via air.
Payment
---T/T, Western Union, Paypal, or negotiable, ect.
How to order products?
---Send inquiry to us or contact with us via skype or trademanager
---Confirming the model, specification, price, qty, delivery time and payment method
---Sending invoice to customer
---Customer makes payment and send us receipt
---Arranging production
---Sending products picture to customer after the production is ready
---Shipping products to customer
Warranty
---1 year quality assurance
